Modular Panel PC comes with 10.4 inch 800 x 600 LCD panel and projected capacitive touch screen with IP65 rated aluminum front bezel, detachable Celeron N3150 Quad Core 1.6GHz embedded PC, 4GB DDR3L, 64GB SSD, 12~24V DC power input, & 0 to 50 degree C wide range working temperature.
Loading...
10

PCM8210

15

PCM8215

PC90104

  • Rugged metal chassis and IP65 rated aluminum front bezel
  • 10.4 inch 800 x 600 LED backlight monitor
  • Detachable Celeron N3150 Quad Core 1.6GHz embedded system
  • Projected capacitive type multi-touch screen monitor
  • 3 COM ports and 5 USB ports
  • 1 mini PCI-Express + 1 mini SATA-Express socket
  • 12~24V DC power input with AC adapter
Availability: In stock
SKU
PC90104
Email
Modular Panel PC with 10.4 inch 800 x 600 capacitive touch screen and detachable Celeron N3150 Quad Core 1.6GHz embedded PC, has rugged metal chassis with IP65 rated aluminum front bezel.
Material
Stainless steel chassis
IP65 rated aluminum front bezel
LCD panel
Size: 10.4 inch
Max. Resolution: 800 x 600
Brightness: 350nits
Viewing Angel: 80"
Color: 16.2M
MTBF (hrs): 50,000
Touch screen
Projected capacitive type touch screen monitor
System
CPU: Celeron N3150 Quad Core 1.6GHz CPU
Memory: 4GB DDR3L
SSD: 2.5” 64GB SSD
Wireless
Wireless Module
Expansion Slot
1 x mini-PCIe socket
1 x miniSATA Express socket
Mounting
Panel / VESA 100 mount / Wall / Front (In wall)
Connector
3 x COM, 1 for RS232/422/485, 2 for RS232
5 x USB, 3 for USB 2.0, 2 for USB 3.0
2 x PCIe Gigabit Ethernet ports (RJ-45)
1 x HDMI 1.4a
1 x DB-15
1 x Line-out, Phone Jack
Power supply
12~24V DC power input with AC adapter
Power Consumption: 34W
OS
Win 10

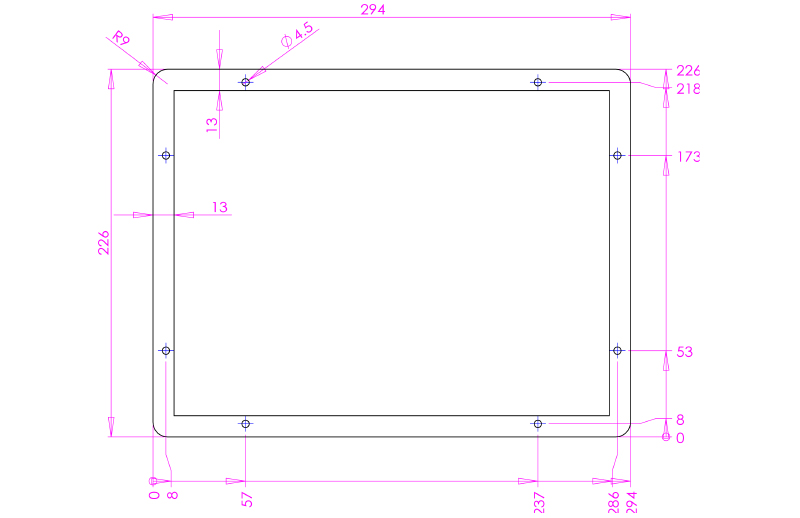

Dimension
11.57”(W) x 2.81”(D) x 8.90”(H)
Environmental
Operating: 0°C to 50°C (32°F to 122°F)
Storage: -30°C to 80°C (22°F to 175°F)
Relative humidity: 10% to 90%, @40°C, non-condensing
Vibration: 5-17Hz, 0.1" double amplitude peak to peak,
1.5G acceleration peak to peak
Shock: 10G acceleration peak to peak (11ms)
Certification
CE, FCC Class B
PC90104:
10.4” 800 x 600 industrial fanless Panel PC with projected capacitive type touch screen, Celeron N3150 Quad Core 1.6GHz CPU, 4GB DDR3 SODIMM memory, 12~24V DC power input, QPA metal chassis with IP65 rated aluminum front bezel.
Document
Description
Download Link
file iconPC90104-SP.pdf
Spec Sheet
file iconPC90XXX-UM.pdf
User Manual
  • PC90104
    Panel PC with modular design
    10.4" 800x600 projected Capacitive touch screen
    Celeron N3150 1.6GHz Quad-Core CPU
    4GB DDR3L memory
    500GB hard drive
    IP65 rated aluminum front bezel
    panel / VESA mount ready
