The KD82174 is a 17.3" 4K ultra-short-depth rackmount LCD console drawer supporting 3840 x 2160 native resolution, 16.7 million colors, DP 1.2 video input, and 100/240 VAC power input in a 1U high ultra-short depth drawer design of only 400mm in depth. The rack console features a 104-key keyboard with a touchpad, built-in dual stereo speakers, and a 2-point lock. The KD82174 is available as a stand-alone console or with an optional 8-port 4K HDMI KVM switch. The KVM mounts into the rear of the 1U chassis and allows users to control up to eight servers from one keyboard, mouse, and monitor setup.
Loading...
1U 17.3

KD80174

KD81174 1U 17

KD81174

KD82174

  • 17.3" 4K rackmount LCD console drawer
  • Supports 3840 x 2160 native resolution
  • Display Port 1.2 video input
  • 104-key keyboard with touchpad or trackball
  • Option for Resistive or Projected Capacitive touchscreen
  • Option for integrated 8-port 4K HDMI KVM switch
  • Ultra short-depth drawer design of 15.7" (400mm)
  • Auto-sensing 100 to 240VAC, 50 / 60Hz power input
  • Option for 12V / 24V / 48V / 125V DC power input
Availability: In stock
SKU
KD82174
Email

17.3" 3840 x 2160 4K rack LCD console with DP 1.2 video input, 104-key keyboard with touchpad, 100/240VAC power input, and a 1U high 15.7" ultra short-depth chassis.

Construction
Heavy-duty steel
LCD panel
Size: 17.3 inch
Max Resolution: 3840 x 2160@60Hz
Brightness (cd/m²): 400
Contrast Ratio (typ.) : 1000:1
Colors: 16.7 M, 8-bit
Viewing Angle (H/V): 178° x 178°
Response Time (ms): 16
Dot Pitch (mm): 0.0995
Display Area (mm): 382.12H x 214.94V
Surface Treatment: Anti-glare
Surface Hardness: 3H
Backlight: LED
MTBF (hrs): 15,000
Keyboard & Pointing Device
104-key keyboard with 2-button touchpad
Option for keyboard with trackball or SUN keys
Touch Screen (Option)
Resistive 1-pt touch screen - USB port
Projected Capacitive 10-pt touch screen - USB port
Video Input
Display Port 1.2 video input
Option for HDMI 2.0 or 3G-SDI input
Integrated 8-Port 4K
KVM Switch (Option)
KVM Port: 8
Connector: HDMI 2.0 + USB-B ( Video + KB / MS )
Resolution: 16 : 9 - max. 3840 x 2160@60Hz / 16 : 10 - max. 1920 x 1200@60Hz / 4 : 3 - max. 1600 x 1200@60Hz
Local Console: 1 x local console
KVM Cables (Option)
6ft HDMI-USB KVM cable (CB-HDMI4K) or 6ft DP-USB KVM cable (CB-DP)
Speakers
Built-in dual stereo speakers
Front Panel Control
Power on/off switch
OSD (On Screen Display)
Mounting Distance
Single Console Drawer: 16.1~ 25.2 inch (410 ~ 640mm)
Console w/ KVM Drawer: 16.1 ~ 31.5 inch (490 ~ 800mm)
Power Supply
Input: Auto-sensing 100 to 240VAC, 50/60Hz
Consumption (Console / KVM):
Screen On: Max. 21W / Max. 38W
Power Saving Mode: Max. 2W / Max. 18W
Option for 12V / 24V / 48V / 125V DC input
Casing Color
Black front panel (RAL 9005)
Weight
Single Console: 19.1 lb / 8.7 kg
Console w/ KVM: 20.9 lb / 9.5 kg

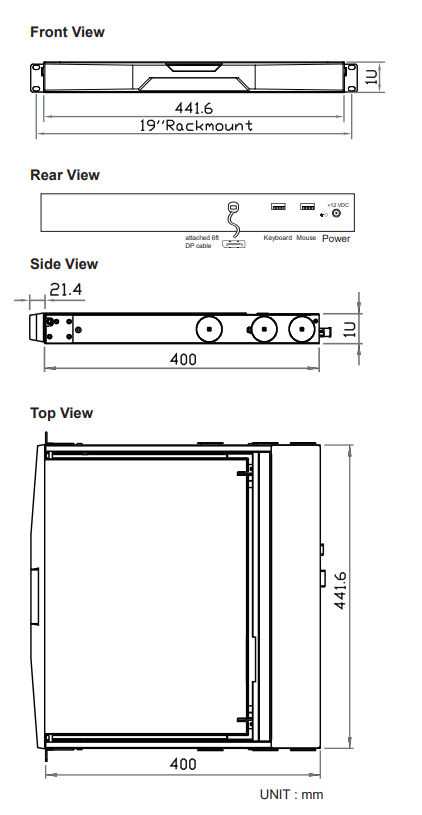

Dimension
Single Console: 17.4"(W) x 15.7"(D) x 1.73"(H)
Console w/ KVM: 17.4"(W) x 19.29"(D) x 1.73"(H)
Environmental
Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Altitude (Operating / Non Operating): 16,000 ft / 40,000 ft
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Compliance
CE, FCC, RoHS, TAA

KD82174:
17.3" 4K rackmount LCD console drawer, 3840 x 2160 native resolution, Display Port 1.2 video input, 100/240VAC power input, 1U high 15.7" ultra short-depth rackmount drawer, Black color.

Document
Description
Download Link
file iconKD82174-SP(V1-2).pdf
Spec Sheet
file iconKD82174-UM(V1-2).pdf
User Manual
  • KD82174
    17.3" 4K rackmount LCD console drawer
    Supports 3840 x 2160 native resolution
    Display Port 1.2 video input
    104-key keyboard with touchpad or trackball
    Option for Resistive or Projected Capacitive touchscreen
    Option for integrated 8-port 4K HDMI KVM switch
    Ultra short-depth drawer design of 15.7" (400mm)
    Auto-sensing 100 to 240VAC, 50 / 60Hz power input
    Option for 12V / 24V / 48V / 125V DC power input
