Industrial PC integrated Atom D525 CPU into a compact and rugged enclosure with an -10°C to 55°C extended working temperature.
Loading...

FES8621

  • Aluminum alloy rugged micro box
  • Fan less embedded system
  • Atom D525 1.8GHz dual core processor
  • Extended working temperature range from -10°C to 55°C
  • VGA display port, dual LAN and 3 COM port
  • 1 mini PCI-E slot & 1 internal USB WiFi mounting space
  • Wdie Range 9~34VDC power input
$658.00
Availability: In stock
SKU
FES8621
Email
Embedded computer comes with Atom D525 CPU, VGA port, 3 x COM port, 9 to 34 DC power and 1 mini PCIe slot, has rugged aluminum chassis and extended -10 to 55 degree C working temperature.
Construction
Aluminum extrusion and heavy-duty steel, IP40
Embedded board
CPU Type: Atom D525 1.8GHz dual core processor
Chipset: ICH8M chipset
Memory: DDR3 800 SODIMM x 1, Max. 4 GB
Watchdog time: programmable WDT from 1 to 255 seconds
Video input
VGA video input
Expansion slot
1 x mini PCI-E expansion slot
1 x internal USB WiFi mounting space
Drive bay
1 x 2.5 inch SATA hard drive or SSD
1 x CompactFlash
I/O Port (standard)
3 x COM port, 1 for RS-232/422/485, 2 for RS-232
4 x USB2.0
2 x Ethernet ports, 10/100/1000Base-TX
1 x Audio port: Line-out, Mic-in
1 x VGA
1 x SMA type connector and opening for antenna
1 x VDC power input connector
1 x ATX power switch
Power supply
DC 9~34V 42.5W power input
System Support
Windows XP Embedded, WinCE, Linux

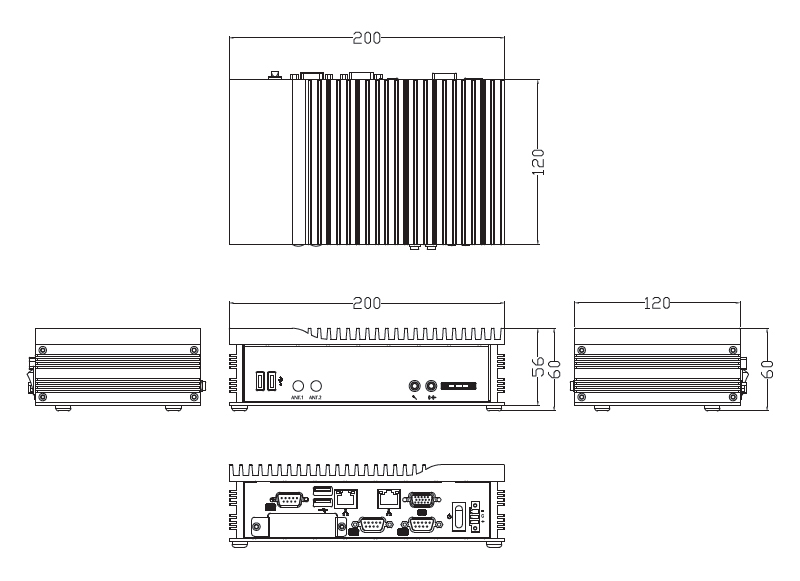

Dimension
7.87"(W) x 2.2"(H) x 4.72"(D)
Weight
4.36lbs
Color
Silver-Black
Environmental
Temperature
Operation: -10°C ~ 55°C
Storage: -20°C to 80 °C
Humidity: 10~90%, non-condensing
Vibration: 2G, 5~500Hz, X,Y,Z directions
Certification
CE / EN60950 compliance

FES8621
Fan less embedded computer with Atom D525 1.8GHz Dual-Core CPU, up to 4GB DDR3-800 SODIMM memory, 3 COM, 4 USB, 1 x 2.5 inch SATA HDD
1 x mini PCI Express expansion slot, dual antenna opening, VGA display, silver-black color. Option for mounting bracket.
Price start from:$658.00

Document
Description
Download Link
file iconFES8621-SP.pdf
Spec Sheet
file iconFES8621-UM.pdf
User Manual
  • FES8621
    Fan less embedded box
    Atom D525 1.8GHz Dual-Core CPU
    2GB DDR3 SODIM memory up to 4GB
    250GB SATA hard drive
    VGA video out port
    Option for mounting brackett
    Steel case with aluminum heat sink
    12VDC power input with AC adapter
    -10 to55 degree C working Temperature
    Starting at:
    $658.00
FES8621
$658.00

Wide range working temperature and low power consumption rugged embedded PC

This rugged embedded controller has an excellent cooling and thermal design, with a wide operating temperature range of -10°C to +50°C. Acnodes developed the FES8621 with versatility and flexibility in mind and offers an additional internal SATA HDD, four USB ports as well as extra internal USB WiFi to fulfill the varying needs of embedded applications.

The FES8621 rugged fanless embedded PC is equipped with an Atom D525 1.8GHz dual core low power processor and an ICH8M chipset. Its memory contains one DDR3 800 SODIMM and a max of 4 GB. It features 3 COM ports and 4 USB 2.0 ports. For storage, it includes a one 2.5 inch SATA HD and one front open Compact Flash slot. To address demand for rich network and wireless connection (Wi-Fi or 3G/GPRS), the FES8621 is also supplied with one mini PCI Express slot and one internal USB WiFi mounting space for expansion. The system also supports VGA video outputs.

The embedded system features a flexible range of operational temperatures: Operation: -10°C ~ 55°C Storage: -20°C to 80 °C Humidity: 10~90%, non-condensing Vibration: 2G, 5~500Hz, X,Y,Z directions.

With an IP40 steel construction, the system can endure vibrations and the harsh industrial environments and prevent dirt and dust from damage. make it to reliably operate in any space-limited and outdoor environment, t his rugged unit meets Safety Agency requirements and has passed heavy industrial EMI/EMS testing, It is also equipped with a wide range of power supply which supports a 9V to 34V DC. The embedded PC’s fanless design allows for reliable and noiseless performance. At just 4.36 lbs, this small design is ideal for space constricted environments.

FES8621:
Fan less embedded computer with Atom D525 1.8GHz Dual-Core CPU, up to 4GB DDR3-800 SODIMM memory, 3 COM, 4 USB, 1 x 2.5 inch SATA HDD 1 x mini PCI Express expansion slot, dual antenna opening, VGA display, silver-black color. Option for mounting bracket.

References
What is an embedded computer?
An embedded system is a computer system that includes a specific function within a larger computerized system.

How to change ATX to AT power mode?
Locate jumper (JP1) inside the internal embedded system board. Once JP1 has been located, you will need to remove the jumper from the two pins. This will enable AT power mode (auto power) for the FES8621.
