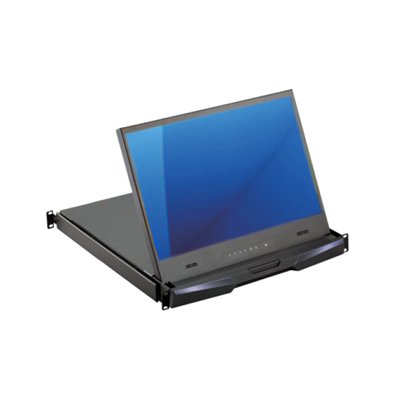

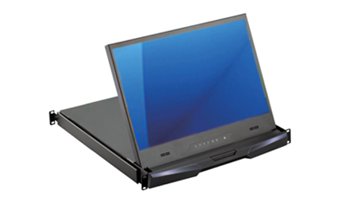

RPH1193
19" 1440 x 900 rackmount LCD monitor drawer with a 1000-nit high brightness display, VGA + DVI-D video input, and 1U high 19.7 inch short-depth rackmount drawer.
Key Features
- ✓1U high 18.1 inch depth rackmount drawer
- ✓19 inch 1440 x 900 widescreen LCD monitor
- ✓1000-nit high brightness display
- ✓VGA + DVI-D video input
- ✓Option for HDMI / BNC / Audio / 3G-SDI input
- ✓Option for Resistive type touch screen
- ✓External auto-sensing 100/240VAC power input
- ✓Option for 12V / 24V / 48V / 125V DC power input
High brightness rackmount console drawer with a 19 inch 1440 x 900 widescreen LED backlight LCD panel, 1000-nit high brightness display, VGA + DVI-D video input, and a 1U high 18.1 inch short-depth rackmount drawer. Option for HDMI / BMC / Audio / 3G-SDI input, Resistive type touch screen, and DC power input.
| Material | Heavy-duty steel |
| LCD Panel | Size: 19 inch Max Resolution: 1440 x 900 Brightness (cd/m²): 1000 Backlight: LED Colors: 16.7M Contrast Ratio (typ.) : 1000:1 Viewing Angle (H/V): 160° x 160° Active Area (mm): 408.24H x 255.15V MTBF (hrs): 30,000 |
| Touch Screen (Option) | Option for Resistive type touch screen |
| Video Input | VGA + DVI-D video input Option for HDMI / BNC / Audio / 3G-SDI input |
| Front Panel Controls | Power on/off switch OSD (on-screen display) |
| On Screen Control | Auto-Adjustment for contrast, balance, H-position, V-position, phase, brightness |
| Drawer Design | Solid bearing slide rails Mounting Distance: 18.5~27.6 inch (470~700 mm) |
| Power Supply | Input: Auto-sensing 100 to 240VAC, 50 / 60Hz Power Consumption: Max. 34 Watt, Standby 2 Watt Option for 12V / 24V / 48V / 125V DC power input |
| Environmental | Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Altitude: 16,000 ft, Operating 40,000 ft, Non-operating Shock: 10G acceleration (11ms duration) Vibration: 10~300Hz 0.5G RMS random vibration |
| Safety | CE, FCC |
| Weight | 28.5 lb / 13 kg |
| Dimension | 17.4"(W) x 18.1"(D) x 1.73"(H) *Casing depth will increase if video input or DC power option is selected |
This product does not have configurable options.
