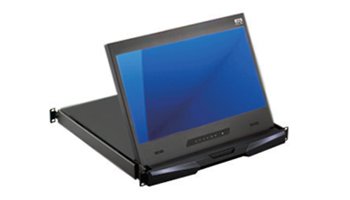

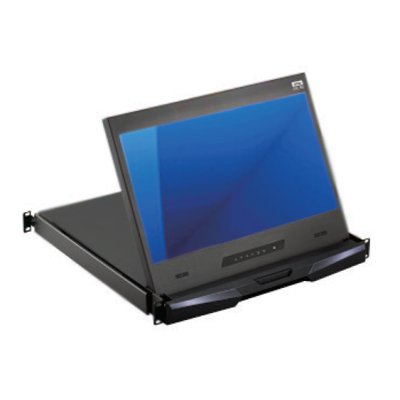

RPH1173
17.3" 1920 x 1080 Full HD LCD monitor drawer with a 1000-nit high brightness display and VGA + DVI-D video input in a 1U high 18.9 inch depth rackmount drawer.
Key Features
- ✓1U high 18.9 inch depth rackmount drawer
- ✓17.3 inch 1920 x 1080 Full HD industrial LCD monitor
- ✓1000-nit high brightness display
- ✓VGA + DVI-D video input
- ✓Option for HDMI + Audio or 3G-SDI input
- ✓Option for Resistive or Projected Capacitive type touch screen
- ✓External 100/240 auto-sensing AC power input
- ✓Option for 12V / 24V / 48V / 125V DC power input
High brightness sunlight-readable rackmount monitor drawer comes with a 17.3 inch 1920 x 1080 Full HD industrial LCD monitor, 1000-nit high brightness display, VGA + DVI-D video input, and a 1U high 18.9 inch short-depth rackmount drawer. Option for HDMI + Audio or 3G-SDI input, Resistive or Projected Capacitive type touch screen, and DC power input.
| Material | Heavy-duty steel |
| LCD Panel | Size: 17.3 inch Max Resolution: 1920 x 1080 Brightness (cd/m²): 1000 Contrast Ratio (typ.) : 600:1 Viewing Angle (H/V): 160° x 140° Display Area (mm): 381.888H x 214.812V Colors: 16.7M Backlight: LED MTBF (hrs): 50,000 |
| Video Input | VGA + DVI-D video input Option for HDMI + Audio or 3G-SDI input |
| Touch Screen (Option) | Option for Resistive or Projected Capacitive type touch screen |
| Front Panel Controls | Power on/off switch OSD (on-screen display) |
| Drawer Design | Solid bearing slide rails 2-position lock for security system Mounting Distance: 19.3 ~ 28.3 inch (490 ~ 720 mm) |
| Power Supply | Input: Auto-sensing 100 to 240VAC, 50 / 60Hz Power Consumption: Max. 39 Watt, Standby 2 Watt Option for 12V / 24V / 48V / 125V DC power input |
| Environmental | Operating Temperature: 0°C to 55°C Storage Temperature: -20°C to 60°C Relative Humidity: 5~90%, non-condensing Shock: 10G acceleration (11ms duration) Vibration: 10~300Hz 0.5G RMS random vibration |
| Safety | CE, FCC |
| Weight | 24.2 lb / 11 kg |
| Dimension | 17.4"(W) x 18.9"(D) x 1.73"(H) *Casing depth will increase if video input, touch screen, or DC power option is selected |
