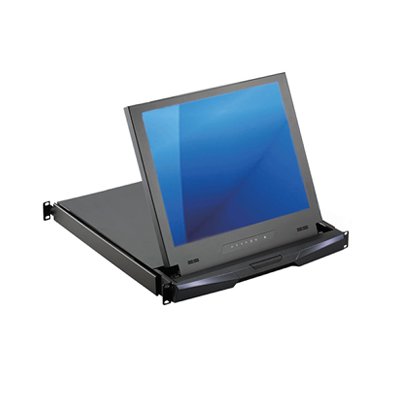

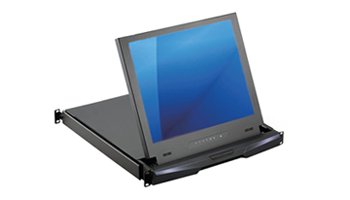

RPH1170
17" 1280 x 1024 1000-nit high brightness sunlight-readable rackmount LCD drawer with VGA + DVI-D video input and a 1U high 19.7" short-depth rackmount enclosure.
Key Features
- ✓1U high 19.7 inch short depth rackmount drawer
- ✓17 inch 1280 x 1024 industrial LCD monitor
- ✓1000-nit high brightness display
- ✓VGA + DVI-D video input
- ✓Option for HDMI / BNC / Audio / 3G-SDI input
- ✓Option Resistive or Projected Capacitive type touch screen
- ✓External 100/240 auto-sensing AC power input
- ✓Option for 12V / 24V / 48V / 125V DC power input
Sunlight readable rackmount monitor drawer with a 17 inch 1280 x 1024 industrial LCD panel, 1000-nit high brightness display, VGA + DVI-D video input, 2-position lock for system security, and a 1U high 19.7 inch short-depth rackmount drawer. Option for HDMI / BNC / Audio / 3G-SDI input, Resistive or Projected Capacitive type touch screen, DC power input.
| Material | Heavy-duty steel |
| LCD Panel | Size: 17 inch Max Resolution: 1280 x 1024 Brightness (cd/m²): 1000 Contrast Ratio (typ.) : 1000:1 Viewing Angle (H/V): 170° x 160° Active Area (mm): 337.92H x 270.33V Colors: 16.7 M Backlight: LED MTBF (hrs): 50,000 |
| Video Input | VGA + DVI-D video input Option for HDMI / BNC / Audio / 3G-SDI input |
| Touch Screen (Option) | Option for Resistive or Projected Capacitive type touch screen |
| Front Panel Controls | Power on/off switch OSD (On Screen Display) function |
| OSD Control | Auto-Adjustment for contrast, balance, H-position, V-position, phase, brightness |
| Drawer Design | Solid bearing slide rails Mounting Distance: 20.1~29.1 inch (510~740 mm) |
| Power Supply | Input: Auto-sensing 100 to 240VAC, 50/60Hz Consumption: Max. 30 Watt, Standby 2 Watt Option for 12V / 24V / 48V / 125V DC power input |
| Environmental | Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Altitude: 16,000 ft, Operating 40,0000 ft, Non-operating Shock: 10G acceleration (11ms duration) Vibration: 10~300Hz 0.5G RMS random vibration |
| Safety | CE, FCC |
| Weight | 23.1 lb / 10.5 kg |
| Dimension | 17.4"(W) x 19.7"(D) x 1.73"(H) *Casing depth will increase if video input, touch screen, or DC power option is selected |
This product does not have configurable options.
