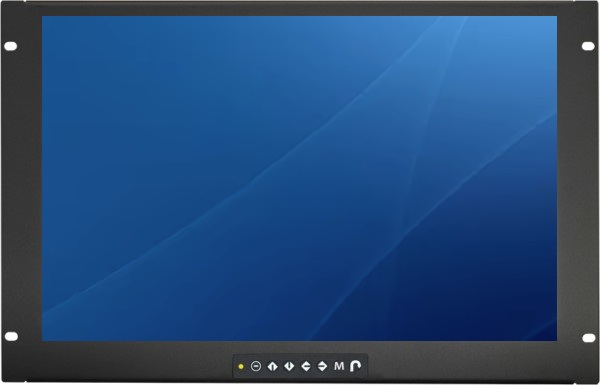

RMW7194
19" 1440 x 900 widescreen 1000-nit high brightness LCD monitor with VGA + DVI-D video input, 100/240VAC power input, and a 7U high rackmount enclosure.
Key Features
- ✓7U 19" high brightness rack LCD monitor
- ✓1000-nits high brightness display
- ✓Supports 1440 x 900 native resolution
- ✓Front OSD (on-screen display) function
- ✓VGA + DVI-D video input
- ✓Option for HDMI, BNC, MCS Audio, Speaker, or 3G-SDI input
- ✓Option for Resistive 1-pt touch screen - USB
- ✓Auto-sensing 100 to 240VAC, 50 / 60Hz power input
- ✓Option for 12V / 24V / 48V / 125V DC power input
The RMW7194 is a 19" high brightness rack LCD monitor designed for outdoor applications or environments with high ambient lighting. The LCD panel supports 1440 x 900 resolution, 1000-nits high brightness, 1000:1 contrast ratio, and 16.7 million colors. The monitor features VGA + DVI-D video input, easy access to front OSD functions, and a 7U high rack enclosure designed for standard 19" wide rack cabinets. Options are available for touch screen technology, additional video input modules, and DC power input.
| Construction | Heavy-duty steel |
| LCD panel | Size: 19 inch Native Resolution: 1440 x 900 Brightness (cd/m²): 1000 Contrast Ratio (typ) : 1000:1 Colors: 16.7 M Viewing Angle (H/V): 160° x 160° Response Time (ms): 5 Dot Pitch (mm): 0.2835 Display Area (mm): 408.24H x 255.15V Surface Treatment: Haze 25%, Hard-coating Surface Hardness: 3H Backlight Type: LED MTBF (hrs): 30,000 |
| Video input | Standard: VGA + DVI-D video input Option: HDMI, BNC, MCS, Audio, Speaker, or 3G-SDI input |
| Touch screen (Option) | Resistive 1-pt touch screen - USB port |
| Front panel control | Power on/off switch OSD membrane switch |
| Connector | 1 x VGA + 1 DVI-D |
| Power Supply | Input: Auto-sensing 100 to 240VAC, 50/60Hz Power Consumption: Max. 34 Watt, Standby 2 Watt Option for 12V / 24V / 48V / 125V DC power input |
| Mounting | 7U high rackmount for a standard 19" wide rackmount cabinet |
| Casing Color | Black front panel (RAL9005) |
| Environmental | Operating Temperature: 0°C to 55°C Storage Temperature: -20°C to 60°C Relative Humidity: 5~90%, non-condensing Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft Shock: 10G acceleration (11 ms duration) Vibration: 10~300Hz 0.5G RMS random vibration |
| Compliance | CE, FCC, RoHS, TAA |
| Weight | 12.8 lb / 5.8 kg |
| Dimension | Product: 18.9"(W) x 2.3"(D) x 12.2"(H) Packing: 20.8"(W) x 4.9"(D) x 17.8"(H) |
