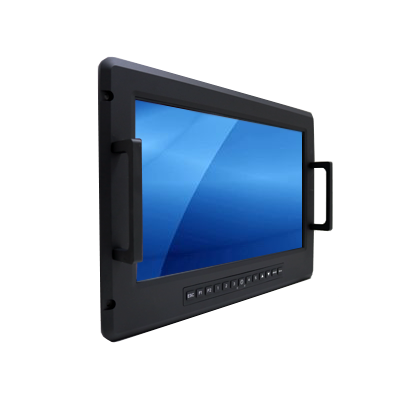

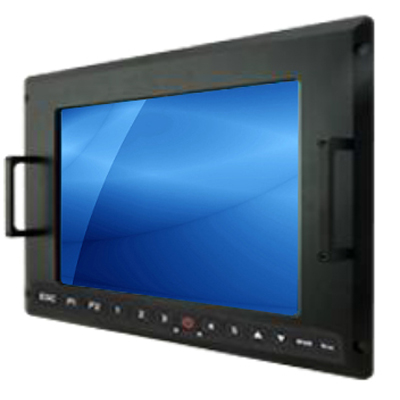

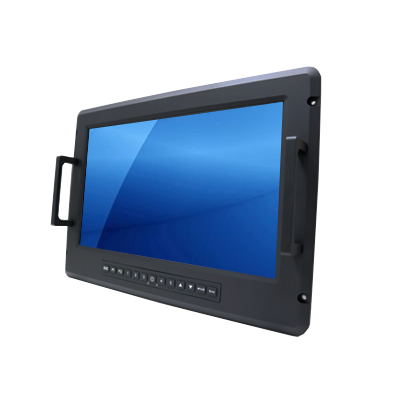

RMW7180
17.3 inch 1920 x 1080 FHD military-grade LCD monitor with VGA + DVI video input in an 8U high rackmount enclosure with MIL-STD-810G wide working temperature.
Key Features
- ✓8U 17.3" rugged military rackmount LCD monitor
- ✓Supports 1920 x 1080 (Full HD) pixel resolution
- ✓400-nit brightness, option for 1000-nit high brightness
- ✓VGA + DVI video input, option for DP, HDMI, or BNC input
- ✓AR glass, option for ITO or Resistive / Capacitive touch screen
- ✓Option for dimming light sensor and optical bond
- ✓MIL-STD-810G compliance for vibration, shock, humidity
- ✓Extended working temperature range from -15°C to 55°C
- ✓DC power input with external AC power adapter
The RMW7180 is an 8U high 17.3" rugged military rackmount LCD display supporting Full HD (1920 X 1080), AR protective glass, VGA + DVI video input. Built for rugged harsh environments, the RMW7180 features -15°C to 55°C extended working temperature range and MIL-STD-810G compliance for vibration, shock, and humidity.
| Material | Heavy-duty steel |
| LCD Panel | Size: 17.3 inch Max Resolution: 1920 x 1080 Brightness (cd/m²): 400, option for 1000-nit high brightness Contrast Ratio (typ.) : 600:1 Viewing Angle (H/V): 160° x 140° Active Area (mm): 381.89H x 214.81V Pixel Pitch (mm): 0.1989H x 0.1989V Colors: 16.7M, 8-bit Backlight: LED |
| LCD Protection / Touch Screen (Option) | AR protective glass (standard) Option for ITO glass with no touch Option for Resistive type touch screen with no AR or ITO glass Option for Capacitive type touch screen with no AR or ITO glass |
| Video Input | VGA + DVI video input Option for DP, HDMI, BNC, or Speaker-Audio input |
| Front OSD Buttons | OSD Control: 1 x Power, 1 x Enter (Menu), 1 x Space, 1 x Up, 1 x Down for OSD control Keyboard FN Keys: ESC, F1, F2, 1~5 mapping to keyboard (programmable to other keys) |
| Light Sensor (Option) | Dimmer light sensor |
| Optical Bonding (Option) | Optical bonding |
| Connectors | 1 x VGA + 1 x DVI 1 x DP (option) 1 x HDMI (option) 1 x BNC (option) 1 x 3-pin D38999 power connector w/ power adapter |
| Plug & Play | VESA DDC 1/2B |
| Power Supply | DC power with external AC power adapter Power Consumption: 35W (typical) Power Management: VEDA DPMS Compliant Option for D38999 9 to 36V DC power input or D38999 AC power input Option for MIL-STD-461E power EMI filter |
| Environmental | Operating Temperature: -15°C to 55°C Storage Temperature: -30°C to 70°C Operating Humidity: 5% to 95%, non-condensing Vibration: MIL-STD-810G Method 514.6C-3 compliant Shock: MIL-STD-810G Method 516.6 compliant Humidity: MIL-STD-810G Method 507.5-7 compliant Low Temperature: MIL-STD-810G Method 502.5 Procedure II, C1 zone compliant High Temperature: MIL-STD-810G Method 501.5-II Procedure II, Hot Dry (A1) compliant Option for -20°C to 70°C wide range working temperature |
| IP Level | IP65 in front, IP54 in rear |
| Gross Weight | 19.84 lb / 9 kg |
| Dimension | 18.89"(W) x 4.72"(D) x 10.25"(H) |
