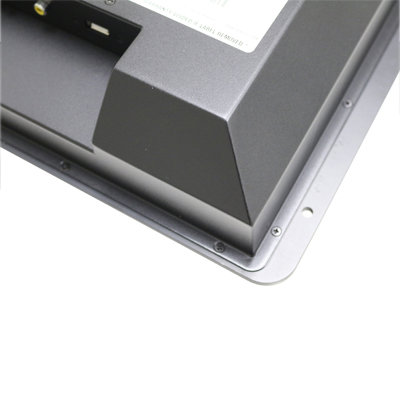

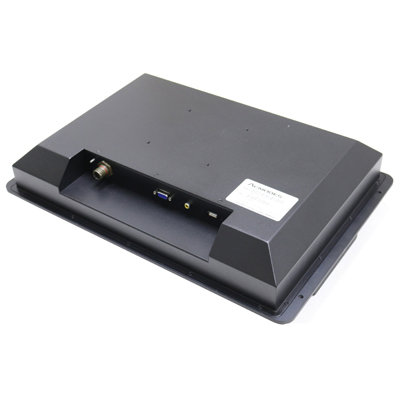

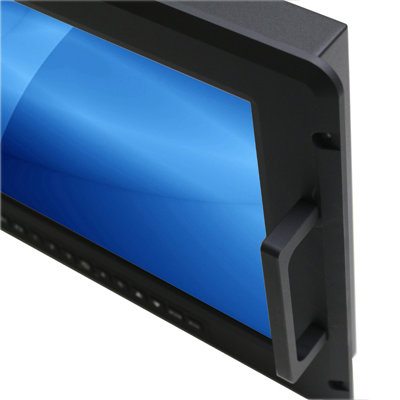

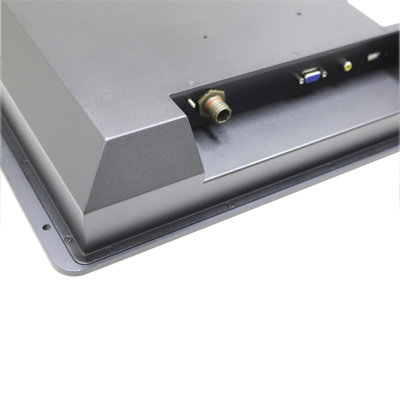

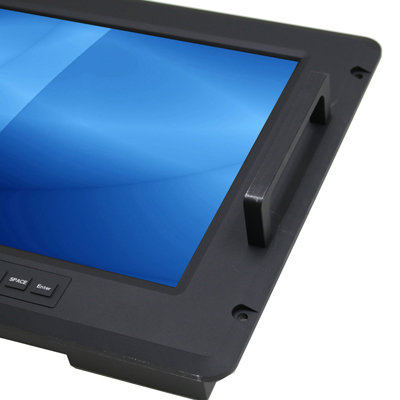

RMW7175
17.3 inch 1920 x 1200 military-grade LCD monitor with VGA + DVI video input and MIL-STD-810G wide range working temperature in an 8U high rackmount enclosure.
Key Features
- ✓8U 17.3" rugged military rackmount LCD monitor
- ✓Supports 1920 x 1200 pixel resolution
- ✓600-nit high brightness brightness
- ✓VGA + DVI video input, option for DP, HDMI, or BNC input
- ✓AR glass, option for ITO glass or Capacitive type touch screen
- ✓Option for dimming light sensor and optical bond
- ✓MIL-STD-810G compliance for vibration, shock, and humidity
- ✓Extended working temperature range from -15°C to 55°C
- ✓DC power input with external AC power adapter
The RMW7175 is a 17.3" rugged military rackmount LCD monitor featuring 1920 x 1200 pixel resolution, 600-nit high brightness display, VGA + DVI input, AR glass, and an IP-rated 8U high rackmount enclosure. Designed for harsh environmental and military applications, this 17.3" industrial LCD monitor features AR glass protection, IP65 rated front bezel, MIL-STD-810G vibration/shock/humidity compliance, and -15°C to 55°C wide range working temperature.
| Material | Heavy-duty steel |
| LCD Panel | Size: 17.3 inch Max Resolution: 1920 x 1200 Brightness (cd/m²): 600 Contrast Ratio (typ.) : 2000:1 Viewing Angle (H/V): 176° x 176° Active Area (mm): 365.76H x 228.6V Pixel Pitch (mm): 0.1905H x 0.1905V Colors: 16.7M, 8-bit Backlight: LED |
| LCD Protection / Touch Screen (Option) | AR protective glass (standard) Option for ITO glass with no touch Option for Capacitive type touch screen with no AR or ITO glass |
| Video Input | VGA + DVI video input Option for DP, HDMI, BNC, or Speaker-Audio input |
| Front OSD Buttons | OSD Control: 1 x Power, 1 x Enter (Menu), 1 x Space, 1 x Up, 1 x Down for OSD control Keyboard FN Keys: ESC, F1, F2, 1~5 mapping to keyboard (programmable to other keys) |
| Light Sensor (Option) | Dimming light sensor |
| Optical Bonding (Option) | Optical bonding |
| Connectors | 1 x VGA + 1 x DVI 1 x DP (option) 1 x HDMI (option) 1 x BNC (option) 1 x 3-pin D38999 power connector w/ power adapter |
| Plug & Play | VESA DDC 1/2B |
| Power Supply | Input: DC power with external AC power adapter Power Consumption: 32W (typical) Option for D38999 9 to 36V DC power input or D38999 AC power input Option for MIL-STD-461E power EMI filter |
| Environmental | Operating Temperature: -15°C to 55°C Option for -20°C to 60°C wide range working temperature Storage Temperature: -30°C to 70°C Operating Humidity: 5% to 95%, non-condensing Vibration: MIL-STD-810G Method 514.6C-3 compliant Shock: MIL-STD-810G Method 516.6 compliant Humidity: MIL-STD-810G Method 507.5-7 compliant Low Temperature: MIL-STD-810G Method 502.5 Procedure II, C1 zone compliant High Temperature: MIL-STD-810G Method 501.5-II Procedure II, Hot Dry (A1) compliant |
| IP Level | IP65 in front, IP54 in rear |
| Gross Weight | 22.04 lb / 10 kg |
| Dimension | 18.90"(W) x 12.99"(H) x 4.72"(D) |
This product does not have configurable options.
