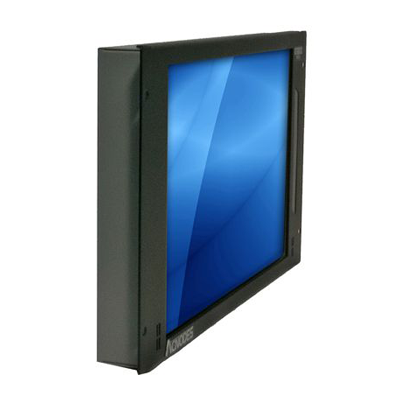

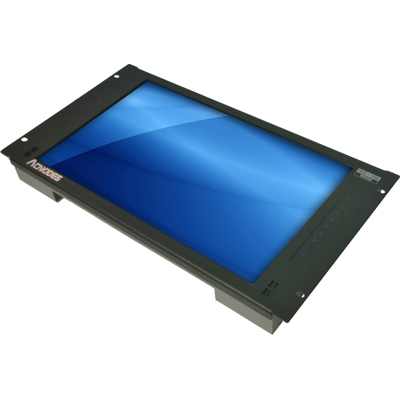

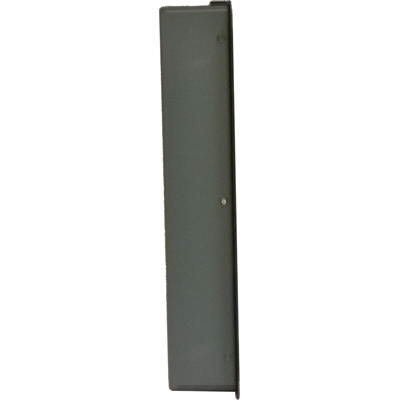

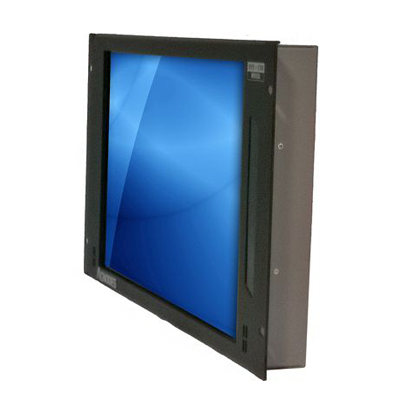

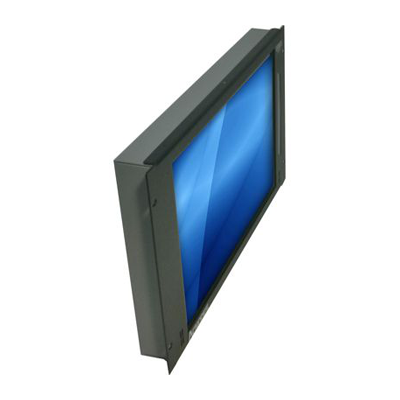

RMW7170
16.2" 1920 x 1200 WUXGA industrial LCD monitor with VGA + DVI-D + HDMI video input and 100/240VAC power input in a 6U high rackmount monitor enclosure.
Key Features
- ✓6U 16.2" WUXGA rackmount LCD monitor
- ✓Supports 1920 x 1200 native resolution
- ✓Front OSD (on-screen display) function
- ✓VGA + DVI-D + HDMI video input
- ✓Option for BNC, MSC, Audio, Speaker, or 3G-SDI input
- ✓Option for Resistive or Projected Capacitive touch screen - USB
- ✓Auto-sensing 100 to 240VAC, 50 / 60Hz power input
- ✓Option for 12V / 24V / 48V / 125V DC power input
The RMW7170 is a high-quality 6U 16.2" WUXGA rackmount LCD monitor that is designed to provide an excellent display experience in any professional setting. With a native resolution of 1920 x 1200, this monitor delivers high-quality images that are sure to impress. The front OSD (on-screen display) function allows you to easily adjust the settings to your preference, while the VGA + DVI-D + HDMI video input ensures compatibility with a wide range of devices. The RMW7170 also offers the option for BNC, MSC, Audio, Speaker, or 3G-SDI input, making it ideal for use in professional broadcast environments.
| Construction | Heavy-duty steel |
| LCD panel | Size: 16.2 inch Max Resolution: 1920 x 1200 Brightness (cd/m²): 300 Contrast Ratio (typ) : 800:1 Colors: 16.7 M, 8-bit Viewing Angle (H/V): 178° x 178° Response Time (ms): 30 Dot Pitch (mm): 0.191 Display Area (mm): 343.8H x 214.9V Surface Treatment: Anti-glare, Hard-coating Surface Hardness: 3H Backlight: LED MTBF (hrs): 20,000 |
| Video Input | Standard: VGA + DVI-D + HDMI video input Option: BNC, MSC, Audio, Speaker, or 3G-SDI |
| Touch Screen (Option) | Resistive 1-pt touch screen - USB port Projected Capacitive 10-pt touch screen - USB port |
| Front panel control | Power on/off switch OSD membrane switch |

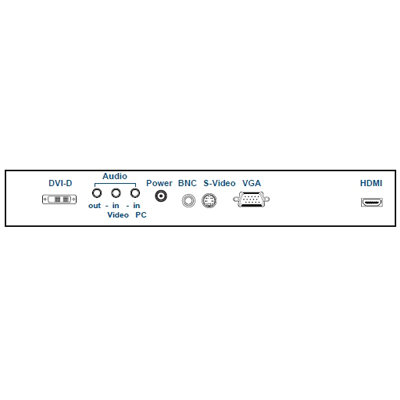

| Connector | 1 x VGA + 1 x DVI-D + 1 x HDMI |

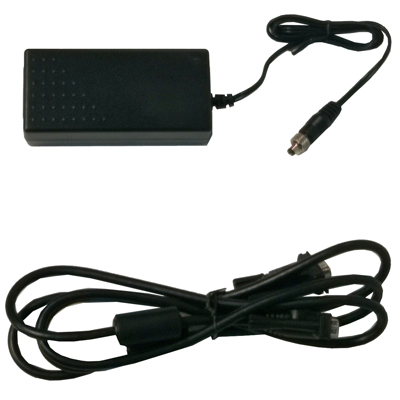

| Power Supply | Input: Auto-sensing 100 to 240VAC, 50 / 60Hz Consumption: Max. 34 Watt, Standby 4 Watt Option for 12V / 24V / 48V / 125V DC power input |
| Mounting | 6U high rackmount for a standard 19" wide rackmount cabinet |
| Environmental | Operating Temperature: 0°C to 55°C Storage Temperature: -20°C to 60°C Relative Humidity: 5~90%, non-condensing Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft Shock: 10G acceleration (11 ms duration) Vibration: 10~300Hz 0.5G RMS random vibration |
| Compliance | CE, FCC, RoHS, TAA |
| Weight | 9.2 lb / 4.2 kg |
| Dimension | Product: 18.9"(W) x 1.9"(D) x 10.5"(H) Packing: 20.8"(W) x 4.9"(D) x 17.8"(H) |
