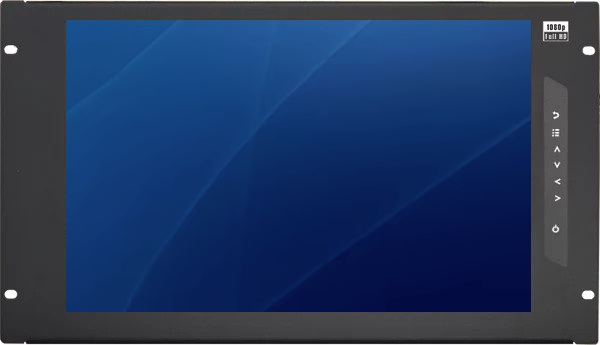

RMW6173
17.3" 1920 x 1080 FHD 1000-nits high brightness LCD monitor with VGA + HDMI video input and 100/240VAC power input in a 6U high rackmount enclosure.
Key Features
- ✓6U 17.3" high brightness rack LCD monitor
- ✓1000-nits high brightness display
- ✓Supports 1920 x 1080 FHD native resolution
- ✓Front OSD (on-screen display) function
- ✓VGA + HDMI video input
- ✓Option for DVI-D, BNC, MCS, Audio, Speaker, or 3G-SDI input
- ✓Option for Resistive or Projected Capacitive touch screen
- ✓Auto-sensing 100 to 240VAC, 50 / 60Hz power input
- ✓Option for 12V / 24V / 48V / 125V DC power input
The RMW6173 is a 17.3" high brightness rack LCD monitor designed for outdoor applications or environments with high ambient lighting. The LCD panel supports 1920 x 1080 Full HD resolution, 1000-nits high brightness, 600:1 contrast ratio, and 16.7 million colors. The monitor features VGA + HDMI video input, easy access to front OSD functions, and an 8U high rack enclosure designed for standard 19" wide rack cabinets. Options are available for touch screen technology, additional video input modules, and DC power input.
| Construction | Heavy-duty steel |
| LCD panel | Size: 17.3 inch Native Resolution: 1920 x 1080 Brightness (cd/m²): 1000 Contrast Ratio (typ) : 600:1 Colors: 16.7 M, 8-bit Viewing Angle (H/V): 160° x 140° Response Time (ms): 5.5 Display Area (mm): 381.888H x 214.812V Surface Treatment: Anti-glare, Hard-coating Surface Hardness: 3H Backlight Type: LED MTBF (hrs): 50,000 |
| Video input | Standard: VGA + HDMI video input Option: DVI-D, BNC, MCS, Audio, Speaker, or 3G-SDI input |
| Touch screen (Option) | Resistive 1-pt touch screen - USB port Projected Capacitive 10-pt touch screen - USB port |
| Front panel control | Power on/off switch OSD membrane switch |

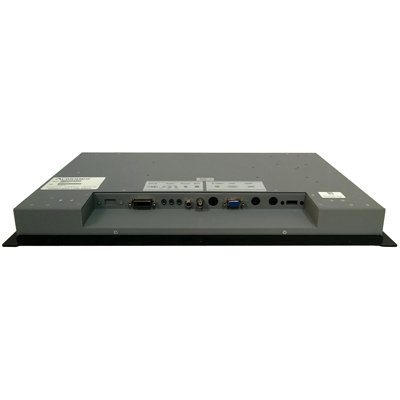

| Connector | 1 x VGA + 1 x DVI-D |
| Power Supply | Input: Auto-sensing 100 to 240VAC, 50 / 60Hz Power Consumption: Max. 39 Watt, Standby 2 Watt Option for 12V / 24V / 48V / 125V DC power input |
| Mounting | 6U high rackmount for a standard 19" wide rackmount cabinet |
| Casing Color | Black (RAL 9005) |
| Environmental | Operating Temperature: 0°C to 55°C Storage Temperature: -20°C to 60°C Relative Humidity: 5~90%, non-condensing Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft Shock: 10G acceleration (11 ms duration) Vibration: 10~300Hz 0.5G RMS random vibration |
| Compliance | CE, FCC, RoHS, TAA |
| Weight | 9.8 lb / 4.5 kg |
| Dimension | Product: 18.9"(W) x 1.9"(D) x 10.5"(H) Packing: 20.8"(W) x 4.9"(D) x 17.8"(H) |
