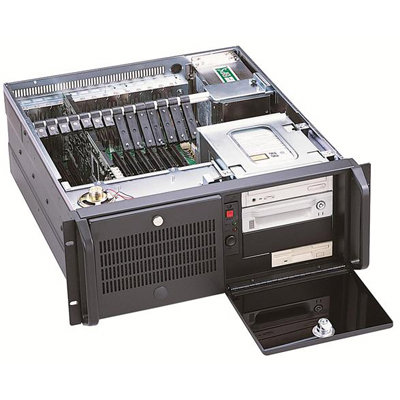

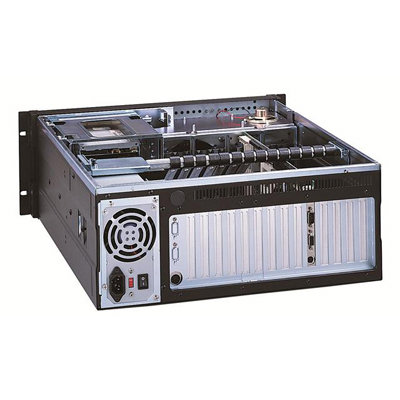

RMC6446B
4U rackmount computer with the 13/14th generation Core i processor, single-board computer (SBC) with PCIMG 1.3, SATA hard drive, and a 500W ATX power supply.
Key Features
- ✓4U high rackmount computer
- ✓20.1" short-depth rackmount chassis
- ✓13/14th Generation Intel processors
- ✓Single board computer PICMG 1.3
- ✓14 x PCI/ PCIe / SBC slots backplane
- ✓3 x 5.25" & 1 x 3.5" external drive bay
- ✓Two front doors with keylock & thumbscrew
- ✓500W auto-switch ATX power supply
Rackmount computer powered by the 13/14th generation Intel Core i processor with an industrial-grade single board computer (SBC) supporting a 14-slot PICMG 1.3 backplane and 3 x hard drive bays. The 4U rackmount computer features a metal front door with a washable air filter & lock, 1 x 120mm ball bearing fan, and a standard PS/2 power supply in a 4U high 20.1 inch depth EMI-shielded chassis designed for industrial applications.
| Construction | Heavy-duty cold-rolled steel Inside: zinc-plated with bright chromate Outside: texture-coated |
| Standard SBC board | Size: Full-size single board computer Processor: Core i processor Memory: 2 x memory socket (up to 128GB memory) Dual 2.5Gbe Ethernet LAN ports 1 x DVI (onboard) & 1 x DP (occupies one slot) port 6 x SATA connectors & 1 x M.2 2 x RS-232, 4 x USB ports |
| Device | 3 x 5.25" open drive bay 1 x 3.5" open drive bay 1 x 3.5" hidden drive bay |
| Backplane | 14 slot Backplane PICMG 1.3 A: 1 x PICMG 1.3 SBC, 7 x PCI, 1 x PCIe x16. 1 PCIe x1 B: 1 x PICMG 1.3 SBC, 4 x PCI, 1 x PCIe x16, 4 x PCIe x1, 4 x ISA C: 1 x PICMG 1.3 SBC, 7 x PCI, 1 x PCIe x16, 5 x PCIe x4 |
| Front Panel Controls | Power on/off switch System reset button |
| Front Security Door | Security door with key-locker |
| Cooling Fan | 1 x 120mm ball bearing fan |
| Air Filter | Removable and washable |
| Power Supply | PS/2 type 500W industrial level Auto-switching power supply for 85V~264V AC input |
| Color | Black |
| Environmental | Operating Temperature: 0°C to 50°C Humidity: 5~95%, non-condensing |
| Weight | 40 lb / 18.14 kg |
| Dimension | 19"(W) x 6.97"(H) x 20.1"(D) |
