RM6210
20.1" 1600 x 1200 rackmount LCD monitor with VGA + HDMI video input, front OSD menu control, and 100/240VAC power input in a 9U high rackmount enclosure.
Key Features
- ✓9U 20.1" rackmount LCD monitor
- ✓Supports 1600 x 1200 native resolution
- ✓Front OSD (on-screen display) function
- ✓VGA + HDMI video input
- ✓Option for DVI-D, Audio, Speaker, or 3G/HD/SD-SDI input
- ✓Option for Resistive 1-pt touch screen - USB
- ✓Auto-sensing 100 to 240VAC, 50 / 60Hz power input
- ✓Option for 12V / 24V / 48V / 125V DC power input
The RM6210 is a 9U 20.1-inch rackmount LCD monitor designed for use in server rooms and data centers. It features a native resolution of 1600 x 1200 and supports VGA + HDMI video input. The option for DVI-D, Audio, Speaker, or 3G/SD-SDI input provides flexibility for various applications. The RM6210 also comes with an optional resistive 1-pt touch screen with a USB port. This allows users to interact with the display directly, making it ideal for use in industrial control systems, kiosks, and other applications that require touch input. The monitor also features auto-sensing 100 to 240VAC, 50/60Hz power input and has the option for 12V/24V/48V/125V DC power input, making it easy to integrate into a variety of systems.
| Construction | Heavy-duty steel |
| LCD Monitor | Size: 20.1 inch Max Resolution: 1600 x 1200 Brightness (cd/m²): 300 Contrast Ratio (typ.): 800:1 Colors: 16.7M Viewing Angle (H/V): 178° x 178° Response Time (ms): 16 Dot Pitch (mm): 0.255 Display Area (mm): 408H x 306V Surface Treatment: Anti-glare, Hard-coating Surface Hardness: 3H Backlight: CCFL MTBF (hrs): 45,000 |

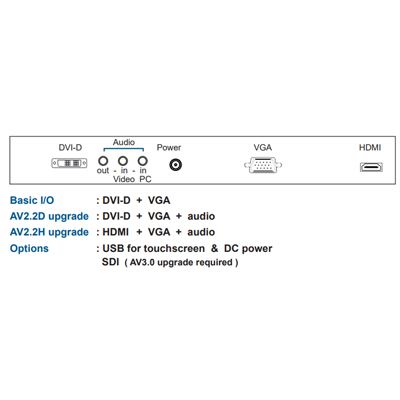

| Video Input | Standard: VGA + HDMI video input Option: DVI-D, Audio, Speaker, or 3G/HD/SD-SDI input |
| Touch Screen (Option) | Resistive 1-pt touch screen - USB port |
| Connector | 1 x VGA + 1 DVI-D |
| Front panel control | Power on/off switch OSD membrane switch |
| Power Supply | Input: Auto-sensing 100 to 240VAC, 50 / 60Hz Consumption: Max. 45 Watt, Standby 2 Watt Option for 12V / 24V / 48V / 125V DC power input |
| Mounting | 9U high rackmount monitor for standard 19" wide rackmount cabinet |
| Casing Color | Black front panel (RAL 9005) |
| Environmental | Operating Temperature: 0°C to 55°C Storage Temperature: -20°C to 60°C Relative Humidity: 5~90%, non-condensing Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft Shock: 10G acceleration (11 ms duration) Vibration: 10~300Hz 0.5G RMS random vibration |
| Compliance | CE, FCC, RoHS, TAA |
| Weight | 18.7 lb / 8.5 kg |
| Dimension | Product: 18.9"(W) x 2.5"(D) x 15.7"(H) Packing: 23"(W) x 4.9"(D) x 20.8"(H) |
