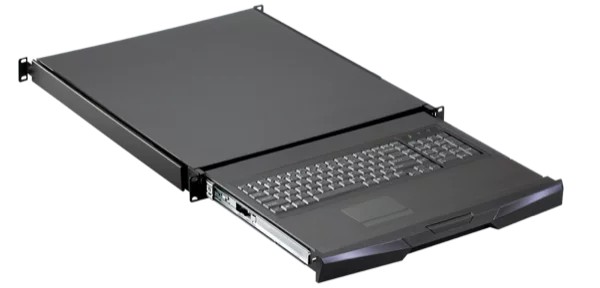

RK120H
1U keyboard drawer with 8-port 2K KVM switch, 1 x local console, 104-key keyboard with touchpad, and a 23.6" depth rack drawer with a molded front panel and two-point lock.
Key Features
- ✓1U rackmount keyboard drawer
- ✓Integrated 8-port 2K KVM switch
- ✓104-key keyboard with touchpad - USB interface
- ✓1 x local console
- ✓Option for SUN Micro keyboard layout
- ✓Enhanced design with molded front panel & two-point lock
- ✓Adjustable rear mounting bracket & one man installation design
- ✓1U 23.6" (600mm) depth rackmount drawer
The RK120H is a 1U keyboard drawer integrated with an 8-port 2K KVM switch in a 23.6" depth rack drawer. It features a 104-key keyboard with touchpad, 1 x local console, and front mount holes that allow you to easily mount the drawer into a 19" rackmount cabinet or server rack.
| Construction | Sealed aluminum chassis Metal with the positive pole processing |
| Keyboard | Keys: 104-key keyboard Keyboard Indicator: Num lock, Caps lock, Scroll lock Keypad: 17-key numeric keypad Supporting Layout: English (USA) only Interface: USB Keys Life Cycle: 20 million |
| Keyboard Layout (Option) | Option for SUN keyboard layout - USB interface |
| Pointing Device | 2-button touchpad |
| KVM Port | Number of Ports: 8 Connector: HDMI 1.4 + USB-B ( Video + KB / MS ) Resolution: 16 : 9 - max. 2560 x 1440@60Hz / 16 : 10 - max. 1920 x 1200@60Hz / 4 : 3 - max. 1600 x 1200@60Hz |
| Management | PC Selection: Front button & keyboard hotkey |
| Compatibility | Hardware: HP / IBM / Dell PC, Server and Blade Server, SUN / Mac OS Support: Windows / Linux / Unix / Mac OS |
| Power Supply | Input: Auto sensing 100 to 240VAC, 50 / 60 Hz Consumption: Max. 10W |
| KVM Cables (Option) | KVM cables not included Option for 6ft HDMI-USB KVM cable (CH-HDMI) or 6ft DVI-USB KVM cable (CH-DVI) |
| Mounting Distance | 560 ~ 790 mm (22 ~ 31.1 inch) |
| Environmental | Operating Temperature: 0°C to 55°C Storage Temperature: -20°C to 60°C Operating Humidity: 10~90%, non-condensing Storage Humidity: 5~90%, non-condensing Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft Shock: 10G acceleration (11ms duration) Vibration: 10~300Hz 0.5G RMS random vibration |
| Compliance | CE, FCC, RoHS, TAA Compliant |
| Weight | 24 lb / 10.9 kg |
| Dimension | 17.4"(W) x 23.6"(D) x 1.73"(H) |
