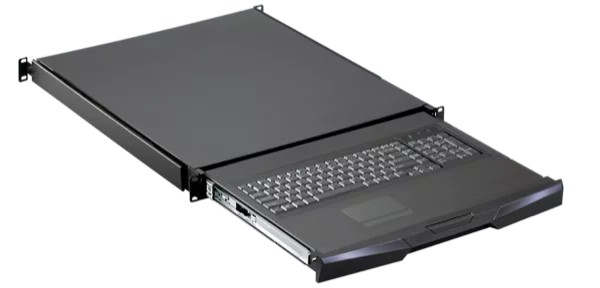

RK120D
1U rackmount keyboard drawer with an 8-port VGA KVM switch, 104-key keyboard with 2-button touchpad, and a 1U high 23.6-inch depth rackmount drawer.
Key Features
- ✓1U rackmount keyboard drawer
- ✓Integrated 8 or 16-port DB-15 KVM switch
- ✓104-key keyboard with touchpad - USB interface
- ✓1 x local console, option for remote or IP console
- ✓Option for SUN Micro keyboard layout
- ✓Enhanced design with molded front panel & two-point lock
- ✓Adjustable rear mounting bracket & one man installation design
- ✓1U 23.6" (600mm) depth rackmount drawer
Rackmount keyboard drawer with an 8-port VGA KVM switch, one local console, and a 104-key keyboard with touchpad in a 1U high 23.6-inch depth rackmount drawer. The keyboard drawer features front mounting holes that allow you to easily mount the drawer into any 19-inch rackmount cabinet or server rack. Option for 16-port VGA KVM switch, remote or IP user console, SUN keyboard layout, and VGA + USB KVM cables.
| Construction | Sealed aluminum chassis Metal with the positive pole processing |
| Keyboard | Keys: 104-key keyboard Keyboard Indicator: Num lock, Caps lock, Scroll lock Keypad: 17-key numeric keypad Supporting Layout: English (USA) Interface: USB Keys Life Cycle: 20 million |
| Keyboard Layout | Option for SUN keyboard layout - USB interface |
| Pointing device | 2-button touchpad |
| KVM Port | Number of Ports: 8 or 16 Connector: DB-15 combo connector Connectivity: USB 2-in-1 KVM cable, up to 6, 10 & 15 feet |
| KVM Switch | Use console access server independently & simultaneously Advanced user profiles and configurable on screen display (OSD) & hotkey combination Multilingual on screen display menu Supports 8-character password protection |
| Local console | Connector: 1 x DB-15 Input Device: 2 x USB ports for keyboard & mouse |
| Remote Console (Option) | Connector: 1 x DB 15-pin VGA Input Device: 2 x USB ports for keyboard & mouse Remote I/O: 1 x RJ-45 port via Cat6 cable up to 150 meters Receiver Box: 1 x receiver box for remote console Cable: 1 x 6ft VGA + PS/2 KVM cable for receiver box Resolution Support: 16:9 - max. 1920 x 1080 / 16:10 - max. 1920 x 1200 / 4:3 - max. 1600 x 1200 |
| IP Remote Console (Option) | Connector: RJ45 Ethernet User Management: 15-user login, 1 x active user Network Protocol: DHCP / BOOTP / DNS Security: TLS 1.3, AES, LDAP, Active Directory (AD), HTTP(s) Browser: Chrome, Firefox, Edge, etc. Resolution Support: 16: 9 - max. 1920 x 1080 / 16:10 - max. 1920 x 1200 / 4: 3 - max. 1600 x 1200 |
| Cascade Port | 1 x in / out proprietary cascade KVM port Extended up to 128 servers by 8-level cascade |
| Compatibility | Hardware: HP / IBM / Dell PC, Server and Blade Server SUN / Mac OS Support: Windows / Linux / Unix / Mac OS |
| KVM Cables (Option) | KVM cables not included Option for 6ft / 10ft / 15ft VGA + USB KVM cable |
| Mounting Distance | 560 ~ 790 mm (22 ~ 31.1 inch) |
| Environmental | Operating Temperature: -20°C to 55°C Storage Temperature: -20°C to 60°C Operating Humidity: 10~90%, non-condensing Storage Humidity: 5~90%, non-condensing Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft Shock: 10G acceleration (11ms duration) Vibration: 10~300Hz 0.5G RMS random vibration |
| Compliance | CE, FCC, RoHS, TAA Compliant |
| Weight | 24 lb / 10.9 kg |
| Dimension | 17.4"(W) x 23.6"(D) x 1.73"(H) |
