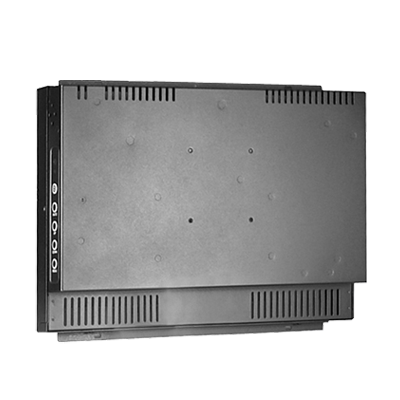

PMW6156
15.6" widescreen open frame LCD monitor with 1920 x 1080 display resolution, VGA + DVI + HDMI input, AC power input, and an open frame metal enclosure.
Key Features
- ✓15.6 inch widescreen open frame LCD monitor
- ✓Supports 1920 x 1080 display resolution
- ✓250-nits brightness, option for 1000-nits high brightness
- ✓VGA + HDMI + DVI input
- ✓Option for VGA + HDMI + DP input
- ✓Option for AG glass, AR glass, Resistive touch screen
- ✓Option for UV film, light/motion sensor, digital signage
- ✓Option for -10°C to 60°C wide working temperature
- ✓Wall and VESA (75 x 75mm) mount ready
- ✓AC input w/ built-in PWR, option for DC-IN
The PMW6156 15.6" open frame monitor is a reliable, cost-effective industrial solution designed for kiosk information systems, industrial automation, self-service, and commercial applications. The monitor supports 1920 x 1080 FHD display resolution, VGA + DVI + HDMI input, an optional built-in touch screen for interactive applications, and AC input w/ built-in PWR. With an open frame modularized design, it provides flexible product configuration and mounting that allows you to custom design enclosures for specific applications and OEM customers.
| Material | Heavy-duty steel |
| LCD Panel | Size: 15.6 inch Max Resolution: 1920 x 1080 Brightness (cd/m²): 250-nits Option for 1000-nits high brightness Contrast Ratio (typ.): 500:1 Viewing Angle (H/V): 160° x 160° Active Area (mm): 344.16(H) x193.59(V) Pixel Pitch (mm): / 0.1793(H) x 0.1793(V) Response Time: ≤ 35ms Backlight: LED Colors: 16.7M MTBF (hrs): 35,000 |
| LCD Enhancements(Option) | Option for UV film Option for AG Glass, AR Glass, or Resistive touch screen |
| Video Input | VGA + HDMI + DVI input Option for VGA + HDMI + DP input |
| On-Screen Display | 5 x OSD buttons for Power On/Off, Auto, Up, Down, Menu Option for external OSD box |
| Sensor (Option) | Option for light sensor or motion sensor |
| Digital Signage (Option) | Option for MP-1080P |
| Power Supply | Input: AC power input with built-in power Operation / Power Saving: 12.5 watt, < 1 watt (Support DPMS) Option for Isolated 9-36V DC-IN or 24V / 48V / 72V / 90V / 125V / 250V DC-IN |
| Mounting | Wall and VESA (75mm) mount ready |
| Environmental | Operating Temperature: 0°C to 50°C Option for -10°C to 60°C wide operating temperature (LCD Panel specifications will change with wide temperature option) Storage Temperature: -20°C to 60°C Humidity: 10% ~ 90% (no condensation) |
| Safety | FCC, CE |
| Weight | 9.92 lb / 4.5 kg |
| Dimension | 15.13"(W) x 10.32"(D) x 2.24"(H) |
This product does not have configurable options.
