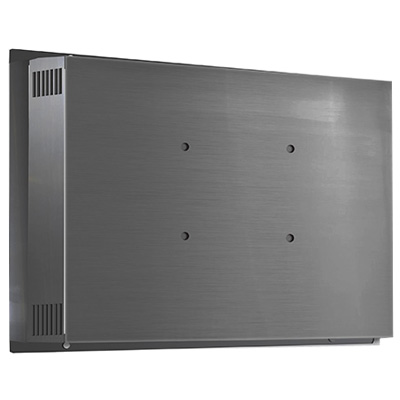

PMW6101
10.1" widescreen open frame LCD monitor with 1024 x 600 display resolution, VGA + HDMI + DVI input,12V DC input with adapter, and an open frame metal enclosure.
Key Features
- ✓10.1 inch widescreen open frame LCD monitor
- ✓Supports 1024 x 600 display resolution
- ✓200-nits brightness, option for 1000-nits high brightness
- ✓VGA + HDMI + DVI input
- ✓Option for VGA + HDMI + DP input
- ✓Option for AG glass, AR glass, Resistive touch screen
- ✓Option for UV film, light/motion sensor, digital signage
- ✓Wall and VESA (75 x 75mm) mount ready
- ✓12V DC input with adapter
The PMW6101 10.1" open frame monitor is a reliable, cost-effective industrial solution designed for kiosk information systems, industrial automation, self-service, and commercial applications. The monitor supports 1024 x 600 display resolution, VGA + DVI + HDMI input, an optional built-in touch screen for interactive applications, and a 12V DC input with adapter. With an open frame modularized design, it provides flexible product configuration and mounting that allows you to custom design enclosures for specific applications and OEM customers.
| Material | Heavy-duty steel |
| LCD Panel | Size: 10.1 inch Max Resolution: 1024 x 600 Brightness (cd/m²): 200-nits Option for 1000-nits high brightness Contrast Ratio (typ.): 500:1 Viewing Angle (H/V): 90° x 50° Active Area (mm): 222.72(H) x 125.28(V) Pixel Pitch (mm): 0.2175(H) x 0.2088(V) Response Time: ≤ 16ms Backlight: LED Colors: 262K MTBF (hrs): 35,000 |
| LCD Enhancements(Option) | Option for UV film Option for AG Glass, AR Glass, or Resistive touch screen |
| Video Input | VGA + HDMI + DVI input Option for VGA + HDMI + DP input |
| On-Screen Display | 5 x OSD buttons for Power On/Off, Auto, Up, Down, Menu Option for external OSD box |
| Sensor (Option) | Option for light sensor or motion sensor |
| Digital Signage (Option) | Option for MP-1080P |
| Power Supply | Input: 12V DC input with adapter Operation / Power Saving: 8.75 watt , < 1 watt (Support DPMS) Option for Isolated 9-36V DC-IN or 24V / 48V / 72V / 90V / 125V / 250V DC-IN |
| Mounting | Wall mount and VESA (75mm) mount ready |
| Environmental | Operating Temperature: 0°C to 50°C Storage Temperature: -20°C to 60°C Humidity: 10% ~ 90% (no condensation) |
| Safety | FCC, CE |
| Weight | 7.72 lb / 3.5 kg |
| Dimension | 10.63"(W) x 7.56"(D) x 1.97"(H) |
