PMN80240

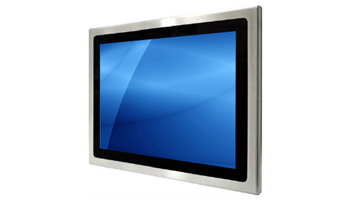

24 inch 1920 x 1080 industrial LCD monitor with VGA video input, P-cap multi-touch screen monitor, IP66/69K rated stainless steel enclosure, and 110/240VAC power input.
Key Features
- ✓Full IP66/69K anti-corrosion stainless steel housing
- ✓24 inch 1920 x 1080 Full HD industrial LCD monitor
- ✓Option for 1000-nit high brightness display or optical bonding
- ✓VGA video input, option for DVI or HDMI (IP66 rated connectors)
- ✓PCAP multi-touch screen, option for Resistive touch screen
- ✓Option for -20°C to 60°C wide range working temperature
- ✓VESA mount (100 x 100mm, 200 x 100mm)
- ✓110/240VAC power input, option for 9 to 36V DC power input
Panel mount monitor with a 24 inch 1920 x 1080 full HD industrial LCD monitor, full-IP66/69K rated anti-corrosion stainless steel housing, P-cap touch screen, and 110/240VAC power input. Option for 1000-nit high brightness monitor, optical bonding, DVI/HDMI video input, -20°C to 60°C wide range working temperature, and DC power input.
| Material | SUS316 stainless steel Anti-corrosion stainless steel housing |
| LCD Panel | Size: 24 inch Max Resolution: 1920 x 1080 Brightness (cd/m²): 250 Contrast Ratio (typ.): 5000:1 Viewing Angle (H/V): 178° x 178° Active Area (mm): 531.36H x 289.89V Pixel Pitch (mm): 0.27675H x 0.27675V Colors: 16.7M Option for 1000-nit high brightness Option for optical bonding |
| Video Input | VGA video input Option for DVI or HDMI input |
| Touch Screen | PCAP multi-touch screen with USB port Option for Resistive touch screen with USB port |
| OSD | OSD Input: 5-key OSD buttons OSD Function: Contrast, Color, Position, Auto Adjustment, Factory Settings |
| Power Supply | Input: AC 110~240V, Universal, ±10% Power Consumption: 30W (typ.) Option for 9~36V DC power input |
| Connectors | 1 x VGA (IP66 connector) 1 x DVI (Optional, IP66 connector) 1 x HDMI (Optional, IP66 connector) 1 x USB for touch screen (IP66 connector) |
| Cables | 6ft IP66 rated cables for touch screen, video input, and power |
| Mounting | VESA mount (100 x 100mm, 200 x 100mm) |
| Environmental | Operating Temperature: 0°C to 50°C Option for -20°C to 60°C wide range working temperature Storage Temperature: -40°C to 80°C Relative Humidity: 10% to 95%, non-condensing IP Grade: Full-IP66/69K |
| Weight | 30.86 lb / 14 kg |
| Dimension | 24.53"(W) x 16.42"(H) x 2.76"(D) |
