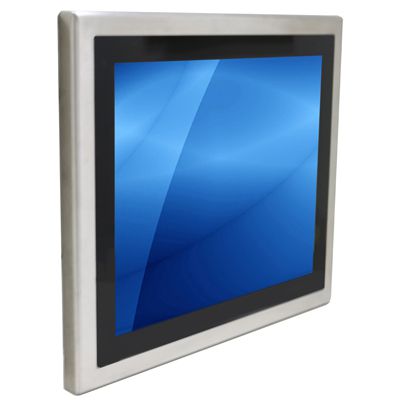

PMN80180
18.5" waterproof stainless steel monitor with 1920 x 1080 Full HD resolution, VGA video input, P-cap multi-touch screen, and a full IP66 rated stainless steel housing.
Key Features
- ✓Full IP66 rated anti-corrosion stainless steel housing
- ✓18.5 1920 x 1080 350-nit industrial LCD monitor
- ✓Option for 1000-nit high brightness display & optical bonding
- ✓VGA video input, option for DVI or HDMI input
- ✓P-cap multi-touch screen with USB
- ✓Option for 5-wire resistive touch screen with USB
- ✓-10°C to 55°C wide range working temperature
- ✓110 to 240VAC power input
The PMN80180 is an 18.5" waterproof stainless steel touchscreen monitor with 1920 x 1080 resolution, VGA video input, and IP66 rated I/O connectors. Designed for harsh environments, the monitor comes standard with SUS316 anti-corrosive stainless steel and a full IP66-rated housing. It is available with optional PCAP or Resistive touch, 1000-nits high brightness, optical bonding, and HDMI or DVI inputs.
| Material | SUS316 stainless steel Anti-corrosion stainless steel housing |
| LCD Panel | Size: 18.5" TFT LCD Resolution: 1920 x 1080 Brightness (cd/m²): 350-nits Contrast Ratio (typ.): 1000:1 Viewing Angle (H/V):178° x 178° Colors: 16.7M (6-bits + FRC) Option for 1000-nit high brightness display Option for optical bonding |
| Video Input | VGA video input Option for VGA + DVI or VGA + HDMI |
| Touch Screen | P-CAP type multi-touch screen - USB Option for 5-Wire Resistive type touch screen - USB |
| On-Screen Display | OSD Input: 5-key OSD buttons OSD Function: Contrast, Color, Position, Auto-adjustment, and Factory Settings |
| Power Supply | Input: 110~240V AC input Power Consumption: 30W (typ.) Option for wide range DC power input |
| Connectors | 1 x VGA (IP66 connector) 1 x USB for touch screen (IP66 connector) 1 x AC power input (IP66 connector) |
| Cables | IP66 rated cables for touch screen, video input, and power |
| Mounting | VESA (100 x 100mm) mount |
| Environmental | Operating Temperature: -10°C to 55°C Operating Humidity: 10~95%, non-condensing IP Rating: Full IP66 |
| Weight | TBD |
| Dimension | 20"(W) x 13.8"(H) x 2.1"(D) |
This product does not have configurable options.
