PMN80100
10.1" waterproof stainless steel monitor with 1280 x 800 display resolution, VGA video input, P-cap touch screen, and an IP66 rated anti-corrosive stainless steel housing.
Key Features
- ✓Full IP66 rated anti-corrosion stainless steel housing
- ✓10.1 inch 1280 x 800 350-nit industrial LCD monitor
- ✓Option for 1000-nit high brightness display & optical bonding
- ✓VGA video input, option for DVI or HDMI input
- ✓P-cap multi-touch screen with USB

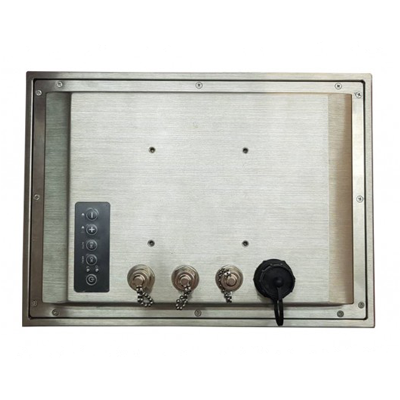

- ✓M12 connectors for video, USB, and power input
- ✓Rear VESA (75mm) mounting holes
- ✓12V DC power input
The PMN80100 is a 10.1" waterproof stainless steel touchscreen monitor ideal for pharmaceutical and medical applications, marine applications, food processing, clean rooms, and outdoor environments. With a SUS316 stainless steel housing design, the monitor is more corrosive resistant and has better resistance to salt and chlorides. The PMN80100 supports a 1024 x 800 display resolution, VGA video input, P-cap touch screen with USB, M12 connectors, and rear VESA (75mm) mounting holes. Options are available for a 1000-nits high brightness LCD screen, optical bonding, DVI or HDMI input, panel mount, and 9~36V DC power input.
| Material | SUS316 stainless steel Anti-corrosion stainless steel housing |
| LCD Panel | Size: 10.1" LCD Resolution: 1280 x 800 Brightness (cd/m²): 350-nits Contrast Ratio (typ.): 800:1 Viewing Angle (H/V): 170° x 170° Active Area (mm): 200.416(H) x 129.15(V) Colors: 16.7M Option for 1000-nit high brightness display Option for optical bonding |
| Video Input | VGA video input Option for VGA + DVI or VGA + HDMI |
| Touch Screen | P-CAP type multi-touch screen - USB |
| On-Screen Display | OSD Input: 5-key OSD buttons OSD Function: Contrast, Color, Position, Auto-adjustment, Factory Settings |
| Power Supply | Input: 1 x 12V DC input (w/ external AC/DC adapter) Power Consumption: 15W (typ.) Power Management: VESA DPMS compliant |
| Connectors | 1 x VGA (M12 connector) 1 x USB for touch screen (M12 connector) 1 x 12V DC power input (M12 connector) |
| Mounting | VESA (75 x 75mm) mount Option for panel mount |
| Environmental | Operating Temperature: 0°C to 50°C Storage Temperature: -30°C to 70°C Relative Humidity: 30%-90%, non-condensing IP Rating: Full IP66 |
| Weight | 9.92 lb / 4.5 kg |
| Dimension | 11.81”(W) x 8.66”(D) x 2.07”(H) |
