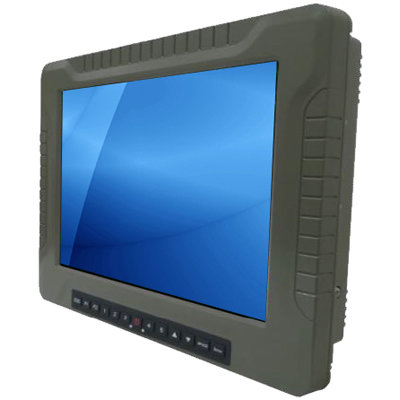

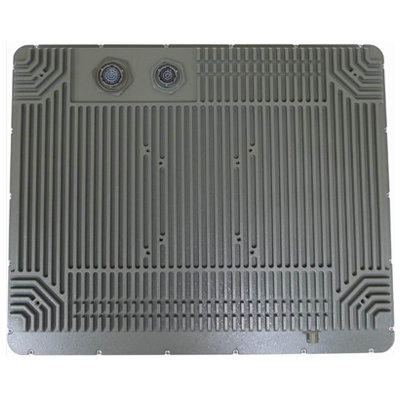

PCM8015
Military-grade 15 inch Panel PC powered by the Atom Dual-Core D510 1.66GHz CPU with a fully IP67 rated rugged enclosure, MIL-STD-810G compliance, and DC power input.
Key Features
- ✓Fully IP67 rated rugged enclosure
- ✓15 inch 1024 x 768 LED backlight monitor
- ✓P-Cap or 5-wire resistive type touch screen monitor
- ✓350-nits high brightness LCD panel, option for 650-nits
- ✓Atom Dual-Core D510 1.66GHz embedded system
- ✓MIL-STD-810G -20ºC to 60ºC wide range working temperature
- ✓1 LAN, 1 USB, 2 COM & VGA video port
- ✓Wide range 18~32V DC power input
PRODUCT EOL NOTIFICATION: PLEASE VISIT RUGGED MILITARY-GRADE PANEL PCS FOR RELATED PRODUCTS.
Panel PC comes with a 15 inch 1024 x 768 350-nits LCD touch screen, Atom D510 1.66GHz embedded CPU, fanless PC cooling system, fully IP67 rated rugged enclosure, 18 to 32V DC input, MIL-STD-810G testing standards, and -20° to 60° wide range working temperature.| Material | Fully IP67 rated rugged enclosure |
| LCD panel | Size: 15” Max. Resolution: 1024 x 768 Brightness (cd/m²): 350 Contrast Ratio: 700:1 Viewing Angle (H/V): 160'(H)/ 140'(V) Backlight: LED Colors: 16.2M, 8-bit |
| Touch Screen | P-Cap or 5-wire resistive type touch screen monitor |
| System | CPU: Atom Dual-Core D510 1.66GHz CPU Memory Slot: DDR2-667 SO-DIMM 2GB Chipset: ICH8M |
| Video input | VGA video output |
| Drive Bay | SSD 64GB |
| Mounting | Panel / VESA mount |
| Connectors | 2 x COM ports, RS-232 1 x USB 2.0 1 x Ethernet ports, 10/100/1000Mbps 1 x VGA video out port 1 x DC Power plug |
| Power supply | Wide range 18~32V DC power input Option for 9~36V DC power input |
| Environmental | Operating Temperature: -20°C to 60°C Storage Temperature: -30°C to 70°C Relative Humidity: 10~95%, non-condensing Vibration: MIL-STD-810G Method 514.6C-3 Shock: MIL-STD-810G Method 516.6 Humidity: MIL-STD-810G Method 507.5-7 High Temperature: MIL-STD-810G Method 501.5-11 Low Temperature: MIL-STD-810G Method 502.5 EMC: MIL-STD-461F, RE102, RS103, CE101, CE102 |
| Weight | 19.84 lb / 9 kg |
| Dimension | 15.75"(W) x 2.70"(D) x 12.99"(H) |
This product does not have configurable options.
Request Custom Quote →
