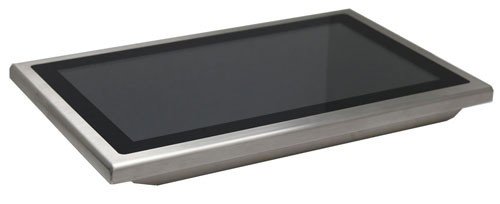

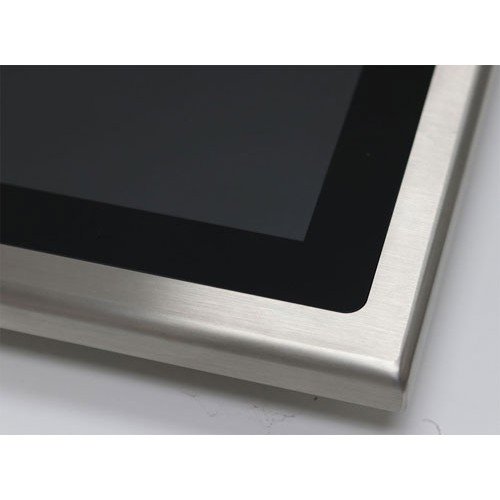

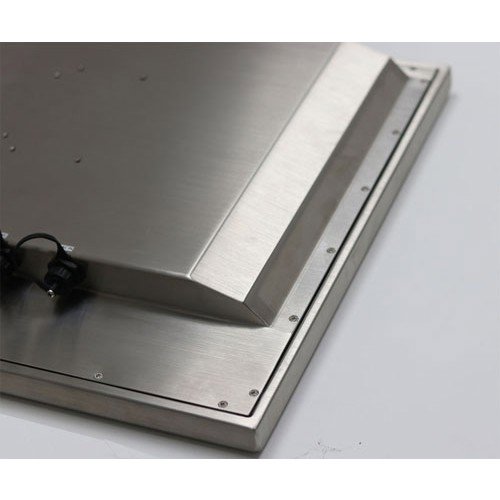

PCH8170
17" full IP67/69K stainless steel panel PC with Celeron N2930 1.83GHz processor, resistive type touch screen, and extended working temperature of -20°C to 60°C
Key Features
- ✓Full IP67/69K rated rugged stainless steel enclosure
- ✓17 inch 1280 x 1024 LED backlight LCD monitor
- ✓5-wire Resistive type touch screen
- ✓Intel Celeron N2930 1.83GHz Processor
- ✓Option for Core i5 5200U / Core i7 6600U
- ✓2 x USB + 1 x LAN + 1 x COM port
- ✓110/240VAC power input, option for DC power input
- ✓Extended working temperature -20°C to 60°C
Panel PC comes with a 17 inch full IP67/69K rated anti-corrosion stainless steel touch panel, Celeron N2930 fanless embedded CPU, 5-wire resistive type touch screen, and extended working temperature of -20°C to 60°C. Option for Core i5 5200U / Core i7 6600U CPU, projected capacitive type screen, high brightness display, optical bonding, and DC power input.
| Material | SUS316 stainless steel IP67/69K rated anti-corrosion stainless steel |
| LCD panel | Size: 17” Max Resolution: 1280 x 1024 Brightness (cd/m²): 400 Contrast Ratio (typ.): 1000:1 Viewing Angle (H/V): -85~85 (H); -80~80 (V) Colors: 16.2M, 6 bits + FRC Option for high brightness / optical bonding |
| Touch screen | 5-wire resistive type touch screen monitor Option for projected capacitive touch screen |
| System | CPU: Celeron N2930 1.83GHz (std) Option for Core i5 5200 / Core i7 6600 Memory: 1 x 4GB DDR3 SO-DIMM (Max.8GB) Storage: 1 x 128GB SSD (Max.250GB) Ethernet: 1 x Gigabit LAN Option for WiFi and Bluetooth module |
| Connectors - C16 / IP Rated | Serial Ports: 1 x RS232 (IP67) USB Ports: 2 x USB (IP67) Ethernet: 1 x RJ45 GbE LAN (IP67) Power: 1 x AC Input (IP66) IP66 rated 6ft extended cables included for each I/O |
| Power Supply | 110/240VAC power input Power Consumption: 30W (typ) Option for 9 to 36V DC power input |
| Mounting | VESA mount (75mm / 100mm) Option for panel mount with gasket |
| Environmental | Operating Temperature: -20°C to 60°C Relative Humidity: 10% to 95%, non-condensing |
| IP Protection | Full-IP67/69K rated protection |
| Weight | 15.43 lb / 7 kg |
| Dimension | 25.98”(W) x 9.44”(D) x 21.65”(H) |
