PCH3991

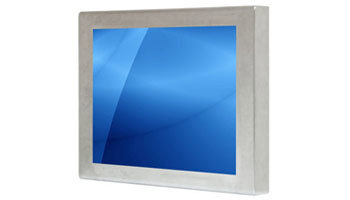

Panel PC - 19 inch 1280 x 1024 resistive type touch screen monitor, Core 2 Duo P8400 2.26Ghz fan less embedded computer, fully IP65 rated waterproof stainless steel enclosure & front bezel.
Key Features
- ✓19 inch 1280 x 1024 350-nit industrial display panel
- ✓Resisitve type touch screen monitor
- ✓Core 2 Duo P8400 2.26GHz fan less embedded computer
- ✓2GB memory & 2.5" SATA HD storage device
- ✓Stainless steel front bezel and aluminum heatsink back cover
- ✓Fully IP65 rated enclosure and front bezel
- ✓11~32V DC power input with adapter
Fully IP65 rated embedded computer integrated 19 inch touch screen monitor with Core 2 Duo P8400 2.26GHz fan less processor and stainless steel full flat front bezel and rugged enclosure that designed to withstand excess water, oil and other harsh work environment.

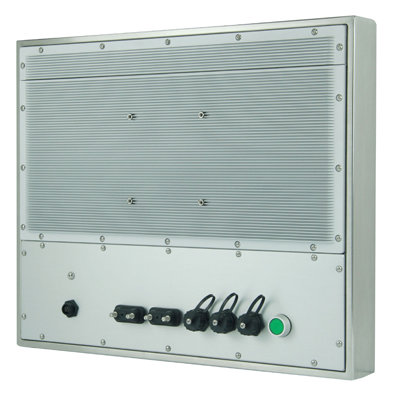

| Material | Stainless Steel Front Bezel Aluminium Extrusion Back Cover |
| LCD Panel | Size: 19 inch Backlight: LED Display Color: 16.7M Brightness: 350 Display Resolution: 1280 x 1024 Viewing Angle (H/V): 170'(H)/ 160'(V) Light Transmission: 80% MTBF: 50,000 (hrs) Option for touch screen typr (resistive) MCS Multi-Display Control Solution, Protective Glass, TC-PAL or NTSC |
| OSD Control (On Screen Display) | Auto-adjusment for brightness, contrast, phase & clock, color, horizontal-position, vertical - position, auto-tune & recall |
| Signal Input | HDMI / DVI-D / VGA / S-VIDEO / RCA |
| Connectors | 1 x Audio, Line-Out 1 x 2.5" SATA HDD 1 X CF Slot (internal) 1 x DC Power Input 1 x VGA DB-15 port 1 x RJ-45 GbE LAN 2 x USB ports 2 x DB-9 RS-232 (COM1-2) connectors |
| Color | Stainless steel |
| Mounting | VESA 100mm x 100mm |
| IP Rating | IP65 |
| Power Supply | DC 11~32V |
| Touch Screen | Option for capacitive or resistive touch screen |
| Certificate | CE, FCC |
| Environmental | Environment Temperature Operating: 0 to 50 degree C Storage: -20 to 60 degrees C Humidity: 10~90% @ 40C non-condensing |
| Dimension | 470mm x 71mm x 389mm |
| Weight | 24.69 lbs |
