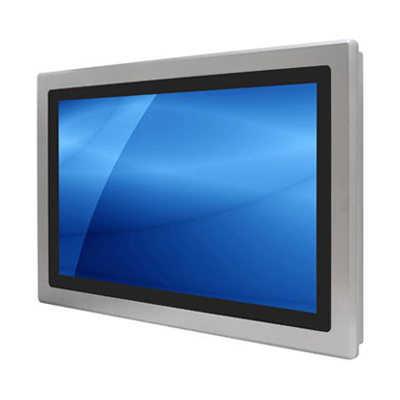

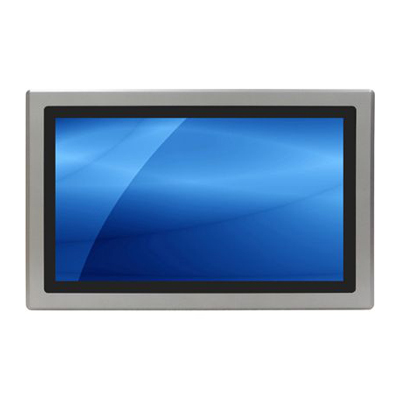

PC9185
18.5" 1366 x 768 fanless panel PC integrated with Intel Celeron or Core i CPU, multiple I/O ports, Resistive touch screen, and a wide range 9 to 36V DC power input.
Key Features
- ✓18.5 inch 1366 x 768 industrial LCD panel
- ✓IP66 compliant aluminum die-casted front bezel
- ✓Integrated Intel Celeron or Core i processors
- ✓Multiple I/O ports including USB, COM, LAN, Audio, and DP
- ✓Resistive touch screen, option for Projective Capacitive touch screen
- ✓Option for 1000-nit high brightness display or optical bonding
- ✓Option for M.2 WLAN/Bluetooth
- ✓Wide range 9 to 36V DC power input
The PC9185 is an 18.5-inch industrial LCD panel designed for demanding environments. Featuring a high-resolution 1366 x 768 display within a rugged IP66 compliant aluminum bezel, it offers flexible touch screen options and powerful Intel Celeron or Core i processors. With extensive connectivity options and a wide range 9 to 36V DC power input, the PC9185 ensures seamless integration and reliable performance in various industrial applications. Additionally, it offers optional high brightness and optical bonding features for enhanced visibility and display quality.
| Material | Aluminum die-casting chassis IP66 rated rugged enclosure |
| LCD panel | Size: 18.5" TFT LCD Max. Resolution: 1366 x 768 Brightness (cd/m²): 350 (A & B model) / 300 (C model) Contrast Ratio: 1000:1 Viewing Angle (H/V): 170° x 160° Colors: 16.7M MTBF (hrs): 50,000 |
| Touch Screen | Type: Resistive touch (Standard) / Projected Capacitive touch (Option) Light Transmission: Resistive 80% / Projectived Capacitive 90% Interface: USB |
| System | CPU: Intel Celeron N2930 (A model) / 8th Gen Core i3-8145UE (B model) / Celeron J6412 (C model) System Chipset: SoC Memory: DDR memory, up to 32GB for select models |
| Storage | A & B model: 1 x SATA MO-297 SSD bay C model: 1 x M.2 B-Key slot (Support SATA3; 2242/2280, Default 2242) |
| Expansion Slot | A & B model: 1 x internal mini-PCIe slot full size C model: 1 x mini-PCIe slot, 1 x M.2 E-key, 1 x Nano SIM Card Holder |

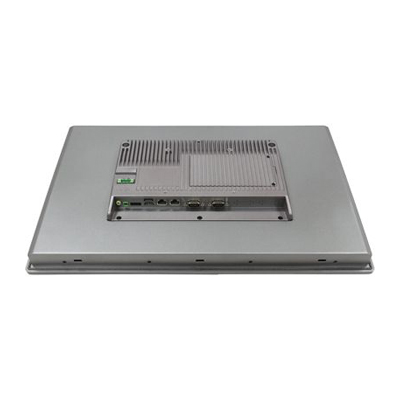

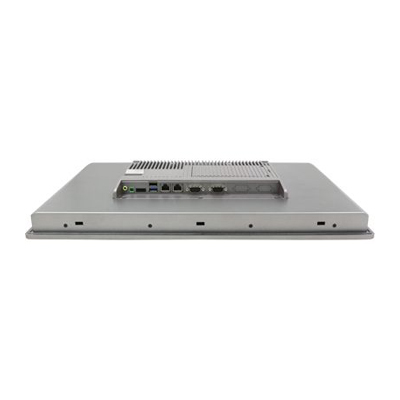

| Connectors | A & B model: 2 x USB 3.0 type A 1 x DB-9 RS-232/422/485, COM1 (Default RS-232) 1 x RS-232 DB-9, COM2 1 x Audio Line Out 2 x GbE LAN RJ-45 1 x 3-pin terminal block for DC power input 1 x 2-pin connector for power on/off button C model: 2 x USB 3.2 Gen2 Type A 2 x USB 2.0 Type A 1 x RS-232/422/485 (Default RS-232) 1 x Audio Line Out 2 x 2.5GbE LAN RJ-45 1 x DP 1 x 3-pin Terminal Block Connector 1 x 2-pin Power Switch Connector |
| Power Supply | Power Input: 9 to 36V DC power input Power Consumption: 45W Option for external AC power adapter |
| Mounting | Panel or VESA (100 x 100mm) mount |
| Environmental | Operating Temperature: 0°C to 50°C (32°F to 122°F) Storage Temperature : -30°C to 70°C (-22°F to 158°F) Humidity: 10 to 90% @ 40°C, non-condensing |
| Certification | CE, FCC Class A |
| Weight | 16.10 lb / 7.3 kg (estimated) |
| Dimension | 19.67"(W) x 2.36"(D) x 12.39"(H) |
