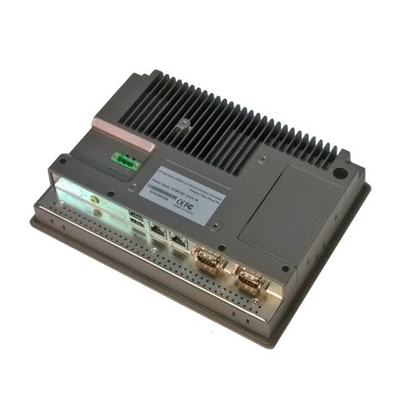

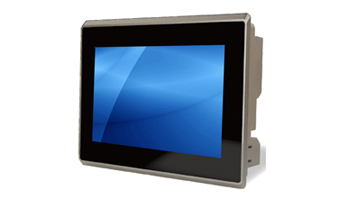

PC9080

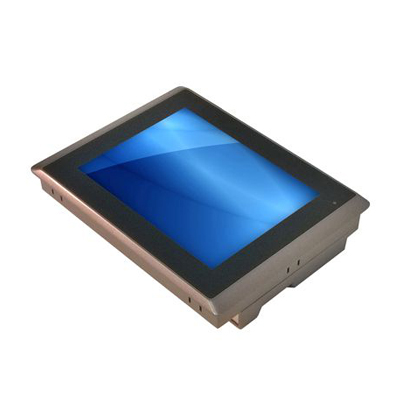

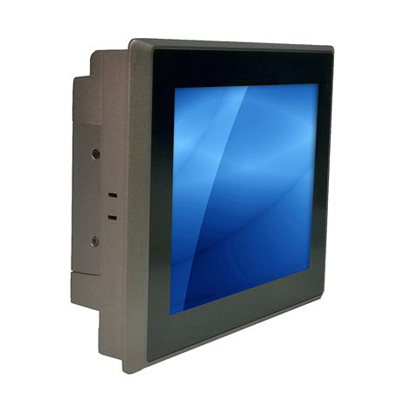

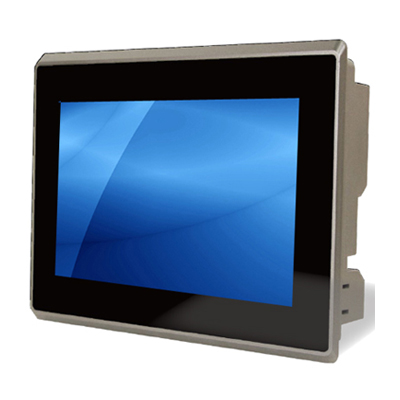

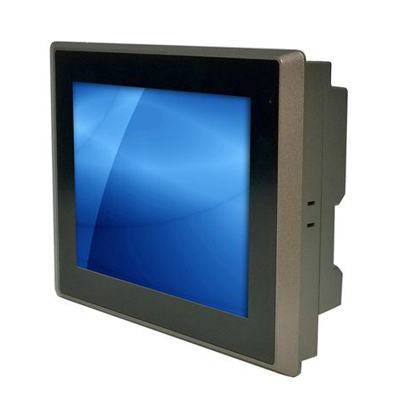

8 inch 800 x 600 fanless panel PC with Celeron N2930 1.83GHz processor, 4GB DDR3L memory, and an IP66 rated flat front bezel with an aluminum die-casting chassis.
Key Features
- ✓8 inch 800 x 600 350-nit industrial LCD panel
- ✓Die-cast aluminum bezel with IP66 rated waterproof front bezel
- ✓Intel Celeron N2930 1.83GHz quad-core CPU with DDR3L memory
- ✓2 x USB 3.0, 1 x RS-232/422/485, 1 x RS-232, 1 x Audio, 2 x GbE LAN
- ✓Resistive type touch screen, option for Projected Capacitive touch screen
- ✓Option for 1000-nit high brightness display or optical bonding
- ✓Option for -20°C to 60°C wide range working temperature
- ✓Wide range 9 to 36V DC power input
The PC9080 is an 8" fanless industrial panel PC powered by the Intel Celeron N2930 1.83GHz quad-core CPU with 4GB DDR3L memory and SATA MO-297 SSD bay. Housed in a die-cast aluminum bezel, the PC features an IP66 rated waterproof front bezel for harsh working environments. It also features a Resistive type touch screen and multiple I/Os including 2 x USB 3.0, 1 x RS-232/422/485, 1 x RS-232, 1 x Audio, and 2 x GbE LAN. The PC9080 is a reliable system designed to meet various industrial standards and IoT applications. Option for Projected Capacitive touch screen, 1000-nit high brightness display, -20°C to 60°C wide operating temperature, and Windows OS.
| Material | Solid aluminum die-casting chassis IP66 compliant front panel |
| LCD Panel | Size: 8 inch TFT LCD Resolution: 800 x 600 Brightness (cd/m²): 350 Contrast Ratio (typ.): 500:1 Viewing Angle (H/V): 140° x 120° Colors: 16.2M MTBF (hrs): 40,000 |
| Touch Screen | Resistive type touch screen Light Transmission: 80% Interface: USB Projected Capacitive type touch screen (option) Light Transmission: 90% Interface: USB |
| System | CPU: Celeron N2930 1.83GHz Memory: Onboard 4GB DDR3L 1333MHz Chipset: SoC |
| Storage | 1 x SATA MO-297 SDD bay |
| Expansion Slot | 1 x internal mini-PCIe slot full size |

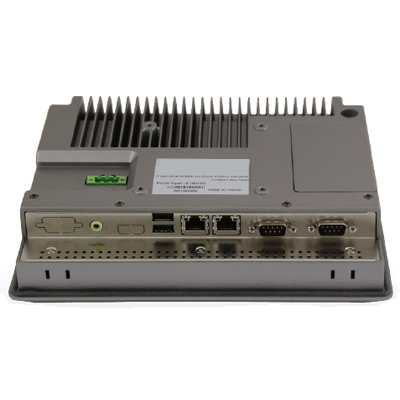

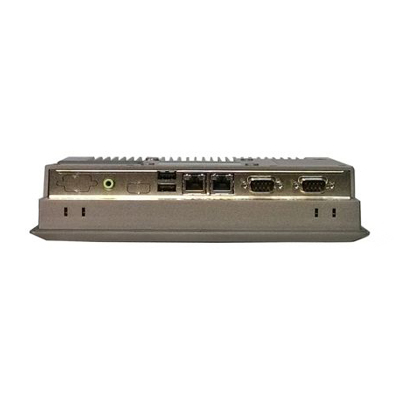

| Connectors | 2 x USB 3.0 1 x DB-9 RS-232/422/485, COM 1 (Default RS-232) 1 X RS-232 DB-9, COM 2 1 x Audio line out 2 x GbE LAN RJ-45 1 X 3-pin DC power input terminal 1 x 2-pin connector for power on/off button |
| Power Supply | Power Input: 9 to 36V DC power input Power Consumption: 26W (Max) Option for external AC power adapter |
| Mounting | Panel or VESA (75mm) mount |
| Environmental | Operating Temperature: 0°C to 50°C Option for -20°C to 60°C wide range working temperature Storage Temperature: -30°C to 70°C Relative Humidity: 10 to 90% @ 40°C, non-condensing |
| Certification | CE, FCC Class A |
| Weight | 4.19 lb / 1.9 kg |
| Dimension | 9.09"(W) x 1.97"(D) x 6.93"(H) |
