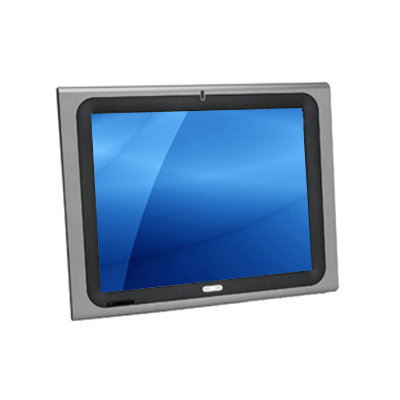

PC7375
Panel PC - 17 inch 1280 x 1024 LCD touch screen, Core-i embedded CPU, Wireless LAN, HDMI video port, IP64 rated ABS plastic front bezel, speaker and ultra slim 3 inch depth enclosure. Panel / wall/ VESA mount.
Key Features
- ✓17" 1280 x 1024 industrial LCD panel
- ✓5-wire resistive-type touch screen monitor
- ✓Core i3 / i5 / i7 embedded computer system
- ✓802.11 b/g/n high speed wireless
- ✓3W internal speaker
- ✓IP64 rated front plastic beze
- ✓versatile mounting solution. panel .wall .stand mounting
HMI Panel PC comes with Core i3 / i5 / i7 embedded computer system, 17-inch 380nit LCD with resistive type touch screen, IP64 rated ABS plastic front bezel, Dual LAN, wireless LAN, HDMI video out port & 3.0" depth slim type panel PC. Option for VESA / panel / wall / desktop mounting.
| Material | Heavy-duty steel |
| LCD Panel | Size: 17 " TFT LCD Max. Resolution: 1280 x 1024 Brightness: 350 Contrast Ratio 800:1 Viewing Angle (H/V):160'(H) / 160'(V) Pixel Pitch (mm): 0.264(H) x 0.264(V) Backlight MTBF: 50000 hrs Colors: 16.7M |
| Main System | CPU: Socket G (PGA989) Intel Arrondale processor Chipset: Intel HM55 RAM: Two 204-pin 800/1066 DDR3 dual-channel SO-DIMMs supported (system max. 8GB) SSD: SATA SDD Watchdog Timer: Software programmable supports 1~255 sec. System reset Audio: AMP 3W + 3W (internal speaker) Expansion Interface: 1 x wireless Lan 802.11 b/g/n module (internal PCle mini card interface), 1 x Bluetooth function (internal USB interface, Bluetooth V2.1+EDR) Drive Bay: 1 x 2.5" SATA HDD bay LED function: 1 x Power on/off LED on front panel |
| Membrane keypad: | LCD on/off, Brightness up/down, Volume up/down (5 keys) |
| Touch Screen | Resistive type 5-wire (touch controller IC is on board) or capacitive type touch screen without HDD bay |
| Connectors | 1 x RS-232 COM port 1 x RS-232/422/485 COM port 2 x RJ-45 for Giga LAN 4 x USB 2.0 1 x Power switch 1 x Reset Button 1 x Audio port (line-out) 1 x VGA 1 x Power jack 1 x HDMI port |
| Power supply | 96W power adapter Input: 90 VAC~264VAC, 50/60 Hz Output: 12 VDC Power requirement: 12 VDC Power consumption: 85W |
| Mounting | Panel, wall, rack, stand and arm VESA 100mm x 100mm |
| Color | Black |
| Environmental | Environment Temperature Operating: 0 to 50 degree C Storage: -20 to 60 degrees C IP level: Front panel IP64 Safety & EMI: CE/ FCC/ CB/ CCC |
| Net Weight | 6.0 kg |
| Dimension | 428mm(W) x 350mm(D) x 76mm(H) |
