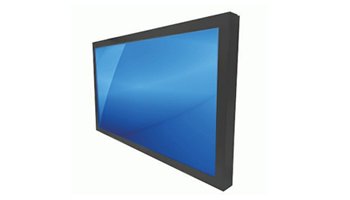

PC5826
24 inch WUXGA 1920 x 1200 touch panel PC with the Core i5-7200U 2.6GHz CPU, IP65 rated flat front bezel, and -10° to 50°C wide range working temperature.
Key Features
- ✓IP65 rated flat front bezel
- ✓24 inch WUXGA 1920 x 1200 LCD
- ✓Resistive type touch screen monitor
- ✓7th generation Core i5-7200U 2.6GHz CPU
- ✓1 x RS232, Dual LAN, 6 x USB, 1 x HDMI
- ✓-10° to 50ºC wide range working temperature
- ✓100/220VAC power input
Fanless Panel PC comes with a 24 inch WUXGA 1920 x 1200 LCD powered by the Core i5-7200 2.6GHz CPU. It features a resistive type touch screen, 900-nit brightness display, IP65 rated flat front bezel, and -10° to 50°C wide range working temperature.
| Material | IP65 rated rugged enclosure |
| LCD Panel | Size: 24" Max. Resolution: 1920 x 1200 Brightness (cd/m²): 900 Contrast Ratio (typ.): 1000:1 Viewing Angle (H/V): 178°/ 178° Active Area (mm): 521.4(H) x 327.0(V) Response Time (ms): 14 Colors: 1.07B |
| System | CPU: Core i5-7200U 2.6Hz Chipset: SoC Memory: 2 x DDR4 SO-DIMM 8GB (std.), max. 32GB Storage: 120GB mSATA SSD Ethernet: i2110AT Controller, i219-LM Connection Graphic: Gen. 9 integrated HD Graphics Real Time Clock: Chipset integrated RTC |
| System Indicator | LED indicators for power and HDD |
| Touch Screen | Resistive-type touch screen, USB |
| WiFi (option) | 802.11 b/g/n 2 x 2 Dual Band |
| Power Supply | 100~220VAC power input Consumption: 30W |
| Mounting | VESA mount Option for panel mount |
| Connectors | 1 x RS232 4 x USB 3.0 2 x USB 2.0 2 x Gigabit Ethernet ports (RJ-45) 1 x HDMI output 1 x 100~220 AC input |
| Environmental | Operating Temperature: -10°C to 50°C Storage Temperature: -30°C to 70°C Relative Humidity: 10% to 95%, noncondensing |
| IP Rating | IP65 |
| Dimension | 22.8”(W) x 13.9”(H) |
This product does not have configurable options.
Request Custom Quote →
