MKD91712

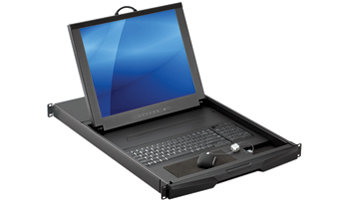

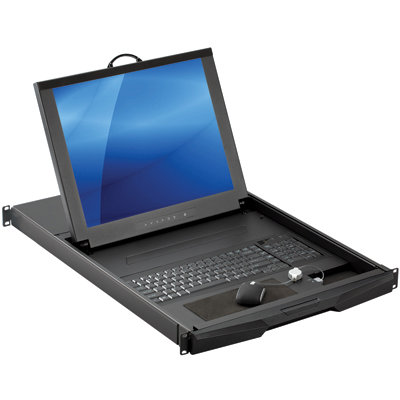

17" 1280 x 1024 rack LCD console with a 104-key keyboard with wire optical mouse, 12-port DVI-D KVM switch, 100/240VAC power input, and a 1U high 25.6" dept rackmount drawer.
Key Features
- ✓1U high 25.6 inch depth rackmount drawer
- ✓17 inch 1280 x 1024 industrial LCD monitor
- ✓104-key keyboard with wired optical mouse
- ✓12-port DVI-D KVM switch
- ✓Option for 6ft or 15ft DVI-D + USB KVM cables
- ✓Slim design with molded front handle and 2-point lock
- ✓Configurable on-screen display (OSD) & hotkey combination
- ✓Auto-sensing 100 to 240VAC, 50 / 60Hz power input
Rackmount LCD console drawer with a 17 inch 1280 x 1024 LED backlight LCD monitor, 104-key keyboard with wired optical mouse, 12-port DVI-D KVM switch, 1 x local user console, and a 1U high 25.6 inch depth rackmount drawer. Option for 6ft or 15ft DVI-D + USM KVM cables.
| Material | Heavy-duty steel |
| LCD Panel | Size: 17 inch Resolution: 1280 x 1024 Brightness (cd/m²): 250 Contrast Ratio (typ): 1000 : 1 Display Area (mm): 337.92H x 270.33V Viewing Angle (H/V): 170° x 160° Colors: 16.7 M Backlight: LED MTBF (hrs): 30,000 |
| Video Input | DVI-D video input |
| Keyboard & optical mouse | 104-key keyboard integrated with wired optical mouse |

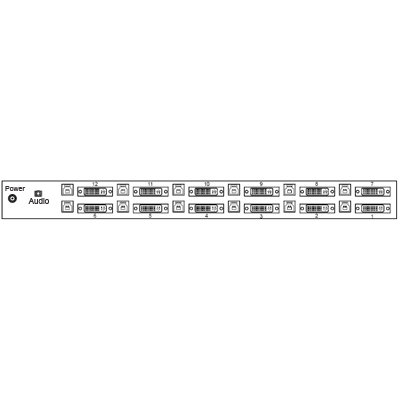

| KVM port | 12 x DVI KVM ports (1 x DVI, 1 x USB 3.0 port for keyboard & mouse) |
| KVM Usage | Advanced user profiles and configurable on screen display (OSD) & hotkey combination Multilingual on screen display menu Supports eight characters password protection |
| Front Panel Control | Power on/off switch OSD (on screen display) 1 x bank number LED indicator 12 x KVM ports LED indicators for on-line / Active / Remote 10 x KVM channel membrane buttons 1 x bank membrane button |
| Cables (Option) | Option for 6ft or 15ft DVI-D + USB KVM cables |
| Power supply | Input: Auto-sensing 100 to 240VAC, 50 / 60Hz Power Consumption: Max 55W, Standby 34W |
| Color | Black (RAL 9005) |
| Environmental | Operating Temperature: 0° to 55°C Storage Temperature: -20° to 60°C Relative Humidity: 5~90%, non-condensing Shock: 10G acceleration (11ms duration) Vibration: 10~300Hz 0.5G RMS random vibration |
| Safety | CE, FCC |
| Weight | 42 lb / 19.1 kg |
| Dimension | 17.4"(W) x 25.6"(D) x 1.73”(H) |
