MKD6117M

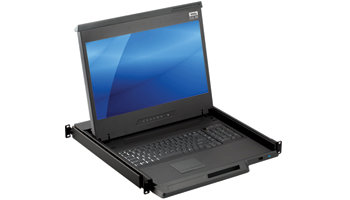

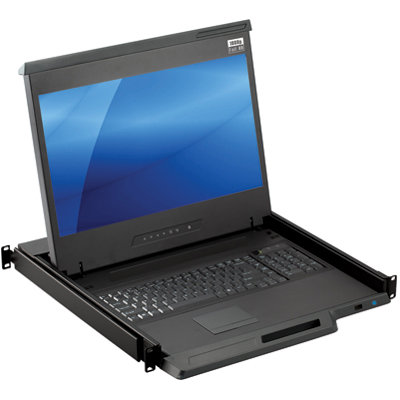

17.3" 1920 x 1080 Full HD rack LCD console with 8 port Matrix KVM switch and 104-key keyboard with touchpad in a 1U high 22.8" depth rackmount drawer.
Key Features
- ✓1U high 22.8 inch depth rackmount drawer
- ✓17.3 inch 1920 x 1080 Full HD industrial LCD monitor
- ✓104-key keyboard with 2-button touchpad
- ✓VGA video input
- ✓8-port Matrix DB-15 KVM switch, option for 16-port KVM switch
- ✓2 x user consoles (1 x local + 1 x remote with receiver)
- ✓Option for 6ft / 10ft / 15ft VGA + USB KVM cables
- ✓Auto-sensing 100 to 240VAC, 50 / 60Hz power input
Rackmount LCD console drawer with 17.3 inch 1920 x 1080 Full HD industrial LCD monitor, VGA video input, 104-key keyboard with touchpad, and a 1U high 22.8 inch depth rackmount drawer. The rack console is integrated with an 8-port Matrix DB-15 KVM switch with 2 x user consoles (1 x local console + 1 x remote console). Option for 16-port Matrix DB-15 KVM switch, remote or IP user console, and VGA + USB KVM cables.
| Material | Heavy-duty steel |
| LCD Panel | Size: 17.3 inch Max. Resolution: 1920 x 1080 Brightness (cd/m²): 300 Contrast Ratio (typ.): 1000:1 Viewing Angle (H/V): 178° x 178° Active Area (mm): 381.888H x 214.812V Colors: 16.7 M, 8-bit Backlight: LED MTBF (hrs): 15,000 |
| Video Input | VGA video input |
| Keyboard & pointing device | 104-key keyboard with 2-button touchpad (combo free) |
| KVM ports | 8 / 16 x Matrix KVM ports (1 x VGA, USB or PS/2 for keyboard & mouse) |
| KVM Usage | Use console access server independently & simultaneously Advanced user profiles and configurable on screen display (OSD) & hotkey combination Multilingual on screen display menu Supports eight characters password protection |
| Front Panel Control | Power on/off switch OSD (on screen display) 1 x bank number LED indicator 8 / 16 x KVM ports LED indicators for on-line / Active / Remote 10 x KVM channel membrane buttons 1 x bank membrane button |
| Local Console | 1 x VGA port (resolution up to 1600 x 1200) 2 x USB ports for keyboard & mouse |

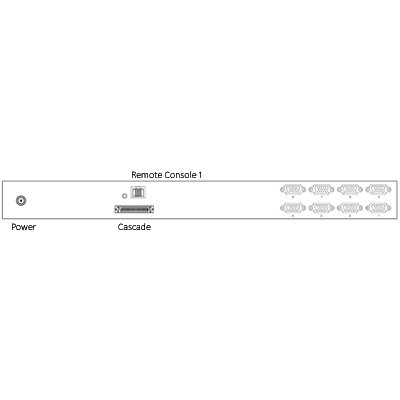

| Remote Console WithReceiver (Option) | Connector: 1 x DB 15-pin VGA port Input Device: 2 x USB ports for keyboard & mouse Remote I/O: 1 x RJ-45 port via Cat6 cable up to 150 meters Cable: 1 x 6ft VGA + USB KVM cable for receiver box Receiver: 1 x receiver box for remote console |
| IP Remote Console (option) | Connector: RJ45 Ethernet User Management: 15-user login, 1 x active user Network Protocol: DHCP / BOOTP / DNS Security: SSL v3, RSA, AES, HTTP / HTTPs, CSR Browser: Internet Explorer, Firefox, Safari, Netscape |
| Cascade port | 1 x in / out proprietary cascade KVM port Extended up to 128 servers by 8-level cascade |
| Cables (Option) | Option for 6ft / 10ft / 15ft VGA + USB KVM cables |
| Power supply | Input: Auto-sensing 100 to 240VAC, 50 / 60Hz Power Consumption: Max. 45W, Standby 34W |
| Color | Black (RAL 9005) |
| Environmental | Operating Temperature: 0°C to 55°C Storage Temperature: -20°C to 60°C Relative Humidity: 5-90%, non-condensing Shock: 10G acceleration (11ms duration) Vibration: 10~300Hz 0.5G RMS random vibration |
| Safety | CE, FCC |
| Weight | 25.5 lb / 11.6 kg |
| Dimension | 17.4"(W) x 22.8"(D) x 1.73”(H) |
