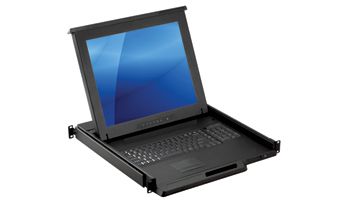

MKD6019D
19" 1280 x 1024 rack LCD console drawer with VGA video input, 104-key keyboard with touchpad, 8-port VGA KVM switch, and a 1U high 24.4" depth rackmount drawer.
Key Features
- ✓19" rack LCD console drawer
- ✓Supports 1280 x 1024 display resolution
- ✓VGA video input
- ✓104-key keyboard with 2-button touchpad - USB
- ✓Integrated 8-port VGA KVM switch, option for 16-port
- ✓Local console, option for remote console or IP console
- ✓Auto-sensing 100 to 240VAC, 50 / 60Hz power input
- ✓Option for 12V / 24V / 48V / 125V DC power input
- ✓1U high 24.4" (620mm) depth rackmount drawer
The MKD6019D is a 19-inch rack LCD console drawer with an integrated 104-key keyboard with touchpad and 8-port VGA KVM switch. The display supports 1280 x 1024 resolution, 250-nits brightness, 1000:1 contrast ratio, and 16.7 million colors. The console supports 8 or 16 DB-15 KVM ports, 1 x local console, and 1 x in / out propriety cascade KVM port.
| Material | Heavy-duty steel |
| LCD Panel | Size: 19 inch Native Resolution: 1280 x 1024 Brightness (cd/m²): 250 Contrast Ratio: 1000:1 Colors: 16.7 M Viewing Angle (H/V): 170° x 160° Response Time (ms): 5 Dot Pitch (mm): 0.294 Display Area (mm): 376.32H x 270.33V Surface Treatment: Haze 25%, Hard-coating Surface Hardness: 3H Backlight: LED MTBF (hrs): 30,000 |
| Keyboard & pointing device | 104-key keyboard with 2-button touchpad - USB interface |
| KVM Port | Number of Ports: 8 or 16 Connector: DB-15 combo connector Connectivity: USB 2-in-1 KVM cable, up to 6, 10 & 15 feet |
| Local Console | Connector: 1 x VGA Input Device: 2 x USB ports for keyboard & mouse |
| Remote Console (Option) | Connector: 1 x DB 15-pin, VGA Input Device: 2 x USB type A for keyboard & mouse Remote I/O: 1 x RJ-45 port via Cat6 cable up to 150 meters Receiver Box: 1 x receiver box for remote console Cable: 1 x 6ft VGA + USB KVM cable for receiver box |
| IP Remote Console (Option) | Connector: RJ45 Ethernet User Management: 15-user login, 1 x active user Network Protocol: DHCP / BOOTP / DNS Security: TLS 1.3, AES, LDAP, Active Directory (AD), HTTP(s) Browser: Chrome, Firefox, Edge, etc. Resolution: 16: 9 - max. 1920 x 1080 / 16:10 - max. 1920 x 1200 / 4: 3 - max. 1600 x 1200 |
| KVM Cascade | 1 x in / out proprietary cascade KVM port Extended up to 128 servers by 8-level cascade |
| KVM Usage | Multilingual OSD: English, France, German, Spanish, Italian, Russian, Chinese, Japanese Hotkey Combination: Scroll-lock, Cap-lock, Num-lock, Alt, Ctrl & Win Security: Password enable & disable, up to 8 users profile for port access PC Selection: Front button, OSD menu & hotkey |
| Front Panel Control | Power on/off switch OSD (on screen display) 1 x bank number LED indicator 8 / 16 x KVM ports LED indicators for Online / Active 10 x KVM channel membrane buttons 1 x bank membrane button |
| Compatibility | Hardware: HP / IBM / Dell PC, Server and Blade Server, SUN / Mac OS Support: Windows / Linux / Unix / Mac OS |
| KVM Cables (Option) | KVM cables not included Option for 6ft / 10ft / 15ft VGA + USB KVM cables |
| Power Supply | Input: Auto-sensing 100 to 240VAC, 50 / 60Hz Power Consumption: Max. 55W, Standby 34W Option for 12V / 24V / 48V / 125V DC power input |
| Color | Black (RAL 9005) |
| Environmental | Operating Temperature: 0°C to 55°C Storage Temperature: -20°C to 60°C Relative Humidity: 5~90%, non-condensing Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft Shock: 10G acceleration (11ms duration) Vibration: 10~300Hz 0.5G RMS random vibration |
| Compliance | CE, FCC, RoHS, TAA Compliant |
| Weight | 30.1 lb / 13.7 kg |
| Dimension | 17.4"(W) x 24.4"(D) x 1.73"(H) |
