KDX81712

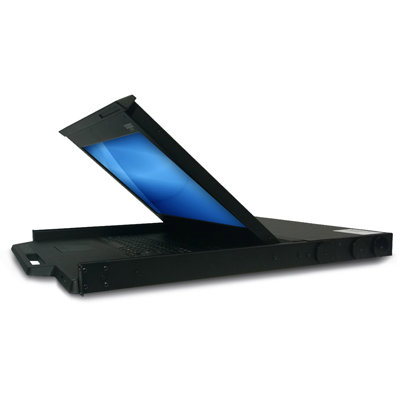

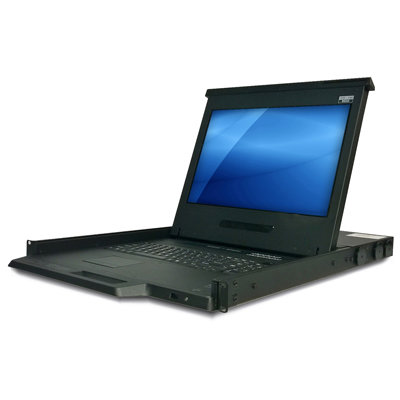

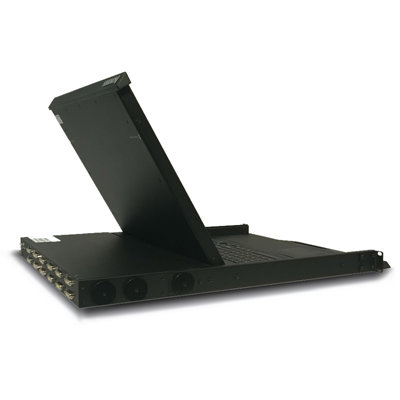

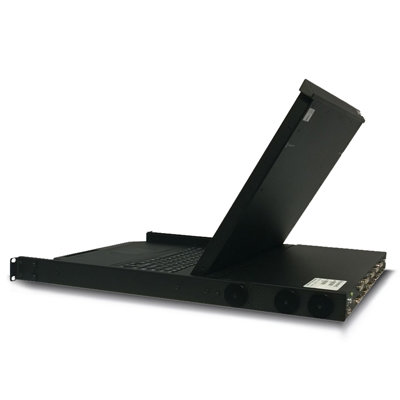

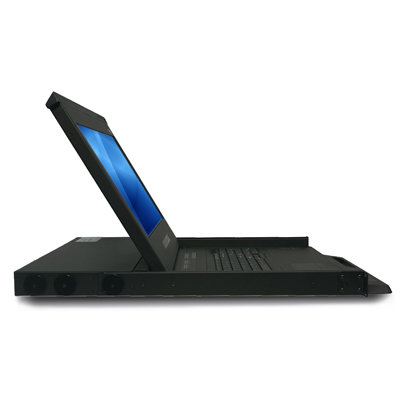

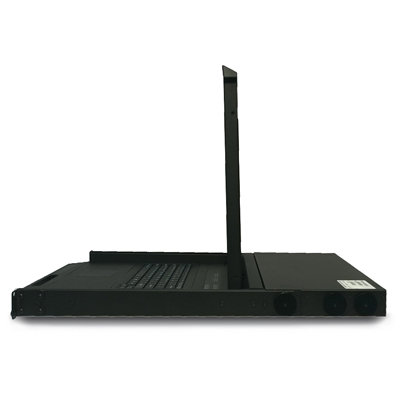

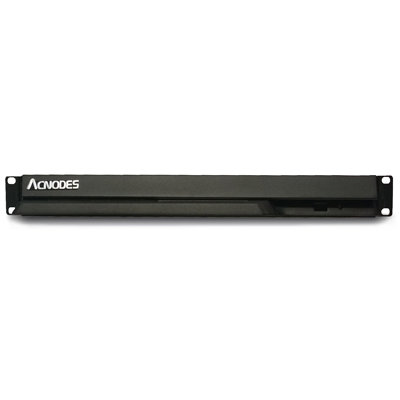

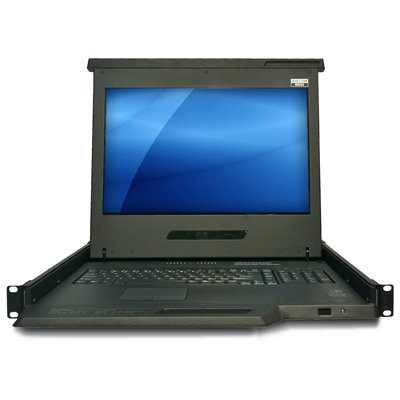

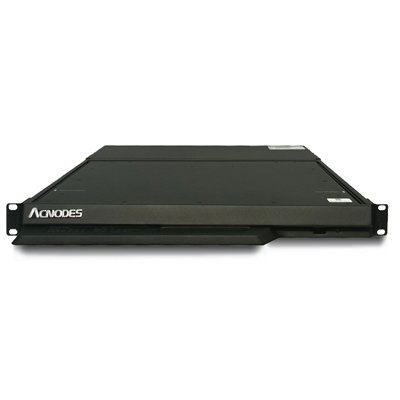

16.2" 1920 x 1200 WUXGA rack LCD console drawer with a 12-port DVI-D KVM switch and 104-key keyboard with touchpad in a 1U high 22.8" depth rackmount sliding drawer.
Key Features
- ✓1U high 22.8 inch depth rackmount drawer
- ✓16.2 inch 1920 x 1200 WUXGA industrial LCD monitor
- ✓104-key keyboard with 2-button touchpad
- ✓12-port DVI-D KVM switch
- ✓Option for 6ft or 15ft DVI-D + USB KVM cables
- ✓Slim design with molded front handle & short depth drawer design
- ✓Configurable on-screen display (OSD) & hotkey combination
- ✓Auto-sensing 100 to 240VAC, 50 / 60Hz power input
Rackmount LCD console drawer with 16.2 inch 1920 x 1200 industrial LED backlight LCD monitor, 104-key keyboard with touchpad, 12-port DVI-D KVM switch, and a 1U high 22.8 inch depth rackmount drawer. Option for DVI-D + USB KVM cables and MAC or SUN keyboard layout.
| Material | Heavy-duty steel |
| LCD Panel | Size: 16.2 inch Resolution: 1920 x 1200 Brightness (cd/m²): 300 Contrast Ratio (typ.) : 800:1 Display Area (mm): 343.8H x 214.9V Viewing Angle (H/V): 178° x 178° Colors: 16.7M, 8-bit Backlight: LED MTBF (hrs): 20,000 |
| Video Input | DVI-D video input |
| Keyboard & pointing device | 104-key keyboard with 2-button touchpad (combo free) |
| Keyboard Layout (Option) | Option MAC or SUN keyboard layout |

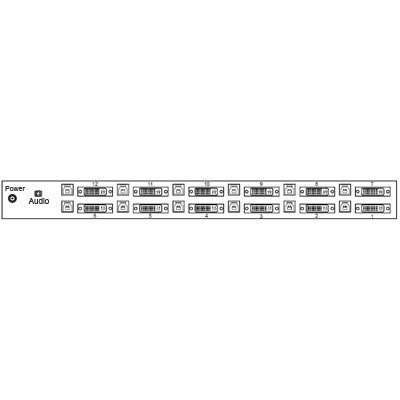

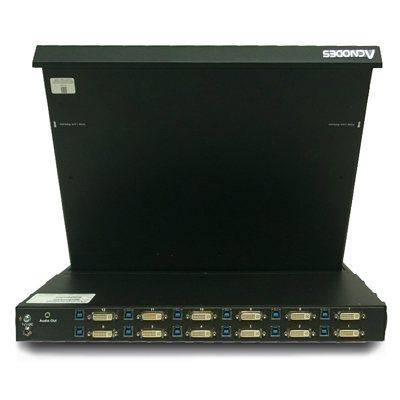

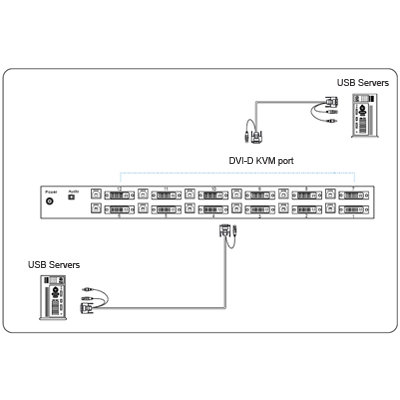

| KVM port | 12 x DVI KVM ports (1 x DVI, 1 x USB 3.0 port for keyboard & mouse) |
| KVM Usage | Advanced user profiles and configurable on screen display (OSD) & hotkey combination Multilingual on screen display menu Supports eight characters password protection |
| Front Panel Control | Power on/off switch OSD(on screen display) 1 x bank number LED indicator 12 x KVM ports LED indicators for on-line / Active / Remote 10 x KVM channel membrane buttons 1 x bank membrane button |
| Cables (Option) | Option for 6ft or 15ft DVI-D + USB KVM cables |
| Power supply | Input: Auto-sensing 100 to 240VAC, 50 / 60Hz Power Consumption: Max. 59W, Standby 29W |
| Color | Black (RAL 9005) |
| Environmental | OperatingTemperature: 0°C to 55°C Storage Temperature: -20°C to 60°C Relative Humidity: 5~90%, non-condensing Shock: 10G acceleration (11ms duration) Vibration: 10~300Hz 0.5G RMS random vibration |
| Safety | CE, FCC |
| Weight | 26.6 lb / 12.1 kg |
| Dimension | 17.4"(W) x 22.8"(D) x 1.73”(H) |
