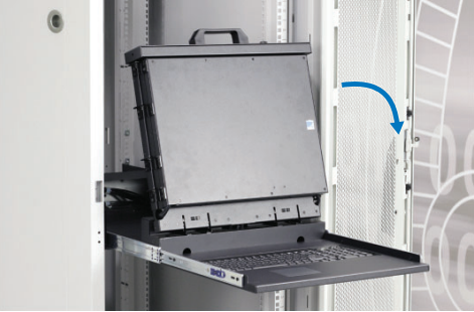

KDR-4K17
17.3" 4K UHD multi-display rackmount console drawer with dual or triple displays, a 104-key keyboard with touchpad, DP 1.2 input, and a 2U high rack enclosure.
Key Features
- ✓2U multi-display rackmount display drawer
- ✓Dual or triple 17.3" 4K UHD industrial LCD panels
- ✓Supports 3840 x 2160 native resolution
- ✓104-key keyboard with touchpad
- ✓DP 1.2 video input w/ attached 6ft DP cable
- ✓Option for HDMI video input (per panel)
- ✓Built-in solid bearing slide rails & dual stereo speaker
- ✓Auto-sensing 100 to 240VAC, 50 / 60Hz power input
- ✓Option for 12V / 24V / 48V DC power input
The KDR-4K17 is a 2U 4K multi-display console drawer featuring 17.3" 4K LCD monitors supporting 3840 x 2160 native resolution, Display Port 1.2 video inputs with attached 6ft DP cables, a 104-key keyboard with touchpad, and 100/240VAC power input in a 2U high rack enclosure.
| Material | Heavy-duty steel |
| LCD Panel | Size: 17.3 inch Resolution: 3480 x 2160@60Hz Brightness (cd/m²): 400 Contrast Ratio (typ.): 1000:1 Display Area (mm): 382.12H x 214.94V Viewing Angle (H/V): 178° x 178° Response Time (ms): Max. 16 Dot Pitch (mm): 0.0995 Colors: 16.7M, 8-bit Surface Treatment: Anti-Glare Surface Hardness: 3H Backlight Type: LED MTBF (hrs): 15,000 |
| LCD Mounting Position | KDR-4K17-2L: Dual display (left hinged mount) KDR-4K17-2R: Dual display (right hinged mount) KDR-4K17-3: Triple display |
| KB & MS | 104-key keyboard with touchpad pointing device Option for trackball pointing device |
| Video Input | Standard: DP 1.2 video input w/ attached 6ft DP cable (per panel) Option: HDMI 2.0 video input (per panel) |
| Front Panel Control | Power on/off switch OSD (on-screen display) |
| Drawer Design | Built-in solid bearing slide rails Mounting Distance: 21.7~31.1 inch (550~790 mm) |
| Power Supply | Input: Auto-sensing 100 to 240VAC, 50/60Hz Consumption Per Panel: Max. 21W, Saving Mode 2W Option for 12V / 24V / 48V DC power input |
| Color | Black |
| Environmental | Operating Temperature: 0°C to 55°C Storage Temperature: -20°C to 60°C Relative Humidity: 5~90%, non-condensing Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft Shock: 10G acceleration (11ms duration) Vibration: 10~300Hz 0.5G RMS random vibration |
| Compliance | CE, FCC, RoHS, TAA |
| Weight | Dual Display: 46.2 lb / 21 kg Triple Display: 56.5 lb / 25.7 kg |
| Dimension | Product: 17.4"(W) x 21.7"(D) x 3.5"(H) Packing: 22.8"(W) x 26.9"(D) x 7.8"(H) |
This product does not have configurable options.
