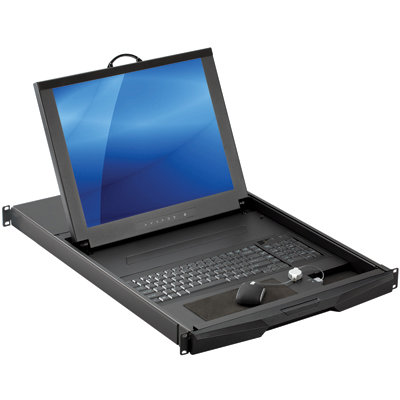

KDN9172
1U 17" rack LCD console drawer with 1280 x 1024 resolution, VGA video input, and a 104-key keyboard with a wired mini optical USB mouse in a 1U high 25.6" depth rack chassis.
Key Features
- ✓1U 17" rackmount LCD console drawer
- ✓Supports 1280 x 1024 resolution
- ✓104-key keyboard with a wired mini USB optical mouse
- ✓VGA video input
- ✓Front OSD (On Screen Display) function
- ✓Slim 1U design with front handle and 2-point lock
- ✓Auto-sensing 100 to 240VAC, 50 / 60Hz power input
- ✓Option for 12V / 24V / 48V / 125V DC power input
The KDN9172 is a 17" LCD rack console drawer with 1280 x 1024 resolution, 104-key keyboard with a wired mini USB optical mouse, and VGA video input. Desgiend for standard racks, it allows you to mount this console in 25.60 inches (650mm) of space for data centers and other IT environments. Options are available for DC power input.
| Construction | Heavy-duty steel |
| LCD Panel | Size: 17 inch Resolution: 1280 x 1024 Brightness (cd/m²): 250 Contrast Ratio (typ): 1000:1 Viewing Area (mm): 337.92H x 270.33V Viewing Angle (H/V): 170° x 160° Colors: 16.7 M Surface Hardness: 3H Backlight: LED MTBF (hrs): 30,000 |
| Keyboard & Optical mouse | 104-key keyboard with a wired mini USB optical mouse |
| Video Input | VGA video input |
| Cable | 1 x 6ft VGA console cable included |
| Mounting Distance | 26 ~ 34.3 inch (660 ~ 870 mm) |
| Power Supply | Input: Auto-sensing 100 to 240VAC, 50/60Hz Consumption (Screen On / Power Saving): Max. 22W / Max. 1W Option for 12V / 24V / 48V / 125V DC power input |
| Color | Black (RAL 9005) |
| Environmental | Operating Temperature: 0°C to 55°C Storage Temperature: -20°C to 60°C Relative Humidity: 5~90%, non-condensing Shock: 10G acceleration (11ms duration) Vibration: 10~300Hz 0.5G RMS random vibration |
| Compliance | FCC, CE, RoHS, TAA Compliant |
| Weight | 31.5 lb / 14.3 kg |
| Dimension | 17.4"(W) x 25.6"(D) x 1.73"(H) |
