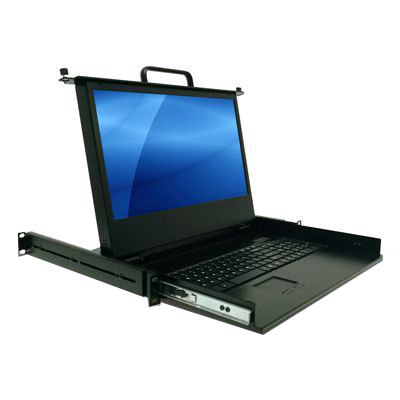

KD9176
17.3 inch rack console with a 1920 x 1080 LED LCD monitor, keyboard and touchpad, and VGA + DVI video input in a 1U high 14.5 inch depth rackmount drawer.
Key Features
- ✓1U 17.3" rackmount LCD console drawer
- ✓Supports 1920 x 1080 Full HD resolution
- ✓Built-in keyboard with touchpad
- ✓VGA + DVI video input
- ✓2W amplified stereo speakers
- ✓OSD (On Screen Display) function
- ✓Slim, rugged aluminum housing fit in short-depth rack or cabinet
- ✓Keylocking mechanism to prevent unauthorized access
- ✓60W 100 to 240VAC full range power supply
NOTICE: PRODUCT EOL. PLEASE VISIT 17" RACK LCD CONSOLES FOR RELATED PRODUCTS.

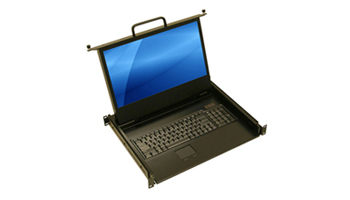

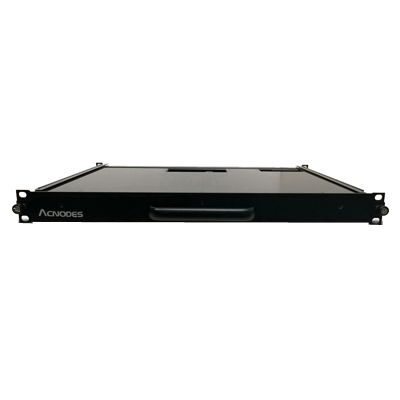

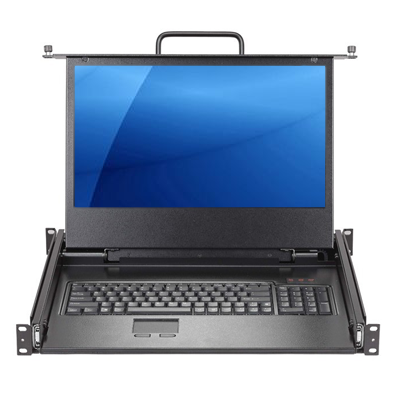

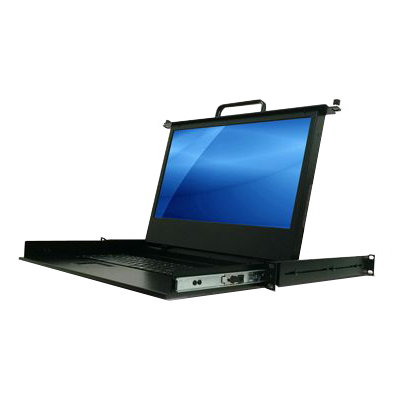

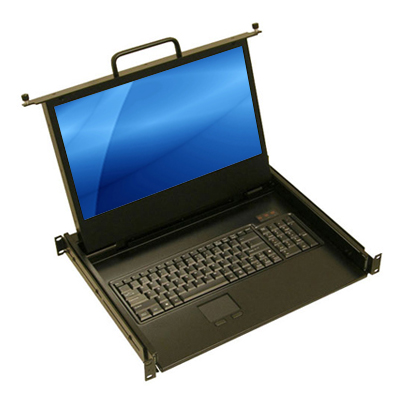

The KD9176 is a 17.3" Full HD 1U rackmount keyboard console with VGA + DVI input. The console combines a keyboard, a touchpad, and an LCD monitor into a slim and rugged aluminum housing for durability. The display is hinged so it can be titled to the most comfortable viewing position. The LCD folds down on top of the keyboard when recessed into the drawer.| Material | Heavy-duty steel |
| LCD Panel | Size: 17.3 inch LED-backlight LCD (16:9) Max. Resolution: 1920 x 1080 Brightness (cd/m²): 300 Contrast Ratio: 400:1 Pixel Pitch: 0.098mm (H) x 0.294mm (W) Viewing Angle: Right-left view: 65° ~ 65° (typical) / Up-down View: 45° ~ 45° (typical) Response Time: 8ms Colors: 262K |
| Keyboard & Touchpad | 104-key keyboard and touchpad PS/2 or USB type selected by KVM cable |
| Plug & play | EDID 1.3 |
| Video Input | VGA + DVI video input |
| Stereo speaker | 2W amplified stereo speakers |
| OSD (On screen display) | 5 x OSD menu buttons for Brightness, Contrast, Phase & Color, H & V position, Auto-tune, Recall & Language |

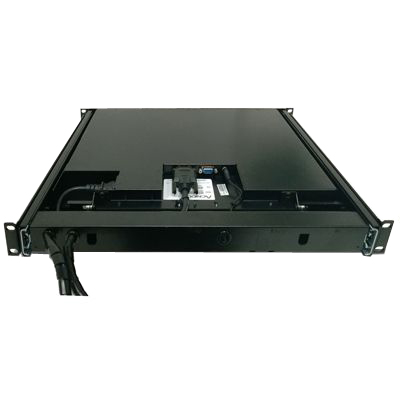

| Connectors | 1 x D-Sub 15 pin (female) for VGA 2 x PS/2 port for Keyboard/Touchpad 1 x Audio out for Built-in speaker |

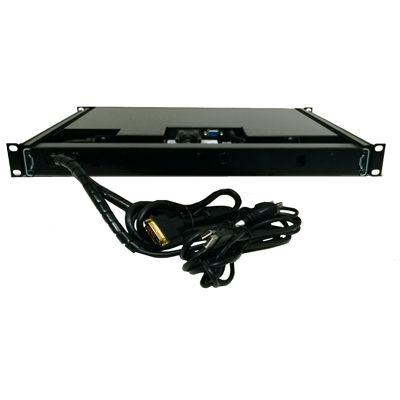

| Cables | 1 x 6’ KVM cable (PS/2 type) or 1 x 6’ KVM cable (USB type) |
| Security Lock | 2 x thumb-lock screws for system security |

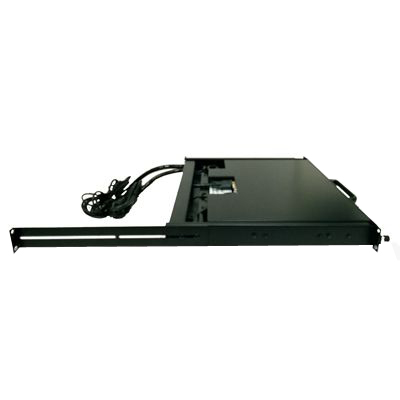

| Drawer Design | High load-rating slide rail with angle bracket extension up to 24” depth |
| Power Supply | 60W 100-240V full-range power supply |
| Color | Black |
| Environmental | Operating Temperature: 0°C to 55°C (32°F to 131°F) |
| Weight | 20 lb / 9.07 kg |
| Dimension | 19"(W) x 14.5"(D) x 1.7"(H) |
This product does not have configurable options.
