KD9150H
16.2" 1920 x 1200 widescreen LCD monitor with VGA + DVI-D + HDMI video input and 104-key keyboard with touchpad in a 1U high 18.9" depth rackmount drawer.
Key Features
- ✓16.2" WUXGA rack LCD console drawer
- ✓Supports 1920 x 1200 native resolution
- ✓VGA + DVI-D + HDMI 1.4 video input
- ✓104-key keyboard with touchpad or trackball
- ✓Option for Resistive or Projected Capacitive touchscreen
- ✓Option for front USB hub, Audio, 3G-SDI input
- ✓Short-depth drawer design of 18.9" (480mm)
- ✓Auto-sensing 100 to 240VAC, 50 / 60Hz power input
- ✓Option for 12V / 24V / 48V / 125V DC power input

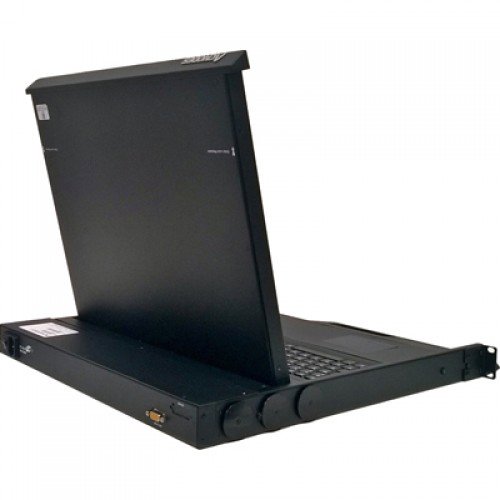

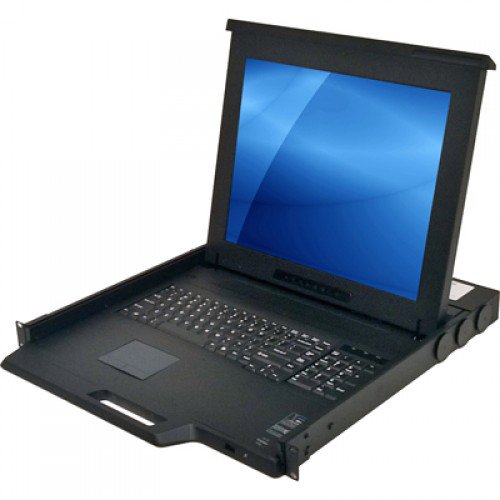

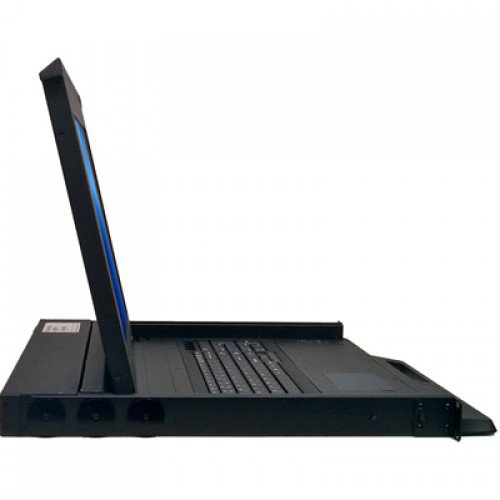

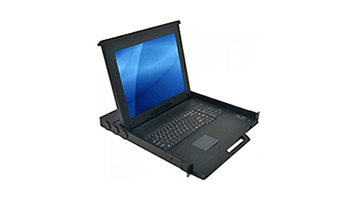

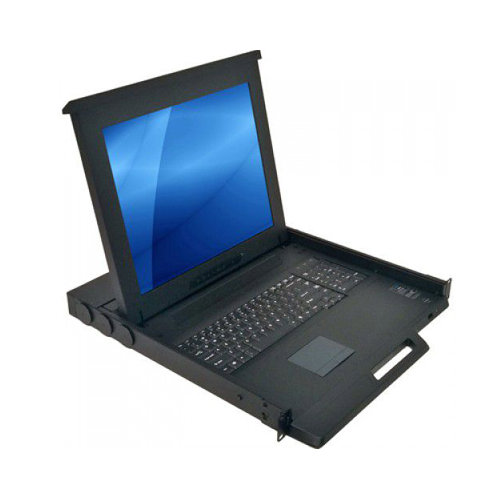

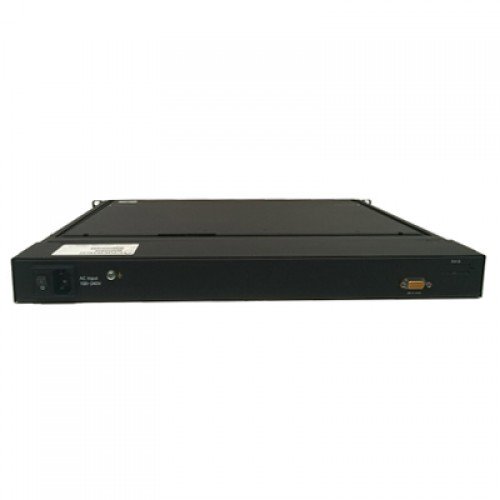

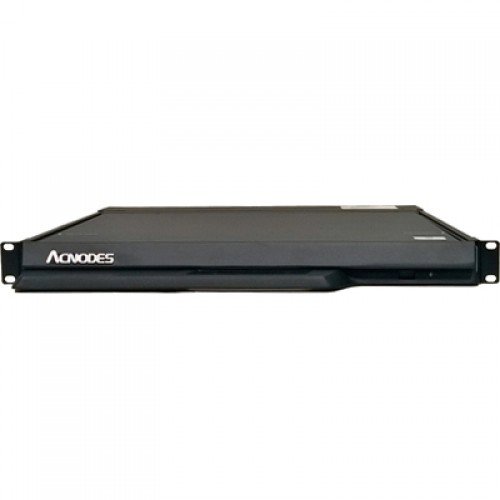

The KD9150H is a 16.2" WUXGA LCD rack console supporting 1920 x 1200 resolution, a 104-key keyboard with a 2-button touchpad, and 100/240VAC power input. The console features VGA + DVI-D + HDMI 1.4 video input, providing users with multiple options for connecting their devices. The KD9150H is integrated into a 1U rack enclosure that is designed for a standard 19" rack mount space for data centers and other IT environments
| Material | Heavy-duty steel |
| LCD Panel | Size: 16.2 inch Native Resolution: 1920 x 1200 Brightness (cd/m²): 300 Contrast Ratio (typ.): 800:1 Viewing Angle (H/V): 178° x 178° Response Time (ms): 30 Dot Pitch (mm): 0.191 Display Area (mm): 343.8H x 214.9V Surface Treatment: Anti-glare, Hard-coating Surface Hardness: 3H Backlight Type: LED MTBF (hrs): 20,000 |
| Keyboard & Pointing Device | 104-key keyboard with 2-button touchpad - USB Option for keyboard with trackball or SUN keyboard |
| Video Input | VGA + DVI-D + HDMI Option for front USB hub, Audio, or 3G-SDI input |
| Touch Screen (Option) | Resistive 1-pt touch screen - USB port Projected Capacitive 10-pt touch screen - USB port |
| Front panel control | Power on/off switch OSD (on screen display) |
| Mounting Distance | 19.3~28.3 inch (490~720 mm) |
| Cable | 1 x 6ft DVI-D USB console cable included |
| Power supply | Input: Auto-sensing 100 to 240VAC, 50 / 60Hz Power Consumption: Max. 34W, Standby 4W Option for 12V / 24V / 48V / 125V DC power input |
| Color | Black (RAL 9005) |
| Environmental | Operating Temperature: 0°C to 55°C Storage Temperature: -20°C to 60°C Relative Humidity: 5~90%, non-condensing Shock: 10G acceleration (11ms duration) Vibration: 10~300Hz 0.5G RMS random vibration |
| Compliance | FCC, CE, RoHS, TAA Compliant |
| Weight | 24 lb / 10.9 kg |
| Dimension | 17.4"(W) x 18.9"(D) x 1.73”(H) * All dimensions stated are subject to change if options are selected / integrated to base model |
This product does not have configurable options.
