KD85174

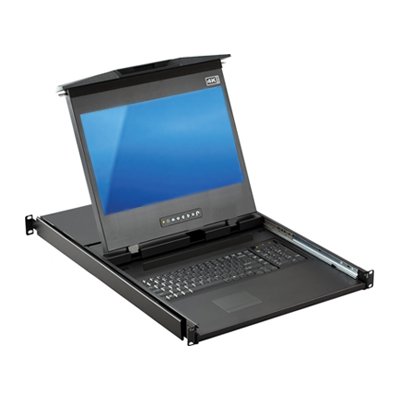

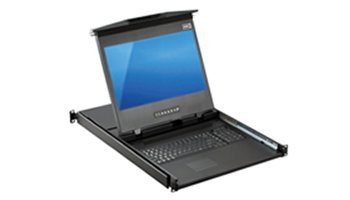

17.3" 3840 x 2160 4K LCD console with an 8 port HDMI KVM switch, dual slide rails, and keyboard with touchpad in a 1U high 25.6" depth rackmount drawer.
Key Features
- ✓1U 25.6" depth rackmount drawer
- ✓17.3" 3840 x 2160 4K LCD panel
- ✓8 port HDMI KVM switch
- ✓HDMI 2.0 + USB ports
- ✓104-key keyboard with touchpad
- ✓Dual slide rail design
- ✓Option for 6ft HDMI or DP KVM cable
- ✓100/240VAC power adapter
NOTICE! : PRODUCT EOL. PLEASE VISIT 4K KVM SWITCH - RACK KVM CONSOLE FOR RELATED PRODUCTS.
Rack console comes with a 17.3 inch 3840 x 2160 4K LCD panel, 8-port HDMI KVM Switch, 104-key keyboard with touchpad, dual slide rails, and a 1U high 25.6 inch depth rackmount drawer. Option for HDMI / DP KVM cable, keyboard with trackball, and DC power input.| Material | Heavy-duty steel |
| LCD Panel | Size: 17.3 inch Resolution: 3480 x 2160 Brightness: 400 Contrast Ratio: 1000:1 Display Area (mm): 382.12H x 214.94V Viewing Angle (H/V): 178° x 178° Response Time (ms): 16 Dot Pitch (mm): 0.0995 Backlight: LED Colors: 16.7M, 8-bit Surface Treatment: Anti-Glare Surface Hardness: 3H MTBF: 20,000 hours |
| Video Input | HDMI 2.0 |
| Drawer Design | Dual slide rails for monitor and keyboard drawer Monitor and keyboard slide out independently |
| Keyboard & pointing device | 104-key keyboard integrated with 3-button touchpad Option for trackball |
| KVM Switch | HDMI 2.0 KVM switch Front button & keyboard hotkey |
| KVM Port | 8 x HDMI 2.0 + USB-B (Video + KB / MS) 16 : 9 – 3840 x 2160 @ 60Hz 16 : 10 – 1920 x 1200 @ 60Hz 4 : 3 – 1600 x 1200@ 60Hz |
| KVM Cable (Option) | 6ft HDMI KVM cable 6ft DP KVM cable |
| Front Panel Control | Power on/off switch OSD (on-screen display) |
| Power Supply | 100/240VAC power input, 50/60 Hz Consumption: Max. 38W Option for DC power input |
| Color | Black |
| Environmental | Operation Temperature: 0° to 55°C Storage Temperature: -20° to 60°C Shock: 10G acceleration (11ms duration) Vibration: 10 ~ 300Hz 0.5G RMS random vibration Relative Humidity: 5-90%, non-condensing Altitude: 16,0000ft, operating; 40,0000ft, non-operating |
| Safety | CE, FCC, RoHS2 |
| Weight | 28.6 lb (Net) / 41.8 lb (Gross) |
| Dimension | 17.4"(W) x 25.6"(D) x 1.73"(H) |
This product does not have configurable options.
Request Custom Quote →
