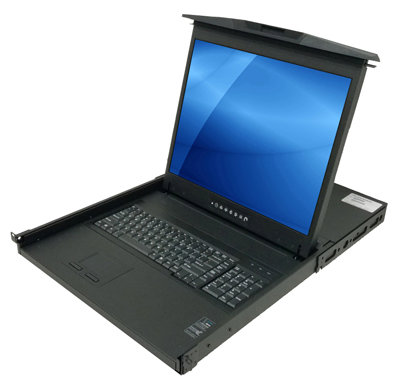

KD8190
19" 1920 x 1024 rack LCD console with VGA video input and 104-key keyboard with touchpad in a 1U high 19.7" depth rackmount drawer.
Key Features
- ✓19" rack LCD console drawer
- ✓Supports 1280 x 1024 native resolution
- ✓VGA video input
- ✓104-key keyboard with touchpad or trackball
- ✓Option for HDMI, DVI-D, BNC, or 3G-SDI input
- ✓Option for Resistive touch screen - USB port

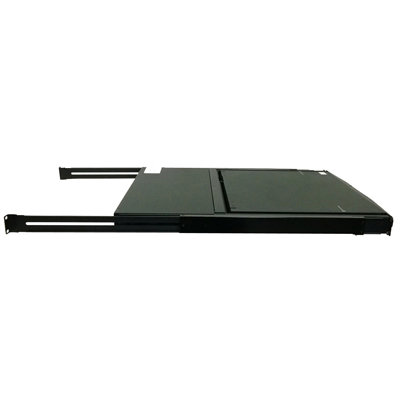

- ✓Short-depth drawer design of 19.7" (500mm)
- ✓Auto-sensing 100 to 240VAC, 50 / 60Hz power input
- ✓Option for 12V / 24V / 48V / 125V DC power input

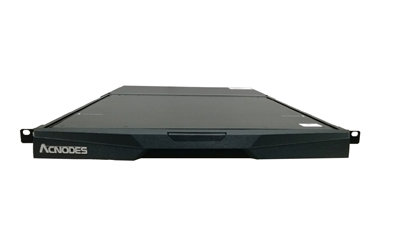

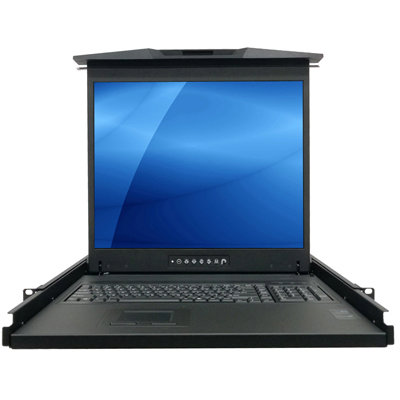

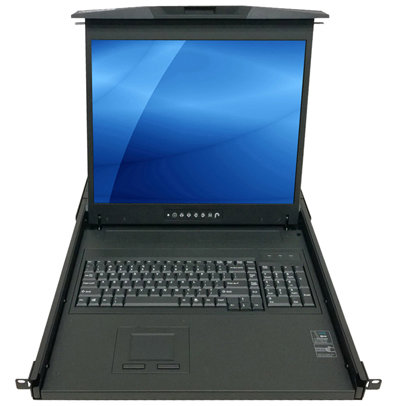

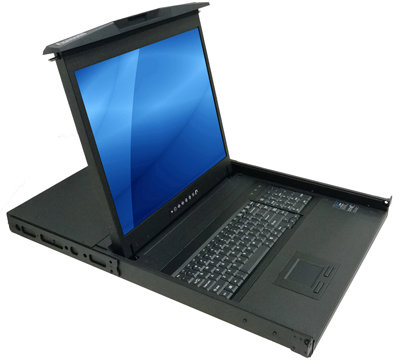

The KD8190 is a 19" rack LCD console supporting 1280 x 1024 native resolution, VGA video input, a 104-key keyboard with touchpad or trackball, and a 100/240VAC power input in a 1U high 19.7" (500mm) short-depth rack drawer. The console features a molded front handle for easy access and a LED touch OSD, providing users with a convenient way to control device settings.
| Material | Heavy-duty steel |
| LCD Monitor | Size: 19 inch Native Resolution: 1280 x 1024 Brightness (cd/m²): 250 Contrast Ratio: 1000:1 Colors: 16.7 M Viewing Angle (H/V): 170° x 160° Response Time (ms): 5 Dot Pitch (mm): 0.294 Display Area (mm): 376.32H x 270.33V Surface Treatment: Haze 25%, Hard-coating Surface Hardness: 3H Backlight: LED MTBF (hrs): 30,000 |
| Keyboard & Pointing Device | 104-key keyboard with touchpad - USB port Option for keyboard with trackball or SUN keys |
| Video Input | VGA video input Option for HDMI, DVI-D, BNC, front USB hub, or 3G-SDI input |
| Touch Screen (Option) | Option for Resistive 1-pt touch screen - USB port |
| Cable | 1 x 6ft VGA USB console cable included |
| Mounting Distance | 20.1 ~ 29.1 inch (510 ~ 740 mm) |

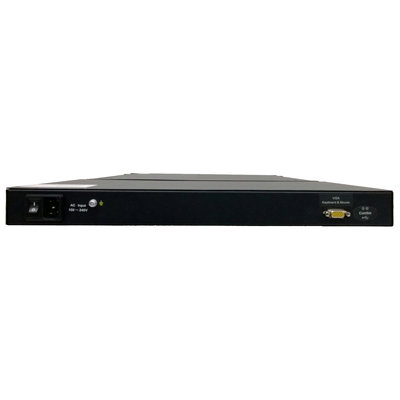

| Power Supply | Input: Auto-sensing 100 to 240VAC, 50/60Hz Power Consumption: Max. 22 Watt, Standby 2 Watt Option for 12V / 24V / 48V / 125V DC power input |
| Color | Black (RAL 9005) |
| Environmental | Operating Temperature: 0°C to 55°C Storage Temperature: -20°C to 60°C Relative Humidity: 5~90%, non-condensing Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft Shock: 10G acceleration (11ms duration) Vibration: 10~300Hz 0.5G RMS random vibration |
| Compliance | FCC, CE, RoHS, TAA Compliant |
| Weight | 27.9 lb / 12.7 kg |
| Dimension | 17.4"(W) x 19.7"(D) x 1.73"(H) * All dimensions stated are subject to change if options are selected / integrated to base model |
