KD8124
24.1" 1600 x 1200 WUXGA LCD monitor with VGA + DVI-D video input, 104-key keyboard with touchpad, and a 1U high pull-out terminal drawer with slide access design.
Key Features
- ✓24.1" WUXGA rackmount LCD console drawer
- ✓Supports 1920 x 1200 native resolution
- ✓VGA + DVI-D video input
- ✓Option for HDMI, Front USB Hub, or 3G-SDI input
- ✓Option for Resistive or Projected Capacitive touchscreen
- ✓104-key keyboard with touchpad or trackball
- ✓Left or right side drawer open design
- ✓1U high 27.2" (690mm) depth drawer design
- ✓Auto-sensing 100 to 240VAC, 50 / 60Hz power input
- ✓Option for 12V / 24V / 48V / 125V DC power input
The KD8124 is a 1U 24.1" WUXGA rackmount LCD console drawer supporting 1920 x 1200 native resolution, VGA + DVI-D video input, a 104-key keyboard with touchpad or trackball, and a 100/240VAC power input. The console features a side-open design with left or right side open design, making it an ideal solution for server rooms or data centers.
| Material | Heavy-duty steel |
| LCD Monitor | Size: 24.1 inch Native Resolution: 1920 x 1200 Brightness (cd/m²): 300 Contrast Ratio (typ.): 1000:1 Colors: 16.7 M )Viewing Angle (H/V): 178° x 178° Response Time (ms): 14 Dot Pitch (mm): 0.27 Display Area (mm): 518.4H x 324V Surface Treatment: Anti-glare, Hard-coating Surface Hardness: 3H Backlight: LED MTBF (hrs): 30,000 |
| Keyboard & Pointing Device | 104-key keyboard with 2-button touchpad - USB port Option for keyboard with trackball or SUN keys |
| Video Input | VGA + DVI-D video input Option for HDMI, Front USB Hub, or 3G-SDI input |
| Integrated KVM (Option) | Integrated KVM switch is only available upon request Option for VGA KVM, USB Hub VGA KVM, DVI-D KVM, Cat6 KVM, or Matrix Cat6 KVM integration |
| Touch Screen (Option) | Resistive 1-pt touch screen - USB port Projected Capacitive 10-pt touch screen - USB port |

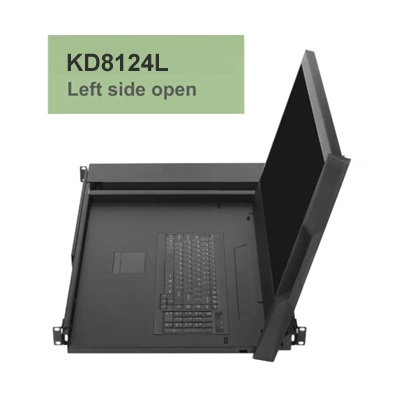

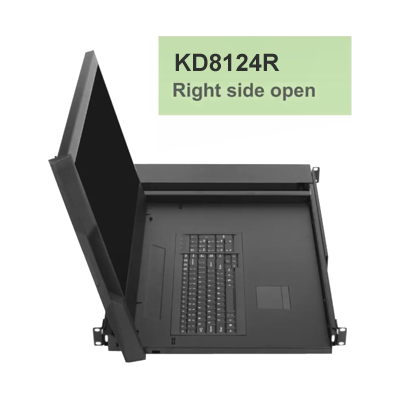

| Drawer design | Pull-out drawer with side access design KD8124: Left side open KD8124R: Right side open |
| Mounting Distance | 26 ~ 35 inch (660 ~ 890 mm) |
| Cable | 1 x 6ft DVI-D USB console cable included |
| Power Supply | Input: Auto-sensing 100 to 240VAC, 50 / 60Hz Power Consumption: Max. 33W, Standby 2W Option for 12V / 24V / 48V / 125V DC power input |
| Environmental | Operating Temperature: 0°C to 55°C Storage Temperature: -20°C to 60°C Relative Humidity: 5~90%, non-condensing Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft Shock: 10G acceleration (11ms duration) Vibration: 10~300Hz 0.5G RMS random vibration |
| Compliance | CE, FCC, RoHS, TAA |
| Weight | 33.7 lb / 15.3 kg |
| Dimension | 17.4"(W) x 27.6"(D) x 1.73"(H) * All dimensions stated are subject to change if options are selected / integrated to base model |
