KD8121
21.5" 1920 x 1080 Full HD rackmount LCD console with VGA + HDMI (no speaker) video input in a 1U high 26.4" depth rackmount pull-out drawer with slide access design.
Key Features
- ✓21.5" Full HD rackmount LCD console drawer
- ✓Supports 1920 x 1080 native resolution
- ✓VGA + HDMI (no speaker) video input
- ✓Left or right side drawer open design
- ✓Option for HDMI, Audio, BNC, S-Video, or 3G-SDI input
- ✓104-key keyboard with touchpad or trackball
- ✓1U high 26.4" (670mm) depth drawer design
- ✓Auto-sensing 100 to 240VAC, 50 / 60Hz power input
- ✓Option for 12V / 24V / 48V / 125V DC power input

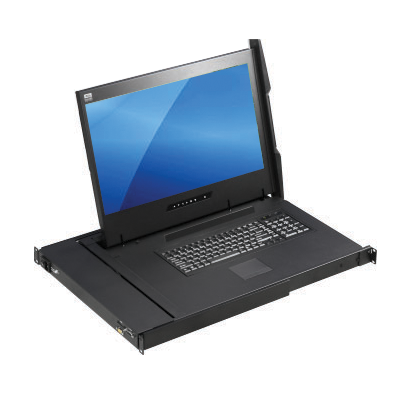

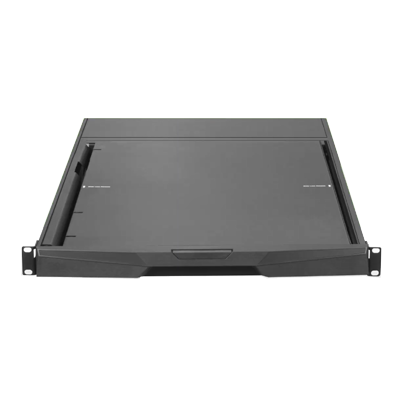

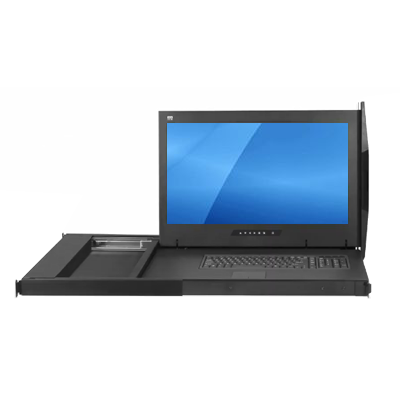

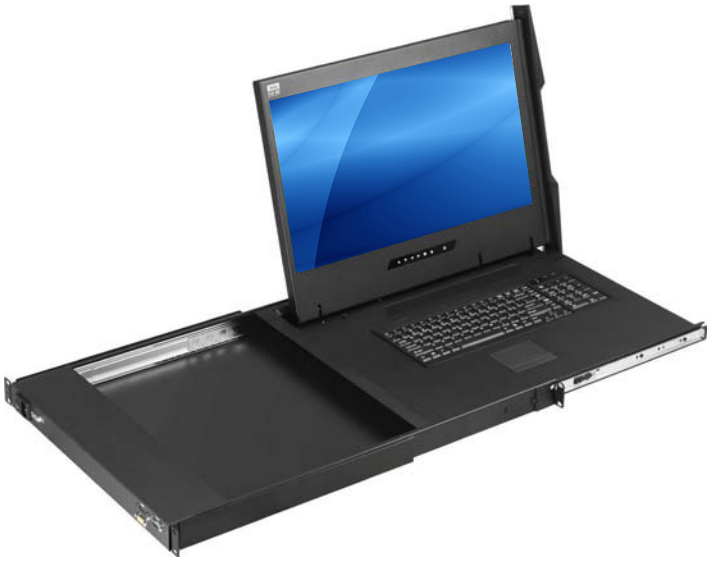

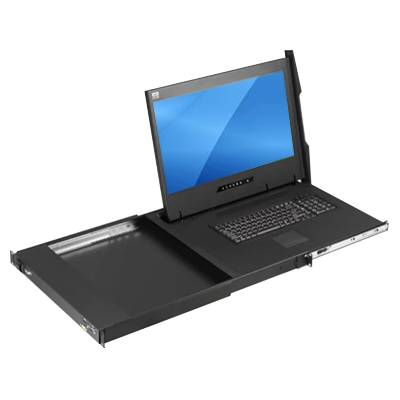

The KD8121, a 21.5" Full HD rack LCD console drawer.
This 1U drawer supports a 1920 x 1080 native resolution and includes VGA and HDMI inputs. It features a LED touch on-screen display (OSD) for easy adjustment of device settings. The unit is integrated with a 104-key keyboard and a 2-button touchpad, and it utilizes a side-open design specifically for installation in space-constrained environments.
| Material | Heavy-duty steel |
| LCD Monitor | Size: 21.5 inch Native Resolution: 1920 x 1080 Brightness (cd/m²): 250 Contrast Ratio (typ.): 1000:1 Colors: 16.7 M Viewing Angle (H/V): 170° x 160° Response Time (ms): 5 Dot Pitch (mm): 0.248 Display Area (mm): 476.64H x 268.11V Surface Treatment: Haze 25%, Hard-coasting Surface Hardness: 3H Backlight: LED MTBF (hrs): 30,000 |
| Keyboard & Pointing Device | 104-key keyboard with 2-button touchpad - USB port Option for keyboard with trackball or SUN keys |
| Video Input | VGA + HDMI (no speaker) video input Option for HDMI, Audio, DP, BNC + S-Video, Front USB Hub, or 3G-SDI |
| Integrated KVM (Option) | Option for 8 / 16 port KVM switch |

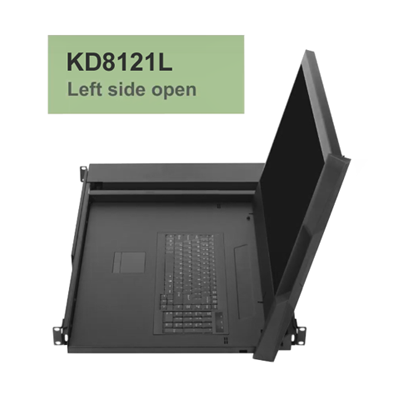

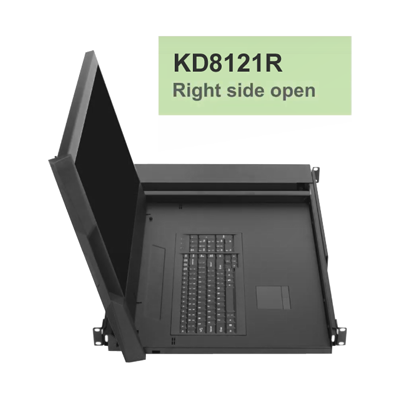

| Drawer Design | Pull-out drawer with side access design KD8121: Left side open KD8121R: Right side open |
| Mounting Distance | 24.8 ~ 33.9 inch (630 ~ 860 mm) |
| Cable | 1 x 6ft VGA USB console cable included |
| Power Supply | Input: Auto-sensing 100 to 240VAC, 50 / 60Hz Power Consumption: Max. 28W, Standby 2W Option for 12V / 24V / 48V / 125V DC power input |
| Environmental | Operating Temperature: 0°C to 55°C Storage Temperature: -20°C to 60°C Relative Humidity: 5~90%, non-condensing Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft Shock: 10G acceleration (11ms duration) Vibration: 10~300Hz 0.5G RMS random vibration |
| Compliance | CE, FCC, RoHS, TAA |
| Weight | 32.3 lb / 14.7 kg |
| Dimension | 17.4"(W) x 26.4"(D) x 1.73"(H) / Console w/ KVM 1.73 x 17.4 x 28.3 in |
