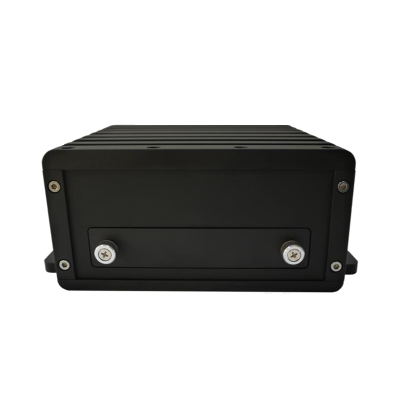

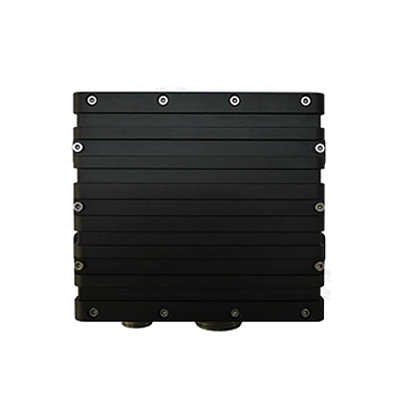

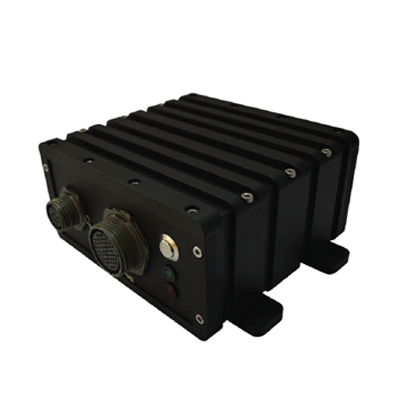

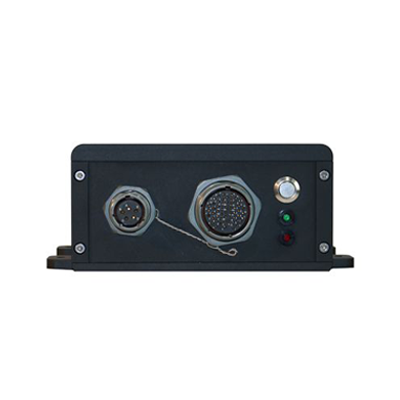

FES9282
Military-grade embedded PC with the Core i7-6600U 2.6GHz CPU, full IP67 rated rugged enclosure, 10G Base-T Ethernet, and -20° to 65°C wide range working temperature.
Key Features
- ✓Fully IP67 rated fanless embedded microbox
- ✓Intel Core i7-7700T 2.9GHz quad-core CPU
- ✓32GB DDR4 2133/2400 MHz memory
- ✓1 x M.2 B-key and 1 x 2.5"removable storage bay
- ✓3 x USB 2.0, 1 x RS-232, 1 x HDMI output
- ✓1 x GbE LAN and 1 x 10G Base-T Ethernet
- ✓-20°C to 65°C wide range working temperature
- ✓MIL-STD-810G & MIL-STD-461F compliance
- ✓9 to 36V DC power input
Military-grade embedded computer powered by the Intel Core i7-7700T 2.9GHz quad-core processor with 1 x 10G Base-T Ethernet, 3 x USB ports, 1 x HDMI output, and 1 x RS-232. The embedded computer can be deployed in harsh working environments as it is designed to withstand wide operating temperatures from -20°C to 65°C and has a fully IP67 rated chassis with MIL-STD-810G/461F compliance.
| Material | Full IP67 rugged enclosure |
| Embedded Board | CPU: Intel Core i7-7700T 2.9 GHz, Quad-Core Chipset: H110/Q170 chipset Memory: DDR4 2133/2400 MHz 32GB Storage: 1 x M.2 B-key, 1 x 2.5"removable storage bay BIOS: AMI 128Mbit Flash WiFi: 802.11 b/g/n/ac (Optional) |
| Ethernet | Intel i211-AT Ethernet Controller Intel i219-LM Ethernet Connection |
| I/O Port | 1 x DC Input - J1 (D38999/24WD5SN) 3 x USB 2.0 - J2 (D38999/24WH53SN) 1 x RS232 - J2 (D38999/24WH53SN) 1 x GbE LAN - J2 (D38999/24WH53SN) 1 x HDMI output - J2 (D38999/24WH53SN) 1 x 10G Base-T Ethernet - J3 (D38999) 1 x Power On/Off button 1 x Power LED indicator 1 x HDD LED indicator |
| Power Supply | 9 to 36V DC input |
| Environmental | Operating Temperature: -20° to 65°C Operating Humidity: 5% to 95%, non-condensing Storage Temperature: -40°C to 80°C Reliability: MIL-STD-810G compliance EMI: MIL-STD-461F compliance Durability: MIL-STD-810G compliance IP Level: Full IP67 |
| Weight | 5 to 6 kg / 11 to 13 lb for identity |
| Dimension | 90.4 (W) x 9.84 (D) x 3.54 (H) inches 250.0 (W) x 250.0 (D) x 90 (H) mm |
