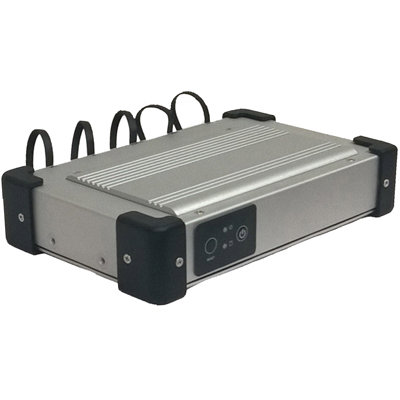

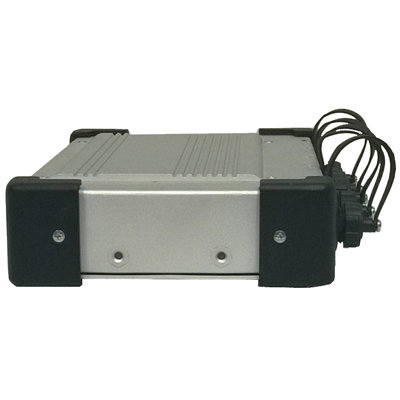

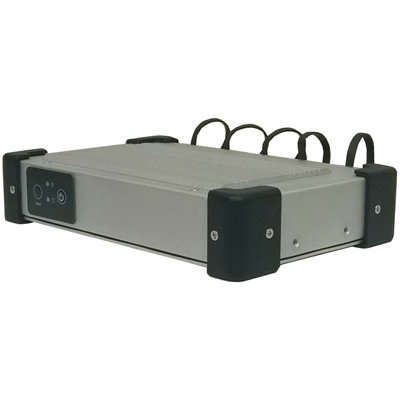

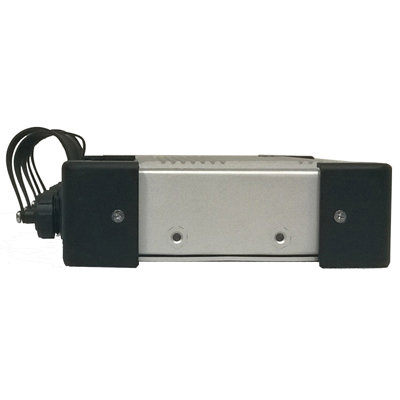

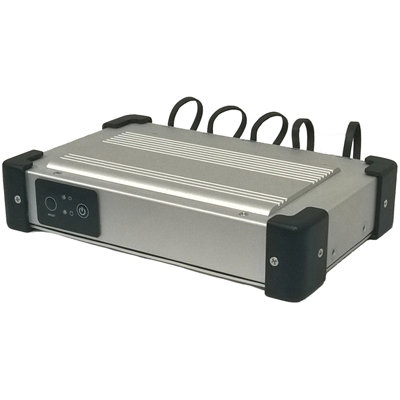

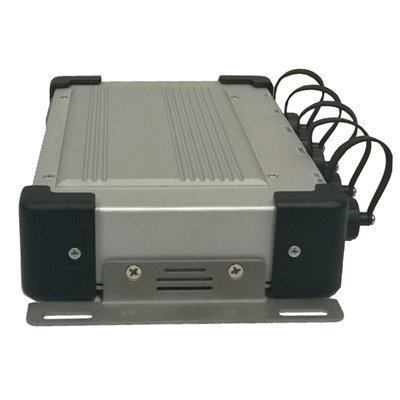

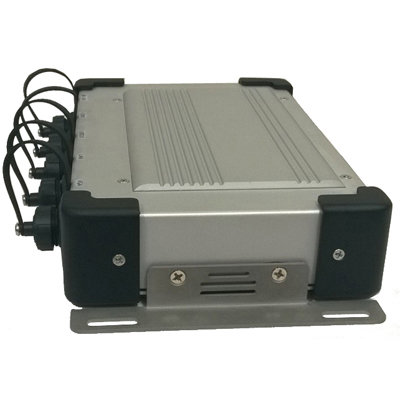

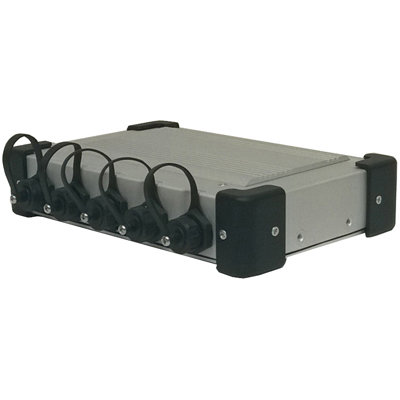

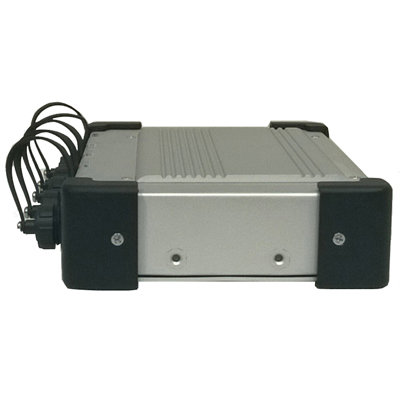

FES9120
Fanless embedded computer powered by Atom Quad Core E3845 1.91GHz processor comes with 1 x VGA video output, 2 x USB, and a fully IP65 rated chassis with extended working temperatures of -25°C to 70°C.
Key Features
- ✓Full IP65-rated industrial microbox small PC
- ✓Intel Atom E3845 Quad-Core 1.91GHz processor
- ✓4GB DDR3L SO-DIMM memory, up to 8GB
- ✓1 x VGA video out + 1 x GbE LAN + 2 x USB ports
- ✓Anodized and deactivated surface coating for anti-corrosion
- ✓4-corner bumper for anti-collision protection
- ✓Extended working temperature range from -25°C to 70°C
- ✓9~36V DC power input, option for external AC power adapter
The FES9120 is an industrial microbox small PC utilizing the Atom Quad Core E3845 1.91GHz processor and Intel SoC Chipset with integrated HD graphics. Designed for rugged environments, the embedded PC features a fully IP65-rated enclosure with 4-corner bumper protection, anodized and deactivated surface coating, and extended working temperature from -25°C to 70°C.
| Construction | Heavy-duty steel Fully IP65-rated enclosure |
| System | CPU Type: Atom Quad Core E3845 1.91GHz Memory: DDR3L 1333MHz SO-DIMM, Std. 4 GB Intel SoC chipset with integrated HD graphics Intel I210 GbE Ethernet |
| Drive Bay | 1 x full size mSATA 64GB SSD |

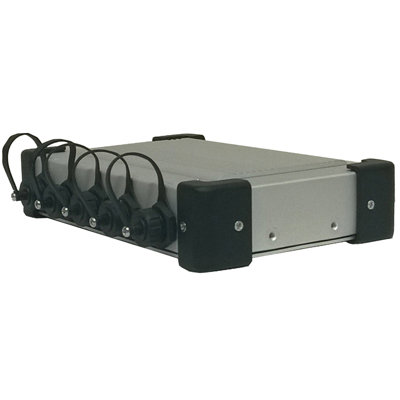

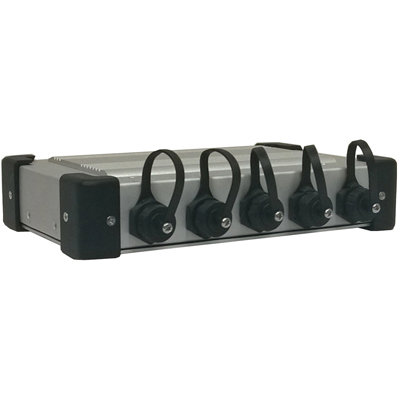

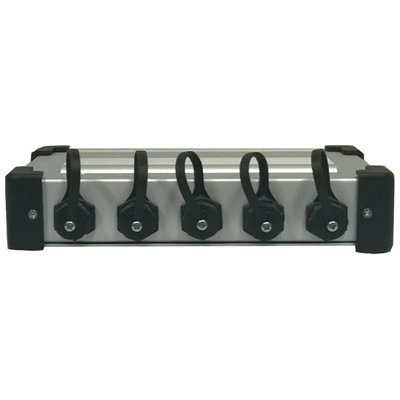

| Rear I/O Port (IP65 rated) | 2 x USB 2.0 1 x RS-232 1 x RJ45 GbE LAN 1 x VGA 1 x Audio, Line out 1 x 9-36V DC-IN Jack |

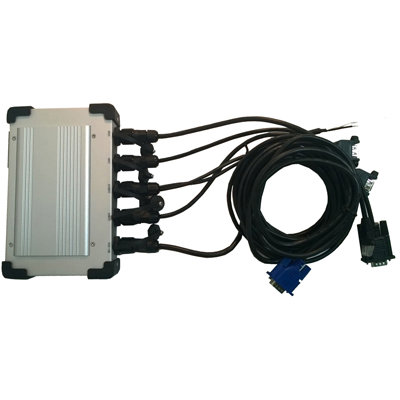

| Cable | 1 x USB cable (One side fully IP65, another USB Type A) 1 x LAN cable (One side fully IP65, another RJ connector) 1 x RS-232 cable (One side fully IP65, another D-sub DB9) 1 x VGA cable (One side fully IP65, another D-sub DB15) 1 x power cable (One side fully IP65, another pig-tail string) |
| System Indicator | LED Indicators for Power & HDD Activity |

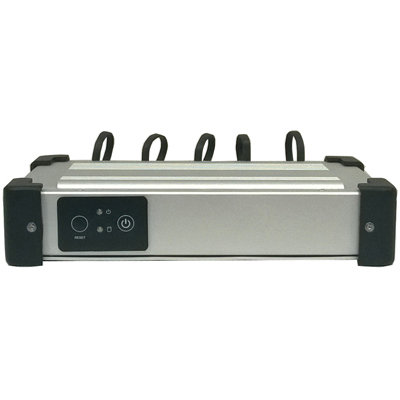

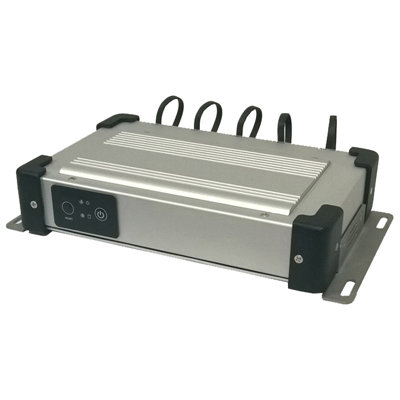

| Front I/O Port | 1 x Power Button 1 x Reset Button |
| Power Supply | Input: 9~36V DC power input Option for external AC power adapter |
| Mounting | Wall mount DIN Rail mount (Optional) |
| Environmental | Operating Temperature: -25°C ~ 70°C (-13°F ~ 158°F) Storage Temperature: -40°C ~ 85°C (-40°F ~ 185°F) Humidity: 5~95%, non-condensing Vibration: 5Hz~500Hz / 5Grms / 3 Axis Shock: 50G, 11ms duration Anti-Collision: 4-Corner bumper protection Anti-Corrosion: Anodized and deactivated surface coating |
| Dimension | 5.26"(W) x 1.59"(H) x 7.81"(D) |
| Weight | 2.43 lb/ 1.10 kg |
This product does not have configurable options.
