FES8099
Embedded PC with Core i3-7100U 2.4GHz CPU, dual GbE LAN, 8 x USB + 2 x COM ports, HDMI + DP ports supporting 4K resolution, and 12V DC power input.
Key Features
- ✓High performance fanless embedded PC
- ✓7th Gen Intel Core i3-7100U 2.4GHz processor
- ✓8GB DDR4 SO-DIMM memory, up to 16GB
- ✓1 x full-sized mSATA slot & 1 x full-sized mPCIe slot
- ✓2 x RS-232, 2 x RJ45 GbE LAN, Max up to 8 x USB ports
- ✓1 x DP + 1 HDMI port (Support 4K Resolution)
- ✓VESA (75 x 75mm) mounting holes on top
- ✓-10°C to 60°C wide range working temperature
- ✓12V DC power input, option for ext120/220VAC power adapter
Fanless embedded computer powered by the Core i3-7100U 2.4GHz CPU comes with 2 x GbE LANs, 8 x USB, 2 x COM ports, HDMI + DP ports supporting 4K resolution, and -10°C to 60°C wide range working temperature.
| Construction | Fanless rugged enclosure |
| System | CPU: 7th Gen. Intel Core i3-7100U 2.4GHz Memory: 8GB DDR4 SO-DIMM sockets, up to 16GB Storage: 1 x full-sized mPCIe slot |
| Expansion Slot | 1 x full-sized mSATA slot |

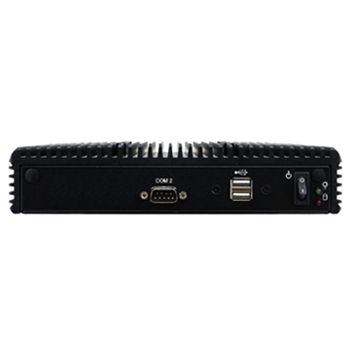

| Front I/O Ports | 2 x USB 2.0, only support Core i3 1 x D-sub/COM 2, RS232(default)/422/485 selectable via BIOS 1 x Power On/Off Button |

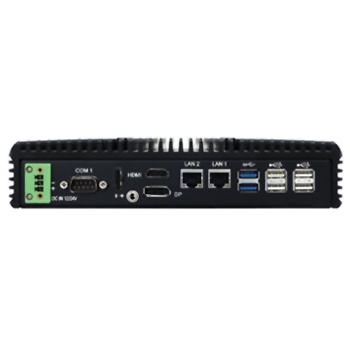

| Rear I/O Ports | 6 x Ports (4 x USB 3.1 Gen1; 2 x USB 2.0) 1 x D-sub/COM 1, RS-232 1 x DP port, supporting 4K resolution 1 x HDMI port, supporting 4k resolution 2 x RJ45 GbE LAN 1 x 4 pin I2C (5V/GND/Date/Clock) 1 x 3.5" line-out phone jack 1 x 3-pin DC power connector |
| Power Supply | Power Input: 12V DC power input Option for external 120/220VAC power adapter |
| Mounting | VESA (75 x 75mm) mounting holes on top |
| Environmental | Operating Temperature: -10°C to 60°C Storage Temperature: -40°C to 80°C Humidity: 20% ~ 95% |
| Compliance | FCC, CE, RoHS |
| Weight | TBD |
| Dimension | 8.58"(W) x 1.77"(H) x 5.82"(D) |
