APW5280
23" FHD panel mount LCD monitor with 1920 x 1080 native resolution, VGA + DVI-D + HDMI video input, VESA (100 x 100mm) mount, and an aluminum front bezel.
Key Features
- ✓28" Full HD industrial LCD monitor
- ✓Supports 1920 x 1080 native resolution
- ✓VGA + DVI-D + HDMI video input
- ✓Option DP, Audio, BNC, 3G-SDI, or MCS control
- ✓Option for video decoding capability up to 1080P
- ✓Option for IP65 / NEMA4 rated front bezel
- ✓VESA (100 x 100mm) mount ready
- ✓Auto-sensing 100 to 240VAC, 50 / 60Hz power input
The APW5280 is a 28" Full HD panel mount LCD monitor supporting 1920 x 1080 native resolution, VGA + DVI-D + HDMI video input, and 100/240VAC power input. Designed to meet professional and environmental demands, the monitor features an aluminum front bezel, improved energy efficiency, and a fanless architecture that provides around-the-clock operation. The APW5280 has a variety of optional upgrades and modules available including IP65 rated front bezel, additional video input modules, video decoding capability up to 1080P, portrait mode module, and DC power input.
| Construction | 8mm aluminum front bezel Option for IP65 / NEMA4 rated front bezel |
| LCD Panel | Size: 28 inch Native Resolution: 1920 x 1080 Brightness (cd/m²): 300 Contrast Ratio: 1000:1 Colors: 1.07B, 10-bit Viewing Angle (H/V): 170°x 160° Response Time (ms): 5 Dot Pitch (mm): 0.181 Display Area (mm): 620.93H x 341.28V Surface Treatment: Anti-glare Surface Hardness: 3H Backlight Type: LED MTBF (hrs): 30,000 |

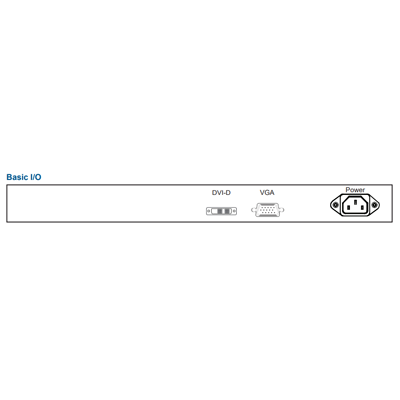

| Video Input | Standard: VGA + DVI-D + HDMI Option: DP, Audio, BNC, 3G-SDI, or MCS multi-display control |
| HDMI Module Up To 1080P (Option) | HDMI decoder module 1080P over IP HDMI receiver module 1080P HDMI quad display module 1080P |
| Rear Panel | Power on/off switch OSD membrane switch |
| OSD Menu Control | OSD membrane switch control for Picture, Position, Color, OSD Set, Reset, PIP, and MISC |
| Mounting Type | VESA (100 x 100mm) mount |
| Cable | 1 x 6ft VGA cable included 1 x Power adapter included 1 x Power cord included |
| Power Supply | Input: Auto-sensing 100 to 240VAC, 50 / 60Hz Power Consumption: Max. 52W, Standby 9W Option for 12V / 24V / 48V / 125V DC power input |
| Environmental | Operating Temperature: 0°C to 55°C Storage Temperature: -20°C to 60°C Relative Humidity: 5~90%, non-condensing Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft Shock: 10G acceleration (11ms duration) Vibration: 10~300Hz 0.5G RMS random vibration |
| Compliance | CE, FCC, RoHS, TAA Compliant |
| Weight | 37 lb / 16.8 kg |
| Dimension | 27.7"(W) x 2.8"(D) x 16.7"(H) |
