APW5170
16.2" WUXGA industrial LCD monitor supporting 1920 x 1200 native resolution, VGA + HDMI (no speaker) input, 100/240VAC power input, and an 8mm aluminum front bezel.
Key Features
- ✓16.2" WUXGA industrial LCD monitor
- ✓Supports 1920 x 1200 native resolution
- ✓VGA + HDMI (no speaker) video input
- ✓Option for Resistive or PCAP touch screen - USB
- ✓Option for front IP65 / NEMA4 rated protection
- ✓Option for video decoding capability up to 1080P
- ✓PIP sub-screen & PBP dual-screen viewing efficiency
- ✓VESA (100 x 100mm) mount ready
- ✓Auto-sensing 100 to 240VAC, 50 / 60Hz power input

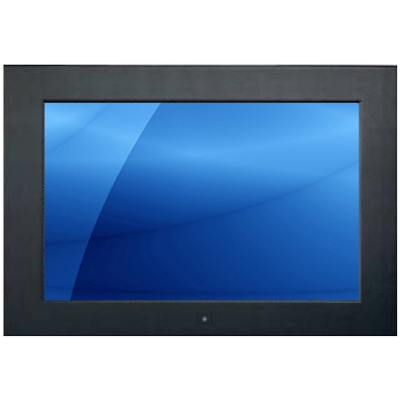

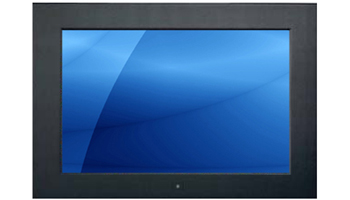

The APW5170 is a 16.2" WUXGA industrial LCD monitor supporting 1920 x 1200 native resolution, VGA + HDMI (no speaker) input, and 100/240VAC power input. Designed to meet professional and environmental demands, the monitor features an aluminum front bezel, improved energy efficiency, and a fanless architecture that provides around-the-clock operation. The APW5170 has a variety of optional upgrades and modules available including an IP65-rated front bezel, touchscreen technology, MCS multi-display OSD control, and DC power input.
| Material | 8mm aluminum front bezel Rear rugged heavy-duty metal construction Option for IP65 / NEMA4 rated front bezel |
| LCD Panel | Size: 16.2 inch Native Resolution: 1920 x 1200 Brightness (cd/m²): 300 Contrast Ratio (typ.): 800:1 Colors: 16.7 M, 8-bit Viewing Angle (H/V): 178° x 178° Response Time (ms): 30 Dot Pitch (mm): 0.191 Display Area (mm): 343.80H x 214.90V Surface Treatment: Anti-glare, Hard-coating Surface Hardness: 3H Backlight Type: LED MTBF (hrs): 20,000 |

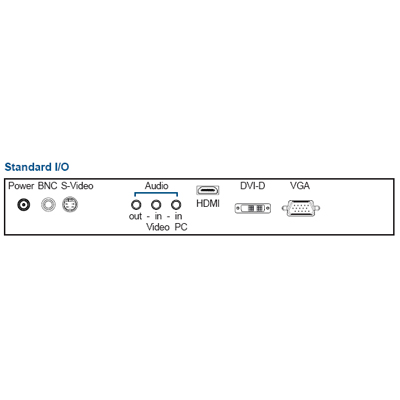

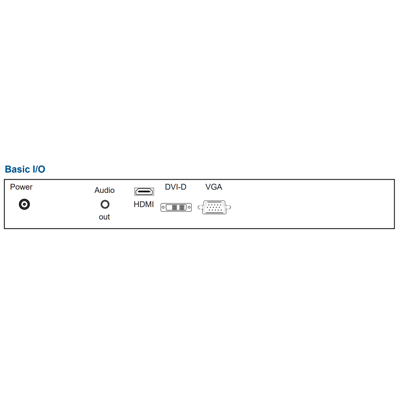

| Video Input | Standard: VGA + HDMI (no speaker) Option: 3G-SDI or MCS multi-display control |
| Touch Screen (Option) | Resistive 1-pt touch screen - USB port Projected Capacitive 10-pt touch screen - USB port Lockable USB connector |
| HDMI Modules (Option) | HDMI decoder module 1080P over IP HDMI receiver module 1080P HDMI quad display module 1080P |
| Rear panel control | Power on/off switch & OSD membrane switch |
| OSD menu control | OSD membrane switch control for Picture, Position, Color, OSD Set, Reset, PIP, and MISC |
| Mounting Type | VESA (100 x 100mm) mount |
| Cable | 1 x 6ft DP cable included 1 x Power cord included |
| Power Supply | Input: Auto-sensing 100 to 240VAC, 50 / 60Hz Power Consumption: Max. 34W, Standby 2W Option for 12V / 24V / 48V / 125V DC power input |
| Environmental | Operating Temperature: 0°C to 55°C Storage Temperature: -20°C to 60°C Relative Humidity: 5~90%, non-condensing Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft Shock: 10G acceleration (11ms duration) Vibration: 10~300Hz 0.5G RMS random vibration |
| Compliance | CE, FCC, RoHS, TAA Compliant |
| Weight | 10.8 lb / 4.9 kg |
| Dimension | 17.3"(W) x 2.1"(D) x 11.5"(H) |
