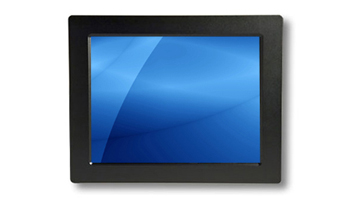

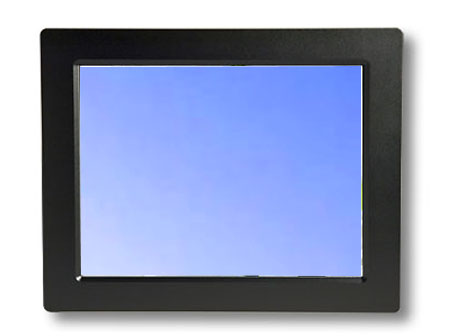

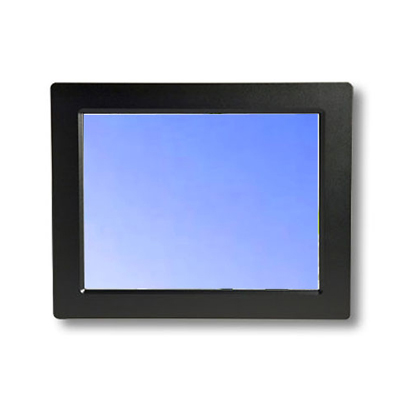

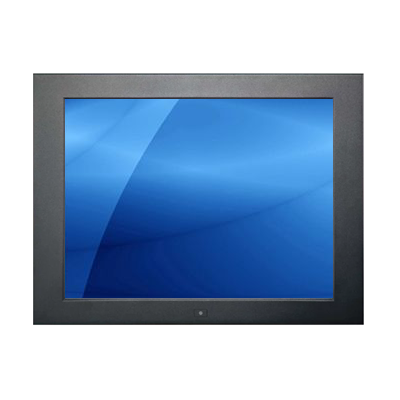

APM5200
20" industrial LCD monitor supporting 1600 x 1200 native resolution, VGA + HDMI (no speaker) video input, VESA (100mm) mount, 100/240VAC power input, and an aluminum front bezel.
Key Features
- ✓20" industrial LCD monitor
- ✓Supports 1600 x 1200 native resolution
- ✓VGA + HDMI (no speaker) video input
- ✓Option for HDMI, Audio, 3G-SDI, or MCS
- ✓Option for Resistive 1-pt touch screen - USB
- ✓Option for front IP65 / NEMA4 rated protection
- ✓Auto-sensing 100 to 240VAC, 50 / 60Hz power input
- ✓Option for 12V / 24V / 48V / 125V DC power input
The APM5200 is a 20" industrial LCD monitor supporting 1600 x 1200 resolution and VGA + HDMI (no speaker) video input. Designed to meet professional and industrial demands, the display features an aluminum front bezel, improved energy efficiency, and a fanless architecture that provides around-the-clock operation. The APM5120 is equipped with a variety of optional features and modules including an IP65 rated front bezel, Resistive touch screen, additional input modules, and DC power input.
| Material | 8mm aluminum front bezel Rear rugged heavy-duty metal construction Option for IP65/NEMA4 rated front bezel |
| LCD Panel | Size: 20 inch Native Resolution: 1600 x 1200 Brightness (cd/m²): 300 Contrast Ratio (typ): 800:1 Colors: 16.7 M Viewing Angle (H/V): 178° x 178° Response Time (ms): 16 Dot Pitch (mm): 0.255 Display Area (mm): 408H x 306V Surface Treatment: Anti-glare, Hard-coating Surface Hardness: 3H Backlight Type: CCFL MTBF (hrs): 45,000 |

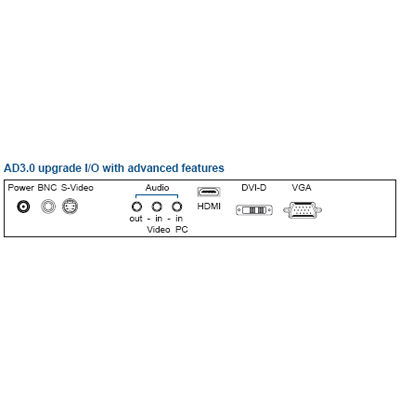

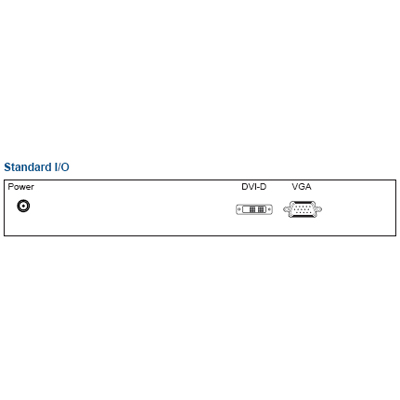

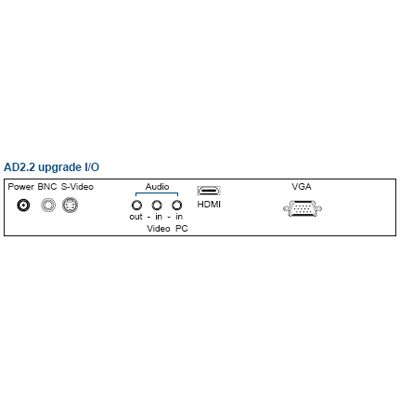

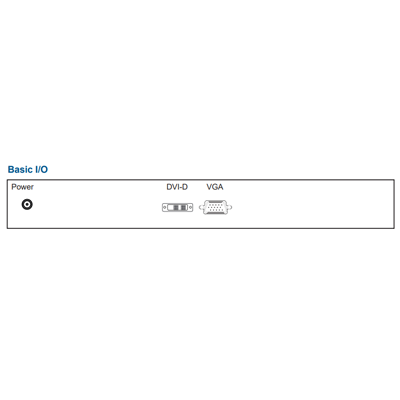

| Video input | Standard: VGA + HDMI (no speaker) Option: HDMI, Audio, 3G-SDI input, or MCS multi-display control |
| Touch Screen (Option) | Resistive 1-pt touch screen - USB port Lockable USB connector |
| Rear panel control | Power on/off switch OSD membrane switch |
| Mounting Type | VESA (100 x 100mm) mount |
| Cable | 1 x 6ft VGA cable included 1 x Power adapter included 1 x Power cord included |
| Power supply | Input: Auto-sensing 100 to 240VAC, 50 / 60Hz Power Consumption: Max. 45W, Standby 4W Option for 12V / 24V / 48V /125V DC power input |
| Environmental | Operating Temperature: 0°C to 55°C Storage Temperature: -20°C to 60°C Relative Humidity: 5~90%, non-condensing Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft Shock: 10G acceleration (11ms duration) Vibration: 10~300Hz 0.5G RMS random vibration |
| Compliance | CE, FCC, RoHS, TAA Compliant |
| Weight | 15.4 lb / 7 kg |
| Dimension | 20.2"(W) x 2.8"(D) x 15.4"(H) |
