APH9220
21.5" sunlight readable display with 1920 x 1080 FHD resolution, VGA + HDMI(no speaker) video input, panel or VESA (100mm) mount, 100/240VAC power input, and an aluminum front bezel.
Key Features
- ✓21.5" high brightness industrial LCD monitor
- ✓Supports 1920 x 1080 native resolution
- ✓1000-nits high brightness sunlight readable display
- ✓VGA + HDMI (no speaker) video input
- ✓Option for DP, BNC, Audio, 3G-SDI, or MCS control
- ✓Option for Resistive or PCAP touch screen - USB
- ✓VESA (100 x 100mm) mount ready
- ✓Auto-sensing 100 to 240VAC, 50 / 60Hz power input
The APH9220 is a 21.5" high brightness sunlight readable monitor supporting 1920 x 1080 FHD resolution, 1000-nits high brightness display, and VGA + HDMI (no speaker) video input. Designed to meet professional and industrial demands, the display features an aluminum front bezel, a sunlight-readable display, improved energy efficiency, and a fanless architecture that provides around-the-clock operation. The APH9220 is equipped with a variety of optional features and modules including IP65 rated front bezel, touch screen technology (Resistive or Projected Capacitive touch screen), auto or manual dimming, additional video signals, MCS multi-screen control, and DC power input.
| Material | 8mm aluminum front bezel Rear rugged heavy-duty metal construction Option for IP65 / NEMA4 rated front bezel |
| LCD Panel | Size: 21.5 inch Native Resolution: 1920 x 1080 Brightness (cd/m²): 1000 Contrast Ratio (typ.): 5000:1 Colors: 16.7 M Viewing Angle (H/V): 170° x 160° Response Tiem (ms): 5 Dot Pitch (mm): 0.248 Display Area (mm): 476.64H x 268.11V Colors: 16.7M Backlight: LED MTBF (hrs): 50,000 |
| Video input | Standard: VGA + HDMI (no speaker) Option: DP, BNC, 3G-SDI input, or MCS multi-display control |
| Touch screen (Option) | Resistive 1-pt touch screen - USB port Projected Capacitive 10-pt touch screen - USB port Lockable USB connector |
| Dimming (Option) | Auto dimming or Dimming switch with IP54 protection |

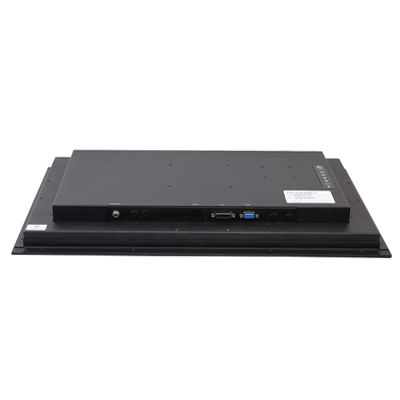

| Rear panel control | Power on/off switch OSD membrane switch |
| Mounting Type | VESA (100 x 100mm) mount |
| Cable | 1 x 6ft VGA cable included 1 x Power adapter 1 x Power cord |
| Power Supply | Input: Auto-sensing 100 to 240VAC, 50 / 60Hz Power Consumption: Max. 32 Watt, Standby 2 Watt Option for 12V / 24V / 48V / 125V DC power input |
| Environmental | Operating Temperature: 0°C to 55°C Storage Temperature: -20°C to 60°C Relative Humidity: 5~90%, non-condensing Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft Shock: 10G acceleration (11ms duration) Vibration: 10~300Hz 0.5G RMS random vibration |
| Compliance | CE, FCC, RoHS, TAA Compliant |
| Weight | 19.8 lb / 9 kg |
| Dimension | 22.7"(W) x 2.3"(D) x 14.5"(H) |
