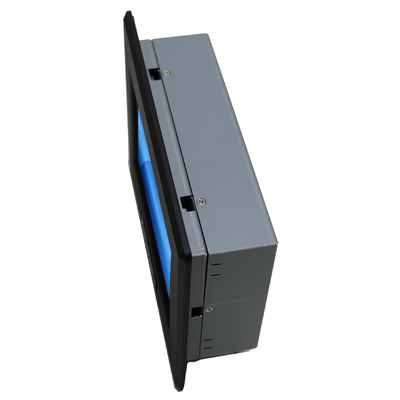

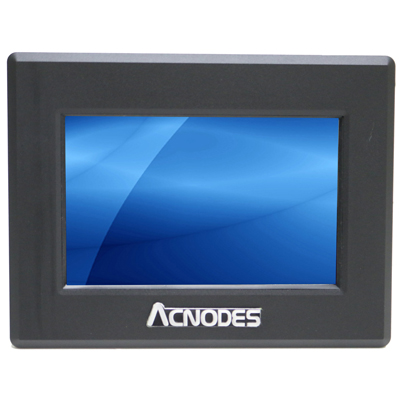

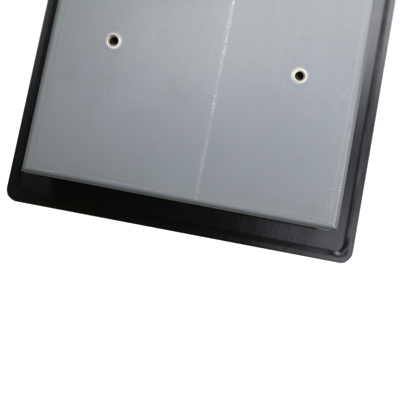

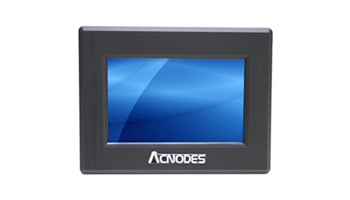

APH8070
7" 800 x 480 1000-nit panel mount LCD monitor with VGA + HDMI(no speaker) video input, IP65 rated front bezel, -20° to 60°C wide range working temperature, and 12V DC power input.
Key Features
- ✓7" high brightness industrial LCD monitor
- ✓Supports 800 x 480 native resolution
- ✓1000-nits high brightness sunlight readable display
- ✓VGA + HDMI(no speaker) video input
- ✓Panel or VESA (75 x 75mm) mount ready
- ✓IP65 dust & water resistant aluminum front bezel
- ✓-20°C to 60°C wide range working temperature
- ✓12V DC power input, option for ext AC power adapter
The APH8070 is a 7-inch industrial monitor supporting 800 x 480 resolution, 1000-nits high brightness display, VGA + HDMI(no speaker) video input, IP65 rated rugged metal front bezel, -20°C to 60C wide range working temperature, and 12V DC power input. Option for Resistive or Capacitive touch screen, S-Video + Composite or HDMI, and external AC power adapter.
| Material | IP65 rated rugged metal front bezel |
| LCD Panel | Size: 7 inch Max Resolution: 800 x 480 Brightness (cd/m²): 1000 Contrast Ratio (typ.): 500:1 Viewing Angle (H/V): 160° x 160° Active Area (mm): 132.48 X 99.36 Pixel Pitch (mm): 0.207 X 0.207 Colors: 16.2M, 8 bits color Backlight: LED |
| LCD Protection | AR glass protection (AR glass will be removed if touch screen option is selected) |
| Touch screen (Option) | Resistive or Capacitive type touch screen - RS-232 |
| Light Sensor (By Request) | Auto dimming light sensor (light sensor at front bezel) - By request only |
| Video input | VGA + HDMI(no speaker) video input Option for S-Video + Composite |

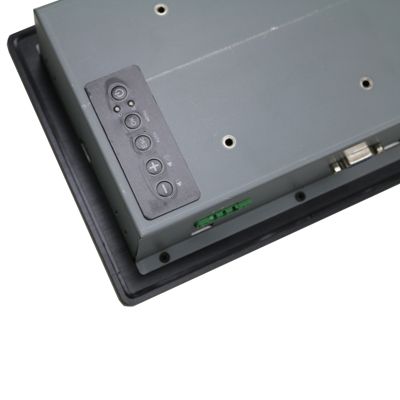

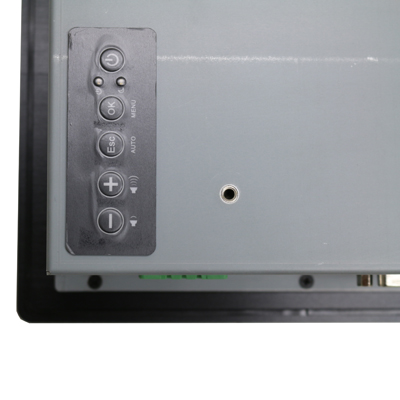

| Rear Panel Control | Power on/off switch 5-key OSD buttons |
| OSD menu control | OSD functions for Contrast, Color, Position, Auto-adjustment, Factory Settings |
| Mounting Type | Panel mount or VESA (75 x 75mm) mount |

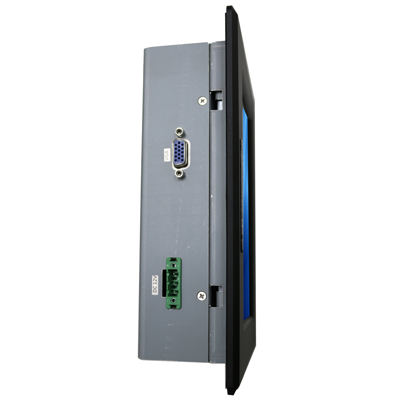

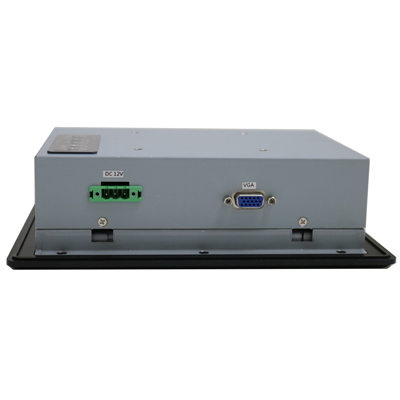

| Connectors | 1 x VGA D-Sub 15 pin 1 x HDMI(no speaker) input 1 x S-Video, Composite (Option) 1 x RS232 for touch screen (Option) 1 x 12V DC power input |
| Power supply | Power Input: 12V DC power input Consumption: 15W typical, normal operation Option for external AC power adapter |
| Environmental | Operating Temperature: -20°C to 60°C (-4°F to 140°F) Storage Temperature: -30°C to 80°C (-22°F to 176°F) |
| Weight | TBD |
| Dimension | 8.58"(W) x 6.48"(H) x 2.39"(D) |
This product does not have configurable options.
