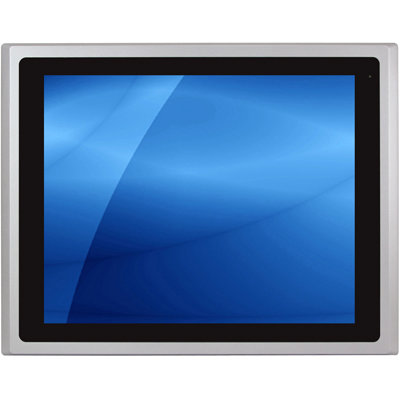

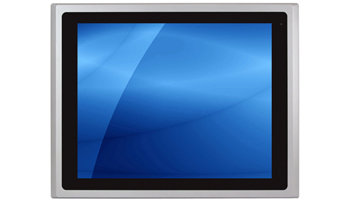

APA9170
17" 1280 x 1024 resistive type touchscreen monitor with VGA + DVI + HDMI + DP video input, IP66 rated flat front bezel, and 9 to 36V DC power input with external AC power adapter.
Key Features
- ✓Aluminum die-casting chassis
- ✓Features flat front bezel with IP66 design
- ✓17 inch 1280 x 1024 Resistive type touch screen monitor
- ✓2.55" short depth metal rugged construction
- ✓Option for Projected Capacitive type touch screen
- ✓VGA, DVI, HDMI, and DP video input
- ✓Panel or VESA (100mm) mount ready
- ✓9 to 36V DC power input w/ external AC power adapter
Industrial monitor with a 17 inch 1280 x 1024 resistive type touchscreen display, VGA + DVI + HDMI + DP video input, and panel or VESA (100mm) mounting holes. The monitor features an aluminum die-casting chassis and IP66 rated waterproof flat front bezel. Option for Projected Capacitive type touch screen and 1000-nits high brightness.
| Material | Solid aluminum die-casting chassis IP66 compliant flat front panel |
| LCD Panel | Size: 17 inch Max Resolution: 1280 x 1024 Brightness (cd/m²): 350, option for 1000-nit Contrast Ratio (typ) : 1000:1 Viewing Angle (H/V): 170° x 160° Colors: 16.2M MTBF (hrs): 30,000 |
| Video input | 1 x VGA 1 x DP 1 x DVI-D (share with HDMI) 1 x HDMI (share with DVI-D) |
| Touch screen | Resistive type touch screen monitor with USB port (std) Option for Projected Capacitive type touch screen monitor with USB port |
| Rear panel control | Power on/off switch OSD membrane switch |
| Mounting Type | Panel mount or VESA (100mm) mount |

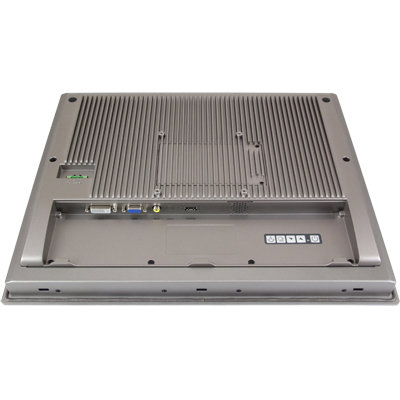

| Connectors | 1 x VGA port 1 x DP port 1 x DVI-D port (share with HDMI) 1 x HDMI port (share with DVI-D) 1 x USB Type B for touchscreen 1 x 3-pin terminal block DC power input 1 x 2W speaker (option) |
| Power supply | Power Input: 9~36V DC power input with external AC power adapter Power Consumption: Max. 11W |
| Environmental | Operating Temperautre: 0°C to 50°C Storage Temperature: -30°C to 70°C Relative Humidity: 10~90% @ 40°C, non-condensing |
| Certification | CE/FCC, Class A |
| Weight | 13.23 lb / 6 kg |
| Dimension | 17.28"(W) x 13.70"(H) x 2.55"(D) |
