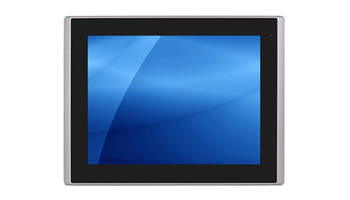

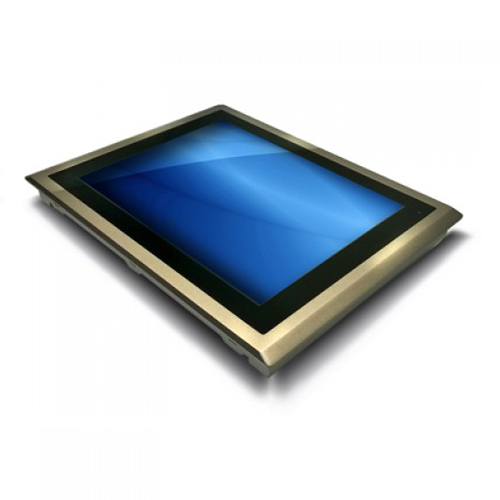

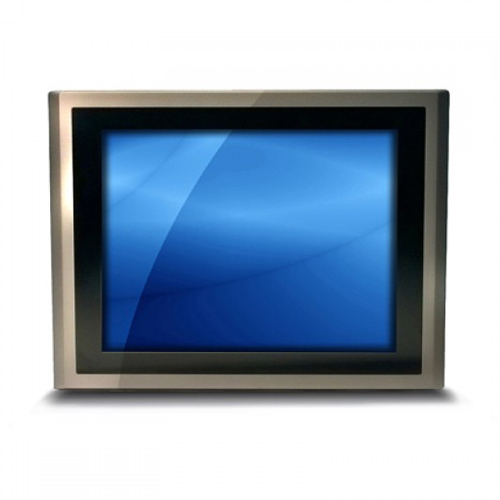

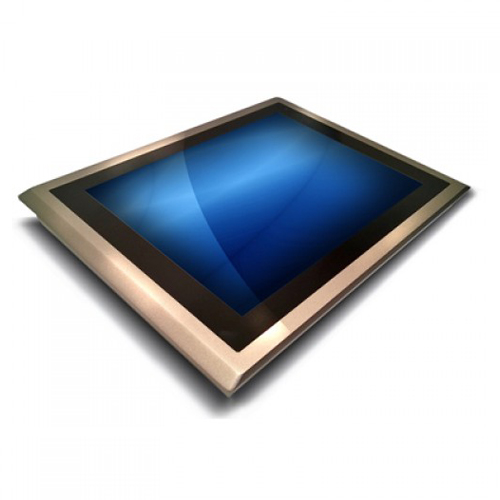

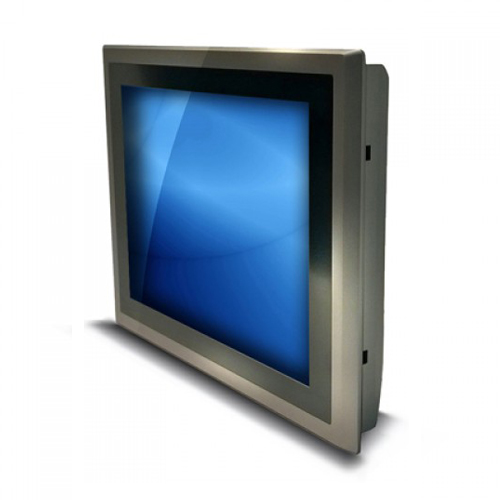

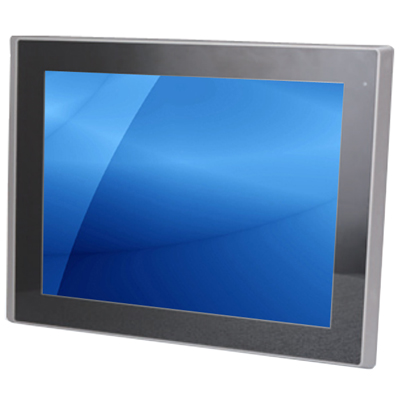

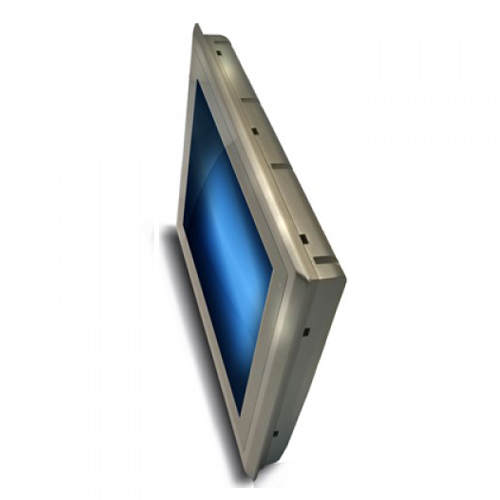

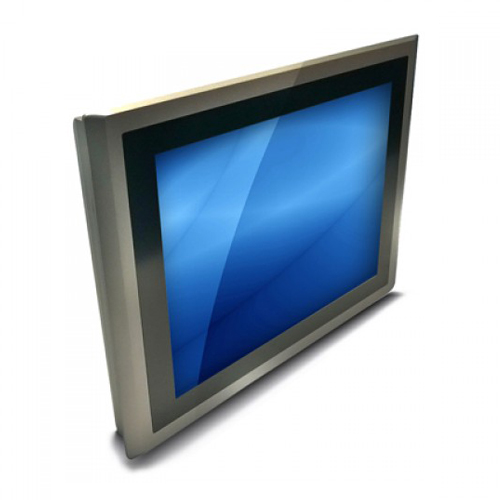

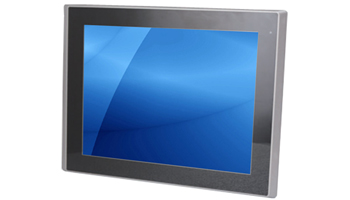

APA9120
12.1 inch 800 x 600 resistive type touchscreen monitor with VGA + DVI + HDMI + DP video input, IP66 rated flat front bezel, aluminum die-casting chassis, and 9 to 36V DC power input.
Key Features
- ✓Aluminum die-casting chassis
- ✓Features flat front bezel with IP66 design
- ✓12.1 inch 800 x 600 Resistive type touch screen monitor
- ✓Option for Projected Capacitive type touch screen
- ✓Option for 1000-nits high brightness display
- ✓VGA, DVI, HDMI, and DP input
- ✓Panel or VESA (100mm) mount ready
- ✓2.03" short depth metal rugged construction
- ✓9 to 36V DC power input w/ external AC power adapter
The APA9120 is a cost-effective 12.1 inch industrial touch screen display with an aluminum die-casting chassis and IP66 compliant front panel for industrial applications. The display supports 800 x 600 display resolution, Resistive type touch screen, and VGA / DVI / HDMI / Display Port video inputs. This monitor has panel or VESA mounting holes, allowing you to mount the monitor for various applications.
| Material | Solid aluminum die-casting chassis IP66 compliant flat front panel |
| LCD Panel | Size: 12.1" TFT LCD Max Resolution: 800 x 600 Brightness (cd/m²): 450, option for 1000-nit high brightness Contrast Ratio (typ) : 1500:1 Viewing Angle (H/V): 178° x 178° Colors: 262K MTBF (hrs): 50,000 |
| Video Input | 1 x VGA 1 X DP 1 x DVI-D (share with HDMI) 1 x HDMI (share with DVI-D) |
| Touch Screen | Resistive touch screen monitor - USB port Option for Projected Capacitive touch screen monitor - USB port |
| Rear panel control | Power on/off switch OSD membrane switch |
| Mounting Type | Panel mount or VESA (100mm) mount |

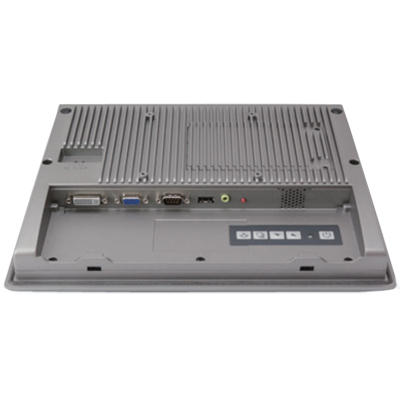

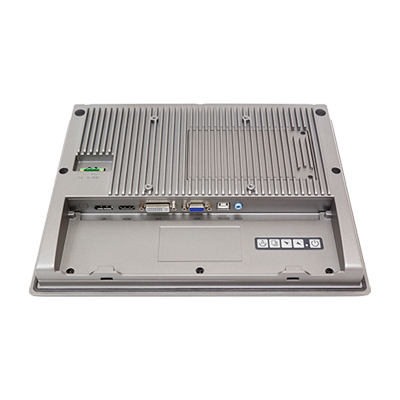

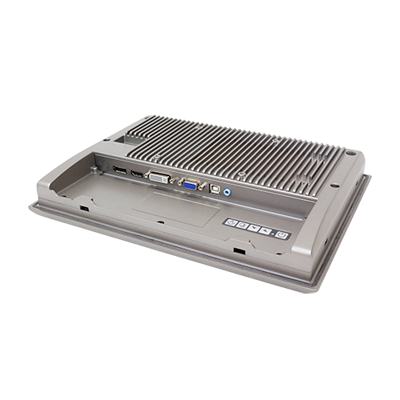

| Connectors | 1 x VGA port 1 x DVI-D port (share with HDMI) 1 x DP port 1 x HDMI port (share with DVI-D) 1 x Audio line-in phone jac 1 x USB Type B for touchscreen 1 x 3-pin terminal block DC power input Option for 1 x 2W speaker |
| Power supply | Power Input: 9~36V DC power input with external AC power adapter Power Consumption: Max. 9W |
| Environmental | Operating Temperature: 0°C to 50°C Storage Temperature: -30°C to 70°C Relative Humidity: 10~90% @ 40°C, non-condensing Option for -20°C to 60°C wide operating temperature (for standard brightness) |
| Certification | CE/FCC, Class A |
| Weight | 5.73 lb / 2.6 kg |
| Dimension | 12.56"(W) x 9.65"(H) x 2.03"(D) |
