At first glance, rack mount servers and rack mount industrial computers look similar — both slide into standard 19-inch racks. But they're designed for fundamentally different environments and workloads. Choosing the wrong one leads to reliability problems, unnecessary costs, or missing capabilities.
Rack Mount Servers
Designed for climate-controlled data centers with:
- Redundant cooling systems maintaining 18-27°C
- Clean, filtered air
- Stable, conditioned power with UPS backup
- Raised floors and controlled humidity
Optimized for: Maximum compute density, high-bandwidth networking, storage throughput, and virtualization.
Typical features:
- Hot-swappable redundant power supplies
- Hot-swappable drive bays (SAS/NVMe)
- ECC RAM with memory mirroring
- Remote management (IPMI, iLO, iDRAC)
- Multiple high-speed fans (loud — 60-80 dBA)
- 2-4 CPU sockets
Rack Mount Industrial Computers
Designed for non-data-center environments where standard servers would fail:
- Factory control rooms near production equipment
- Mobile command vehicles
- Naval vessels and military installations
- Outdoor telecom shelters
- Broadcast and production facilities
Optimized for: Environmental resilience, diverse I/O connectivity, long lifecycle, and silent or near-silent operation.
Typical features:
- Wide operating temperature (-10°C to 50°C+)
- Shock and vibration resistance
- Low acoustic noise or fanless options
- Rich I/O (serial, GPIO, isolated inputs)
- Front-accessible I/O for tight rack installations
- Single robust power supply with wide-range input
Head-to-Head Comparison
| Feature | Rack Mount Server | Rack Mount Industrial PC |
|---|---|---|
| Environment | Data center only | Factory, field, vehicle, ship |
| Temperature | 10-35°C | -10°C to 50°C+ |
| Vibration | None (raised floor) | 5-500 Hz continuous |
| Acoustic Noise | 60-80 dBA (loud) | 0-40 dBA |
| Serial Ports | 0-1 | 2-8 (RS-232/422/485) |
| Display Outputs | 1 (VGA, for setup) | 2-4 (HDMI, DP, DVI) |
| Power Input | 110/220V AC (C13/C14) | 9-36V DC or AC |
| Redundant PSU | Yes (hot-swap) | Rarely (single robust) |
| Product Lifecycle | 2-3 years | 5-7+ years |
| CPU | Server-class (Xeon) | Desktop/mobile (Core i) |
| Depth | 700-800mm (deep) | 300-500mm (shallow) |
When to Choose Each
Choose a Rack Mount Server When:
- Deploying in a proper data center or server room with cooling
- Running virtualization, databases, or heavy compute workloads
- You need redundant hot-swappable components
- Network throughput is the primary requirement (10/25/100 GbE)
Choose a Rack Mount Industrial Computer When:
- The rack is in a non-climate-controlled location
- You need serial, GPIO, or other industrial I/O
- Noise must be minimized (broadcast, medical, or operator-adjacent)
- The system must survive vibration or shock
- You need long product lifecycle (5+ years without hardware changes)
- The system drives multiple displays for operator or control room use

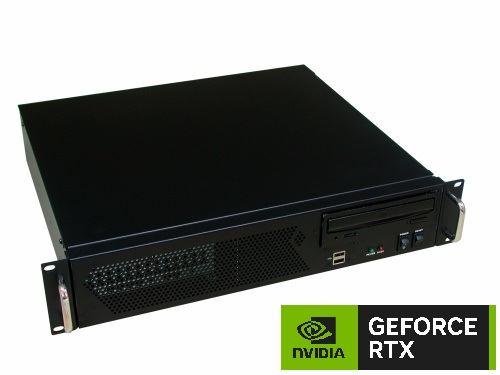

Acnodes Corporation manufactures rack mount industrial computers from 1U to 4U in short and standard depths. Contact us for configuration assistance or request a quote.
